Customized Wooden Furniture Processing Cutting CNC Router Machine Center

Dekcel cnc 4 spindles wooden processing and cutting router is Cost -Effective woodworking CNC Router,specially for customized furniture produce and processing. It has 4 spindles and can change the spindles automatically.Some tools are used for carving, and some are used for cutting. Compared with the automatic tool changer, it's cheaper, and the efficiency is higher than the manual tool changer.

Quantity:
  • DEK-1325-S4
  • DEKCEL CNC
  • 146

Customized Wooden Furniture Processing Cutting CNC Router Machine Center
Wooden Furniture Processing Cutting CNC Router.jpg

Customized Furniture Processing CNC Router Features

1.Machine with 4 spindles, alternating work, equivalent to a simple automatic tool change. Some tools are used for carving, and some are used for cutting. Compared with the automatic tool changer, it's cheaper, and the efficiency is higher than the manual tool changer.
2. This style is equipment with 2-4 kinds of cutters, there is no need to change the cutters when engraving or cutting. The program can work automatically. The advantage is low investment. High profit, low maintenance, easy to operate. It is also very easy for new user to operate.
3. Advanced control system can multiply level of 3D work automatically. It is very convenient, and can finish the 3D work fast and smoothly.
4. The whole machine is welded with thick seamless steel structure, the stability is good, not easy to be deformed. The machine adopts gantry movement, it can process any kinds of materials freely.
5. Adopt important linear square orbit, two line sliding track, heavy loading, stable working, high precision and long lifetime. Adopt imported ballscrew, high precision.
6. Well compatibility: CAD/CAM designing software e.g.TYPE3/Artcam/Castmate/ Wentai etc.
7.This model is suitable for processing any kinds of materials in bulk.

Technical Parameter of Customized Wooden Furniture Cutting Router Machine

Model

DEK1325-S4

XY Working size

1300*2500mm

Z feed Height

200mm ( can be customized according your request )

Frame:

 Heavy duty Steel structure

Table Surface

Vacuum working Table

X, Y Structure:

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure:

Hiwin Rail Linear Bearings and TBI Ball Screw

Max. Power Consumption:

(Without   spindle)  3.0Kw

Max. Rapid Travel Rate:

33000mm/min

Max. Working Speed:

25000mm/min

Spindle Power:

3.0 / 4.5 KW air cooling

Spindle Speed:

0-18000RPM

Drive Motors:

Japan YASKAWA Servo motor and driver ( Stepper Optional)

Working Voltage:

 AC380V/50/60Hz,3PH   (Option: 220V)

Command Language:

G code

Operating System:

Taiwan Syntec  (options: Ncstudio,DSP A15)

X,Y,Z repositioning Accuracy:

±0.01mm

X,Y Resolution

 <0.01mm

Software Compatibility:

Type3/ UcancameV9 software, (Option: Artcam software)

Running Environment  Temperature:

0 degree - 45   degree

Relative Humidity:

30% - 75%

Guarantee

One year





Optional Parts

Air cooling spindle or Water cooling spindle

Dust collector

Vacuum Pump

Rotary system

Mist-cooling system

Yaskawa/ Panasonic Servo motors

Position Cylinders

Details Show of Wooden Furniture Processing & Cutting Router

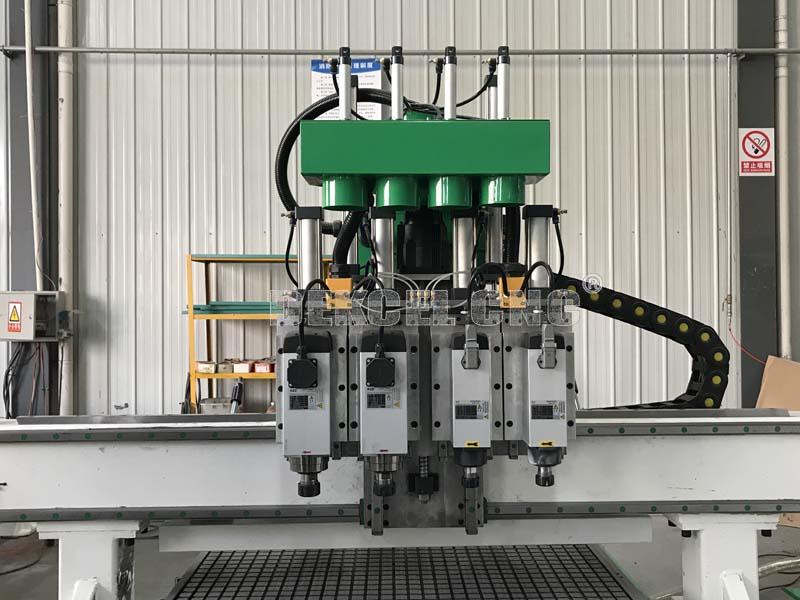

4.5KW HQD spindles for wooden furniture processing router

4.5KW HQD spindles for wooden furniture processing router.jpg

Taiwan Syntec control system for customized wooden furniture processing center

Taiwan Syntec control system for customized wooden furniture processing center.jpg

Vacuum table for furniture wooden palte

vacuum table for furniture wooden palte.jpg

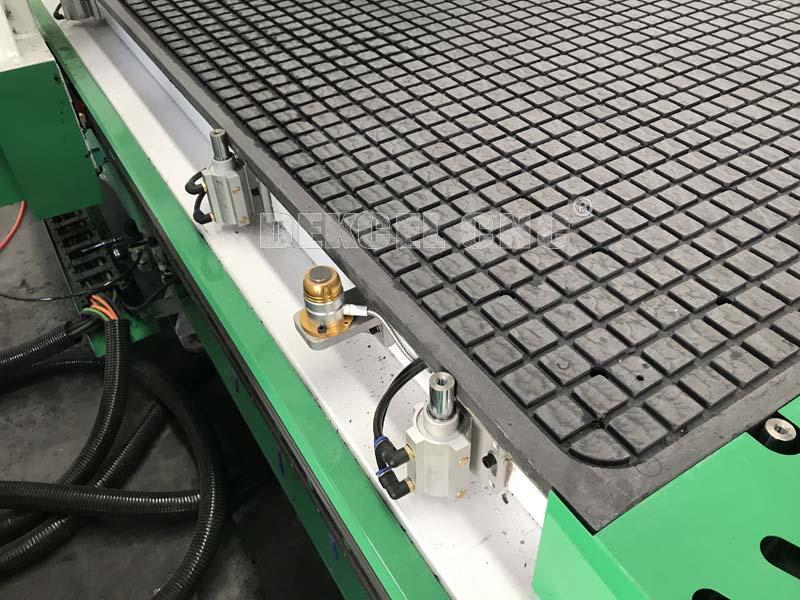

Positioning cylinder and tool senser for wooden processing router

positioning cylinder and tool senser for wooden processing router.jpg

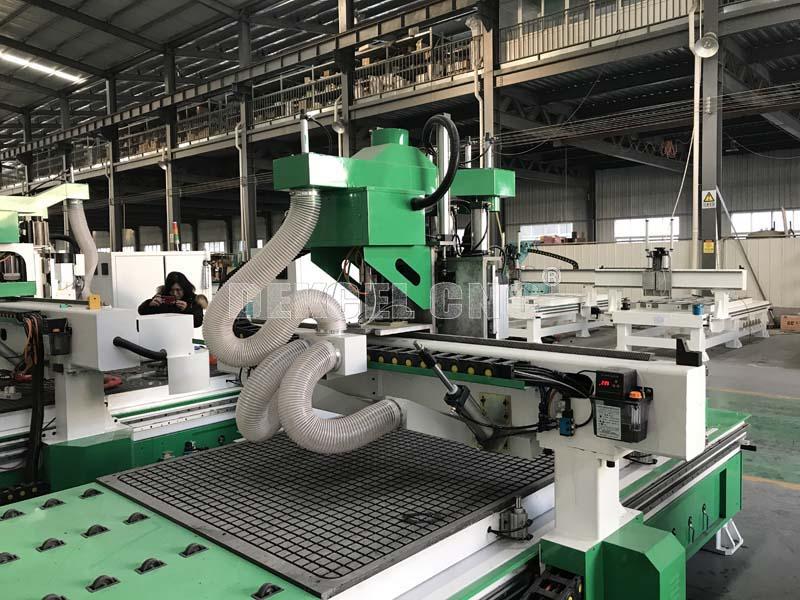

Auto unloading system for wooden plate processing and unloading

auto unloading system for wooden plate processing and unloading.jpg

Slide wheel convenience for wooden plate loading

slide wheel convenience for wooden plate loading.jpg

Main Applications of woodworking Furniture Cutting Router :

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

cusmomized wooden furniturte cnc router machine sample.jpg
