ATC Wood Plate Customized Furniture Production Line Cutting Drilling Router

Name: ATC Wood Plate Customized Furniture Production Line Cutting Drilling Router
Brand: DEKCELCNC
Rating: 5.0 (60 reviews)

DEKCEL ATC customized furniture production line router machine is suit for diverse complexity products processing such as wood engraving ,MDF milling, hole drilling, plate board cutting, furniture board side milling and so on.This ATC furniture production cnc router machine is widely used in wood door,cabinet door,desk,gate and other kinds of panel furniture .

Availability:

Quantity:



Inquire

Model:
DEK-1325-ATC
Brand:
DEKCELCNC
Code:
119

Product Description

ATC Wood Plate Customized Furniture Production Line Cutting Drilling Router

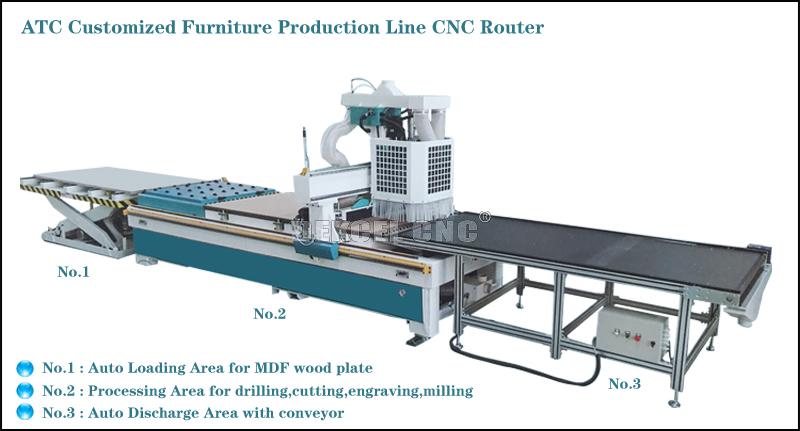

ATC customized wood plate furniture production line router

Advantage of ATC Wood Furniture Cutting Router

1. DEKCEL ATC wood cutting cnc router production line is for furniture cabinet cutting and drilling.

2. Furniture production line is with perfect function: automatic loading and unloading function, vertically drilling, slot, cutting, engraving.

3. Saving time and labor, materials, replace traditional CAD draftman, splitting men, cutting men, only need 8 minutes to input size & design & split. Automatic layout optimization, improve material utilization

4. High quality, automatic design. automatic typesetting, auto labeling.no human intervention, minimizing error rate, ensure the quality of the order.

Features of Customized Furniture production Router

1.Italy HSD air cooling spindle----powerful in cutting & engraving.

2. Dekcel intelligent cutting system----support offline operation,use Richauto hand controller,with 512M memory;even there is sudden electricity stop,you needn't reset from beginning.

3. HIWIN linear rail 25# from Taiwan for 3 axis----smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.

4. Vacuum & T-slot combined worktable----can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF board for protection.

5. Helical/oblique rack and gear transmission----ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.

6. Japan Yaskawa servo motor----Z axis is with band brake protection,stable and powerful. Taiwan DELTA servo for option.

Technical Parameters of ATC Wood Cutting CNC Router Production Line

Model	DEK-1325-ATC Furniture Cutting & Drilling Router
Working travel	13002500200mm
Table structure	vacuum table
Guide rail	All Taiwan HIWIN/PMI square guide rail 25
XY axis transmission	Helical rack&pinion transmission
Z axis	Taiwan TBI ballscrew transmission
Working precision	±0.02mm
Repositioning precision	±0.03mm
Max air move speed	500000mm/min
Max working speed	150000mm/min
Controlling system	SYNTEC Intelligent Cutting System
Spindle	Imported Italy 9.0KW HSD ATC air cooled spindle
Spindle power	9.0kw
Spindle rotating speed	0-24000rpm
CNC boring head	5+4 HSD vertical drilling unit
Inverter	11kw Sunfar inverter(Delta optional)
Driving system	750w Japan YASKAWA servo motor with Shimpo reducer
Command	G code
Oiling system	Automatic
Working voltage	AC 380v/3phase
Function	Automatic loading and unloading device,automatic label function
Dust collector	2 units of double bags dust collector
Vacuum pump	Double 7.5kw air vacuum pump

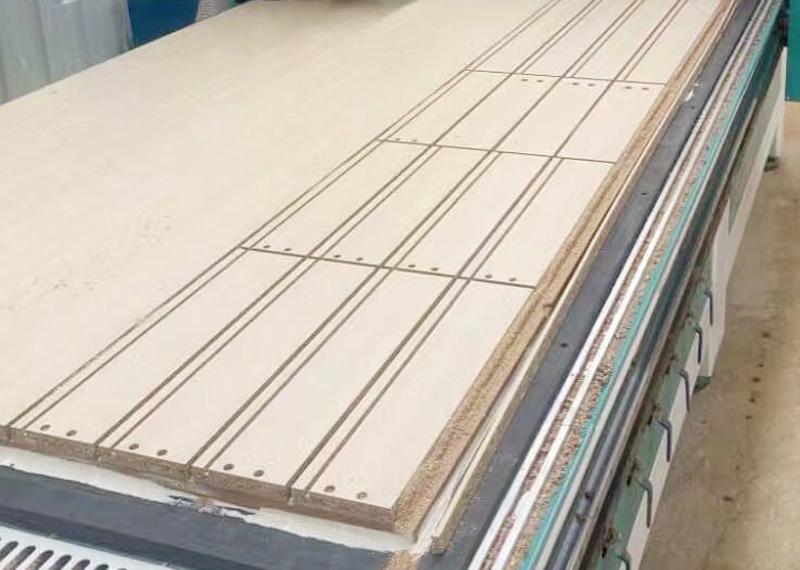

Applications of ATC Customized Furniture Production Line CNC Router
furniture production cnc router processing.jpg

Furniture : panel furniture, cabinet, sliding door, soft pack board, wooden door, office furnitur
Woodworking Industry : voice box, game cabinet, computer desk, sewing table, instrument

Panel Processing : insulating material, plastic, PCB, train inner structure, bowling track, compact-panel ,epoxy resin, ABS,PP,PE etc

Decorating Industry : acrylic, PVC,MDF board, organic glass, plastic, aluminum/copper soft sheet metal ornamental milling cutting processing

Guarantee and after-sale service

1. One years guarantee for whole machine,six months for spindle

2. 24 hours technical support by e-mail, calling or door-to-door service.

3. English software, user manual

4. Free training on our plant

5. Long time freely technical support

6. Engineer also available to service machinery overseas
