DEK-1325LC
DEKCEL
20190417
1000w Fiber Laser Machine With Reci CO2 150W Model
Metal and Nonmetal Fiber Laser Cutting Machine configuration:

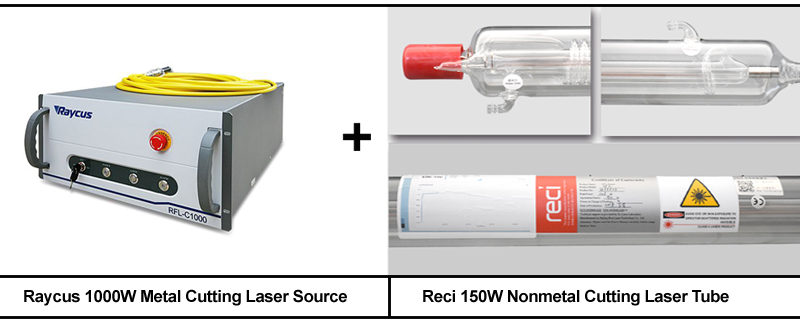

# 500W/1000W Raycus fiber generator
# Beijing 150W Reci laser tube

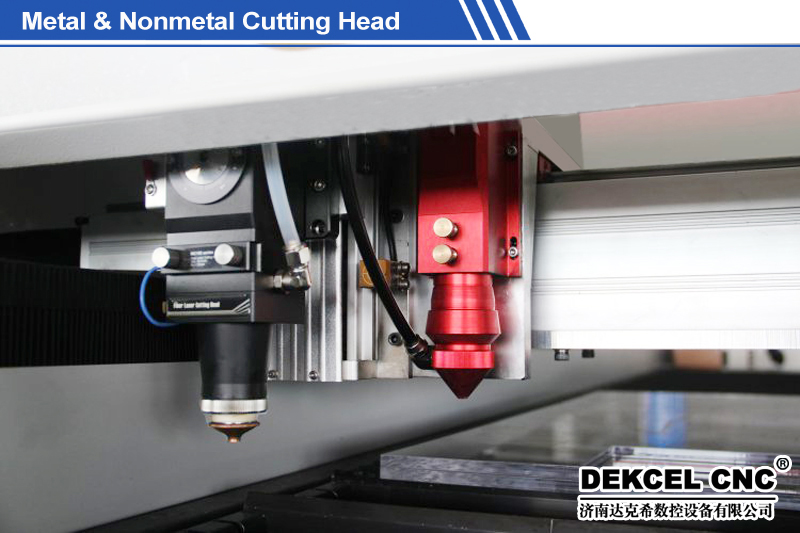

# High closed laser cutting head
# Working area 1300*2500mm
# Delta Servo motor and drivers from Taiwan
# Taiwan Hiwin Rails
# Following and automatic adjust focus from China
# Gear & Rack transmission system (ensure high accuracy)
# Constant temperature water chiller cooling system
# Control system with software
# Format: support many kinds of files, like DXF, DXP, NG, G,etc
# Warranty:2 years for whole machine( except for consumable parts)
Fiber and co2 laser cutting machine for metal and non-metal features
1, The world advanced technology, can cut metal and non-metal materials at the same time.
2, Equipped with co2 laser tube, can achieve a multi-purpose machine to help customers expand production.
3, Install with the world's leading laser source and laser head brands,which have more stable performance.
4, Precision guide rail system and imported servo motor, higher configuration.
5, New generation of body manufacturing process, the machine has a longer lifetime.
6, New aviation aluminum beam, weight lighter, the speeds up to 2 times faster.
Technician parameter of Fiber Laser Cutter with CO2 150W
Machine model | DEK-1325LC |
Working area | 1300*2500mm |
Laser power | 500W/1000W Raycus laser generator Co2 Reci 150W laser tube |
Cutting thickness | 0-20mm material |
Positioning accuracy | ±0.02mm |
Max.Running Speed | 30m/min |
Operating temperature | 0℃-40℃ |
Transmission | Imported TBI ball screw |
Specified voltage and frequency | 380V, 50Hz-60Hz |
The advantage compared with co2 laser cutting machine
1,Saving cost for customer.
2,Eliminating the requirement to purchase two sets machine.
3,Power saving more than 30%,
4,Saving more than 50% space, higher production efficiency.

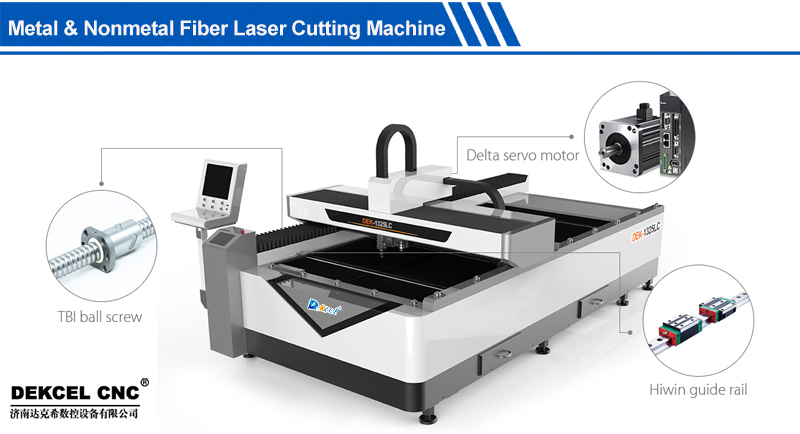

Transmission and accuracy
The fiber laser cutting machine is equipped with imported TBI ball screw, Delta servo motor. The positioning accuracy of the machine is up to 0.02mm, which guarantees the good cutting quality of metal and non-metal materials.
Industry application
Due to the versatility of DEK-1325LC, it can play an important role in thin metal sheet cutting and processing non-metal materials such as wood,acrylic and leather. This machine is the best choice for industries that require both metall and non-metal materials. Widely used in advertising, stainless steel kitchen utensils, sheet metal etc industry.
Mixed co2 and fiber laser cutting machine installation requirements
1,When the laser is installed and lifted, its inclination angle of the laser is less than 5 degree.
2,The distance from Laser to the surrounding objects at least 1.5 meters, the distance to the roof can be allowed to 1 meter.
3,Working environment temperature and humidity: Working environment temperature 25℃±2℃, small temperature fluctuation; Environmental humidity is less than 75%, no condensation. Recommendation: if the customer environment is relatively poor, the laser must be independent of the room, installed air conditioning.
4,The foundation must be flat and roughness is less than 6mm, its load capacity is greater than 1500kg.
5,Nearby there is no equipment produced a larger vibration of the, that is, the laser can not be installed on the vibration of the ground.
6,Power requirements: Grid power supply requirements: 380±10％，50Hz，three phase, neutral is grounded; Voltage Regulator Output: 380±2ï¼…, 50Hz, three phase, neutral is grounded 50KVA.
