20000w CNC Metal Fiber Laser Cutter Machine
Characteristics of 20000w metal fiber laser cutting machine
Identical cutting quality on any cutting point is realized through fiber transmission.
The rapid cutting speed is two times higher than that of CO2 laser machine.Its use-cost is low.
3.Low Consumption of Gas
Laser cutting does not make any gas because of the specific cutting technology on steel plate.
4.Low Consumption of Energy
It is environment-protecting and energy-saving.Its power consumption is reduced by 20%-30% compared with that of CO2 laser machine.
Reflecting lens is not needed for fiber transmission.Much time is saved when optical path is adjusted.It is maintenance-free.
Why use CNC Fiber Cutting Solution ?
(1) Fiber laser cutting machine for metal precise cutting powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.
(4) Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.
Technical parameter of China fiber laser cutting machine for metal

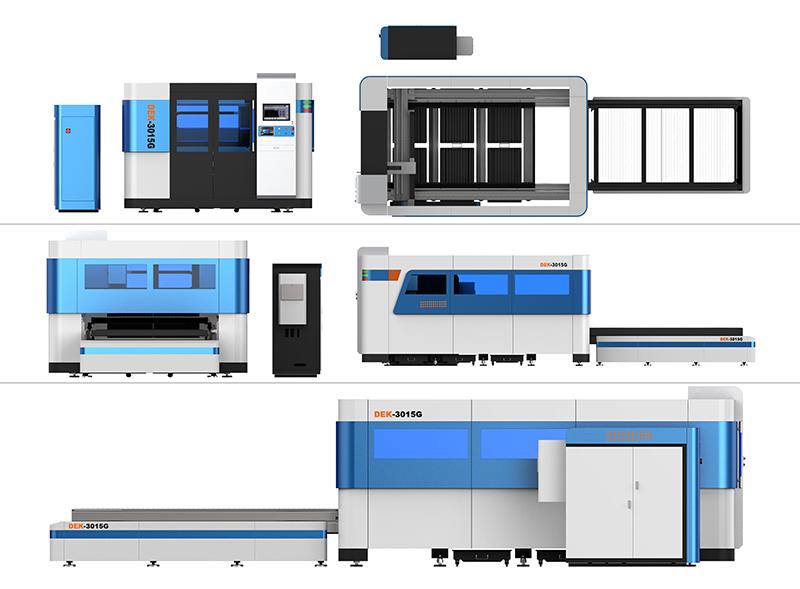

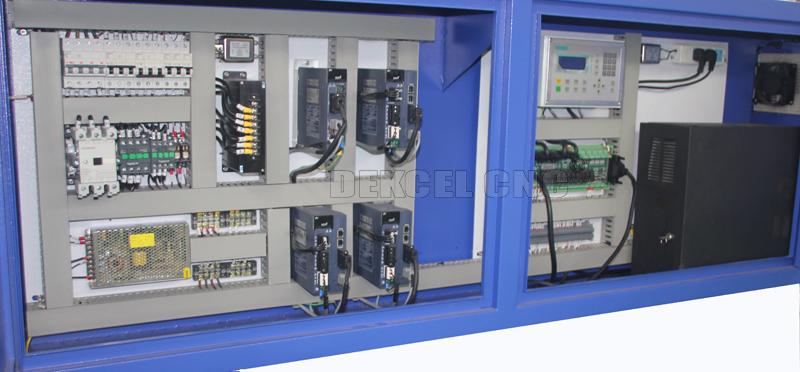

The detail parts of 20000w fiber laser cutting machine for metal
| Model || DEK-3015G |

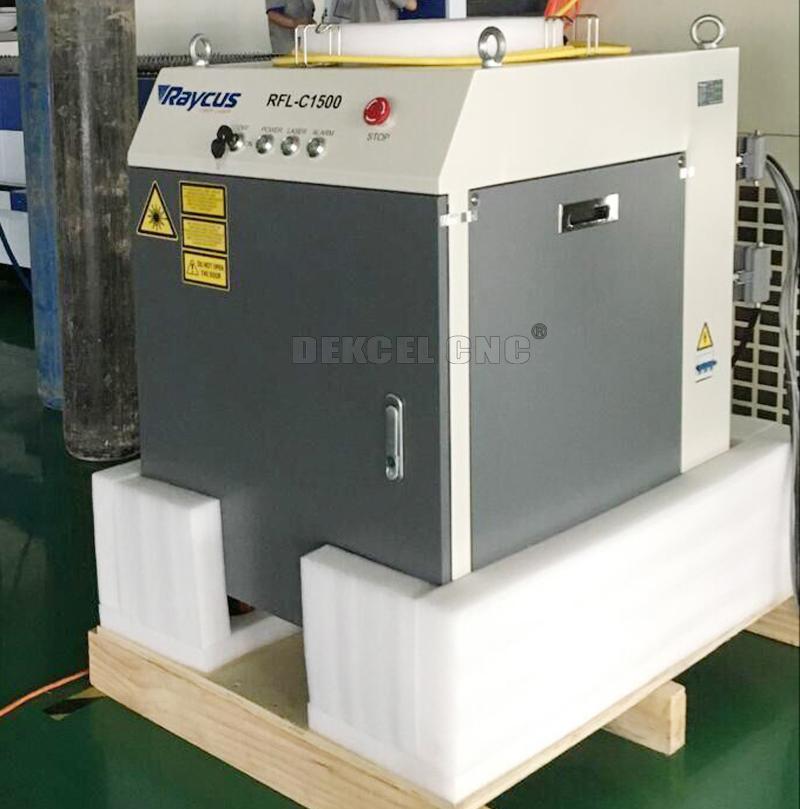

| Laser Power || Raycus fiber from1000w to 20000w |
| Machine Transmission System || |

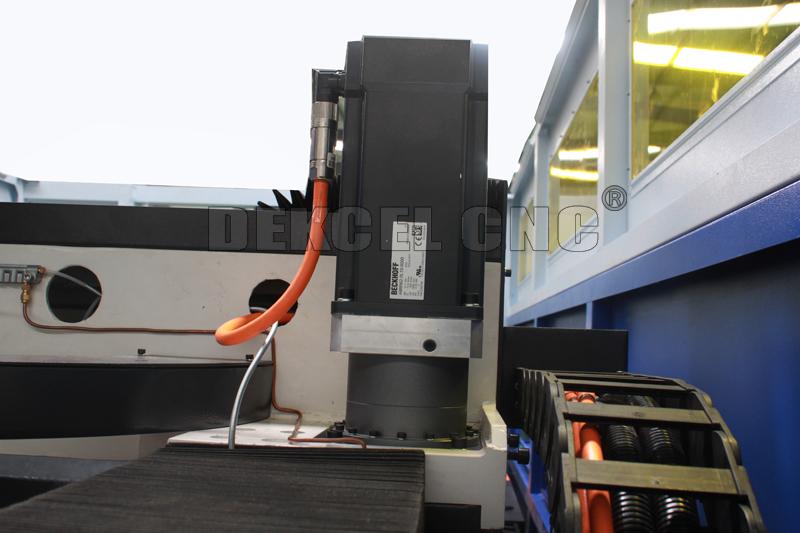

*Japan strong power YASKAWA full closed loop every 0.1mm step under control
*TBI high accuracy ball screw-0.01mm accuracy in moving process--mini circle cutting best

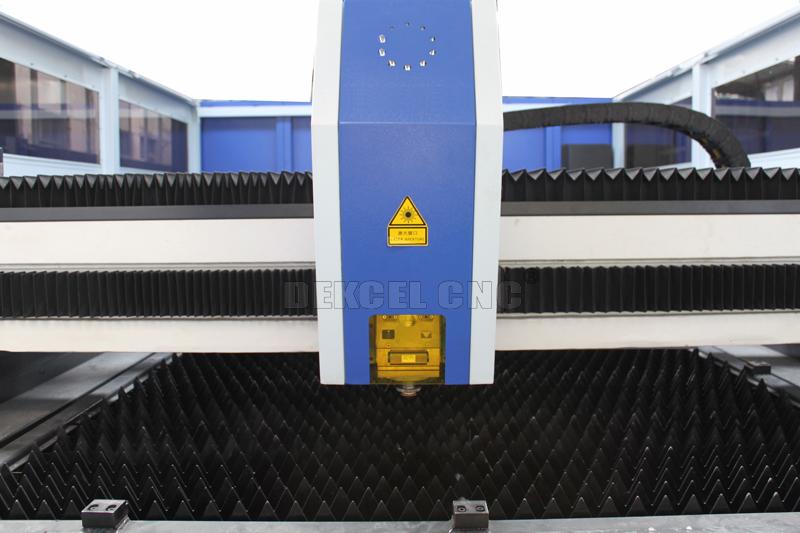

| Optics System || |
* LASER MECH/ German PRECITEC -0.01second adjust time--0.01mm different point will ask head to adjust to best point cutting
*Dynamic focus - even min wave keep same top level cutting result
*Nozzle diameter from 1.5mm-2.5mm for different kerf cutting inquiry
| Cutting thickness || |
Carbon steel 1-100mm
Stainless Steel 1-80mm

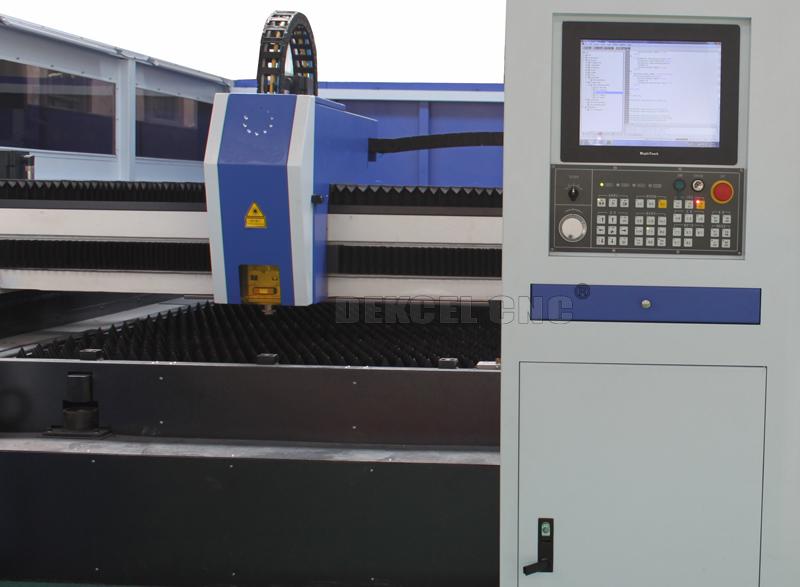

| Controlling Software ||CypCut |
| Software Support || |
*AutoCad file import directly without size change and modify
*Nesting software to make material in max cutting use
*Optimal Track Intelligent Adjusting
shortest path least time save gas cost and cutting time
| Assistant Gas || |
* Air,nitrogen,oxygen freely change system
* Less gas cost control under different cutting thickness
| Cutting speed || 0-60m/min |
| Position Accuracy || 0.03mm |

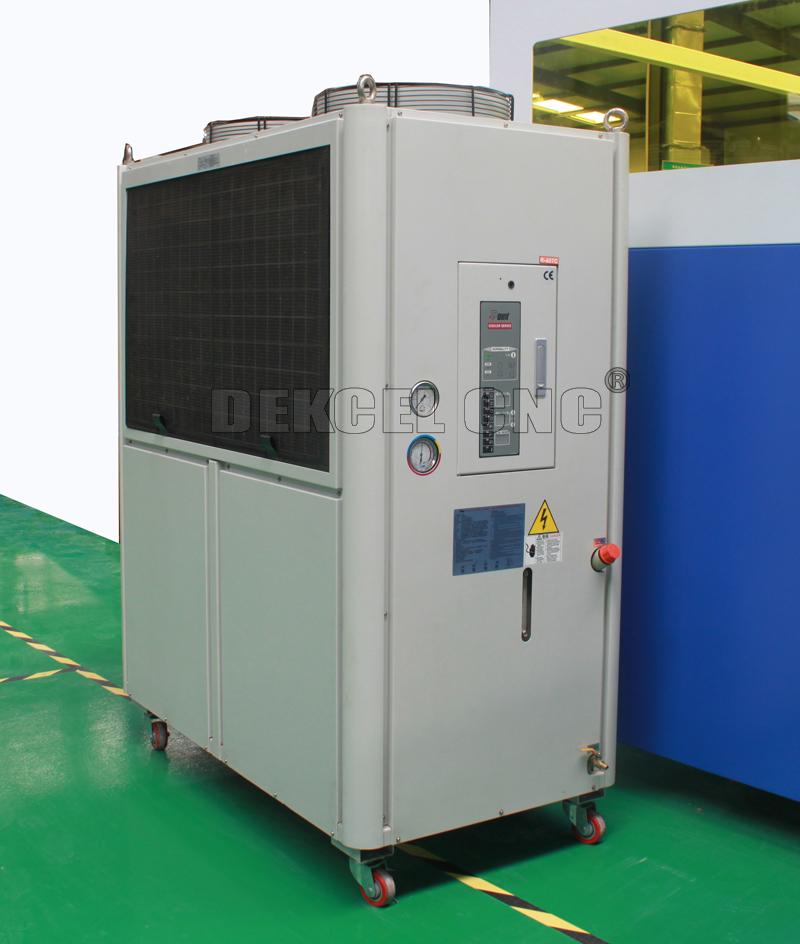

| Water Cooling System || Dual temperature dual control water chiller with purification system |
| Driving Mode || Double ball screw driving / Double gear rack driving |

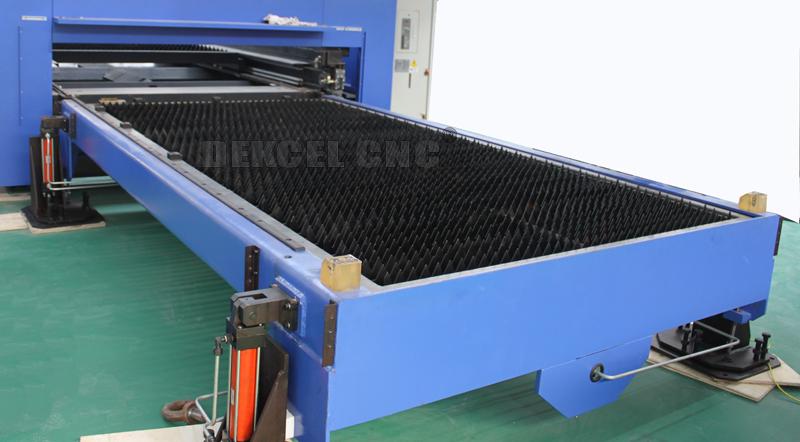

| Working Table Structure || Fixed Working Table / Pallet Changer |
Application Industry of china 20000w metal fiber laser cutting machine
It is applicable to sheet metals, elevator,kitchenware,elevator,fitness equipment,agricultural and forest machinery,food machinery,hardware, advertising, decoration, gifts, lighting lamps, medical instruments etc.
Professional used to cut sheet metal, in a variety of high quality carbon steel sheet, stainless steel plate , aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal materials.

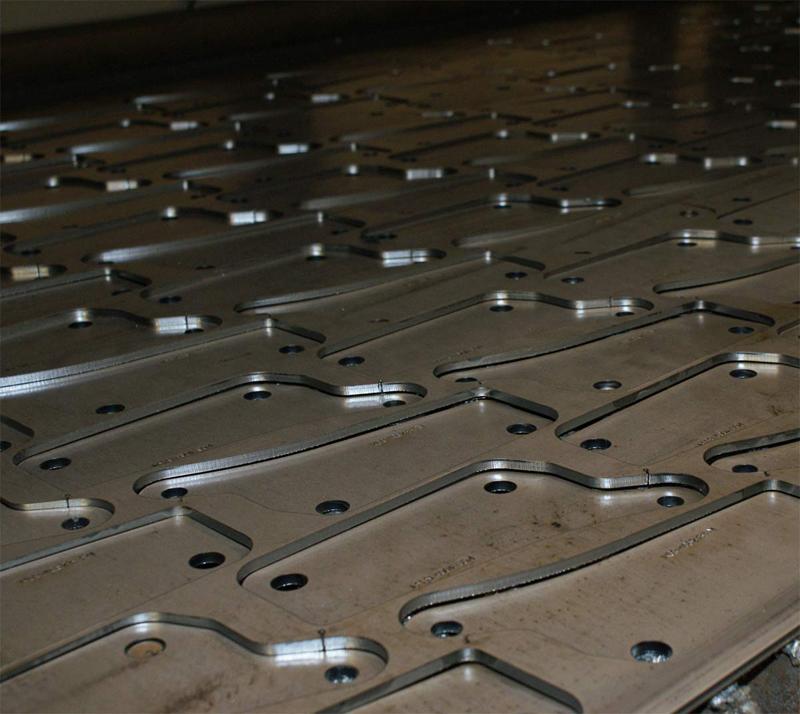

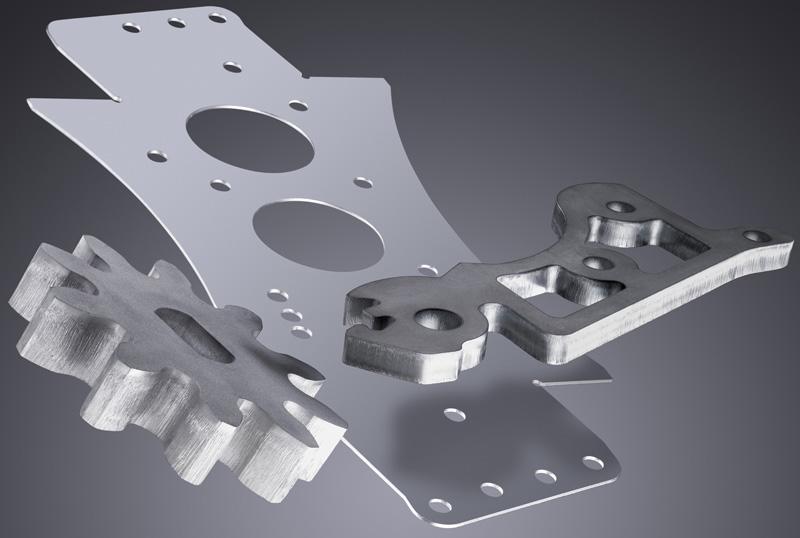

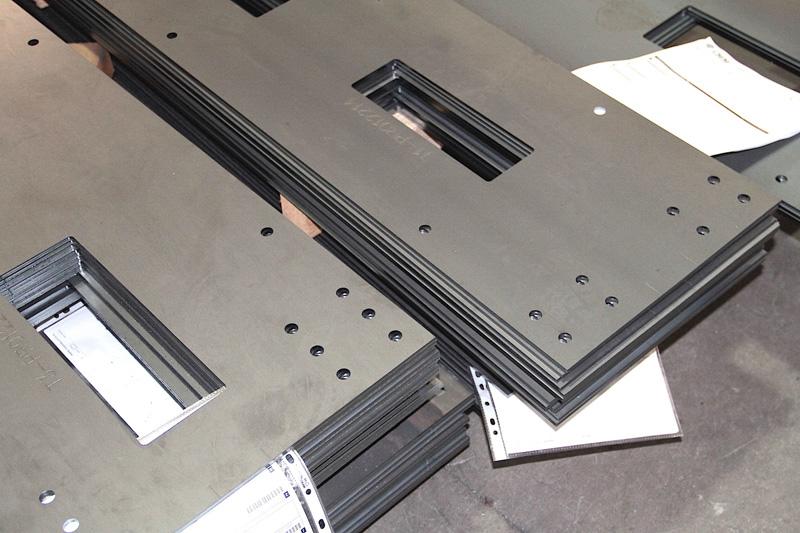

Fiber metal laser cutting machine samples
