DEK-1530F / DEK-2040F
DEKCEL CNC
017
12000W CNC Metal Fiber Laser Cutter Machine
How fiber laser cutting machine work ?
12000w fiber laser cutter machine is a technology that uses laser to cut metal materials, it is typically used for industrial manufacturing applications, but it also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics. The laser optics and CNC (computer numerical control) are used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas,leaving an edge with a high-quality surface finish. Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.
What are the advantages of our 12000w fiber laser cutter machine?
| 1 | Cut mild steel, carbon steel and aluminum |
| 2 | Automatical Nozzle |
| 3 | 12000W fiber laser (1000w, 3000w, 6000w, 12000w, 20000w are available) |
| 4 | Compact size and easy for integration |
| 5 | High beam quality and high power density |
| 6 | Flexible fiber beam delivery system |
| 7 | Non-stop productivity |
| 8 | High-speed shuttle table maximize productivity |
| 9 | Increased cutting range |
Technical parameter of fiber 12000w fiber laser cutting machine
| Model | DEK-1325F | DEK-1530F | DEK-2040F | DEK-2060F |
| Laser Power | Frome Raycus fiber laser 1000w to 20000w | |||
| Machine Transmission System | *Japan strong power YASKAWA full closed loop every 0.1mm step under control *TBI high accuracy ball screw-0.01mm accuracy in moving process--mini circle cutting best | |||
| Optics System | *Dynamic focus - even min wave keep same top level cutting result *Nozzle diameter from 1.5mm-2.5mm for different kerf cutting inquiry | |||
| Cutting thickness | Carbon steel 1-100mm Stainless Steel 1-80mm Aluminium 1-50mm | |||
| Controlling Software | CypCut | |||
| Software Support | *AutoCad file import directly without size change and modify *Nesting software to make material in max cutting use *Optimal Track Intelligent Adjusting shortest path least time save gas cost and cutting time | |||
| Assistant Gas | * Air,nitrogen,oxygen freely change system * Less gas cost control under different cutting thickness | |||
| Cutting speed | 0-60m/min | |||
| Position Accuracy | 0.03mm | |||
| Water Cooling System | Dual temperature dual control water chiller with purification system | |||
| Driving Mode | Double ball screw driving / Double gear rack driving | |||
| Working Table Structure | Fixed Working Table / Pallet Changer | |||

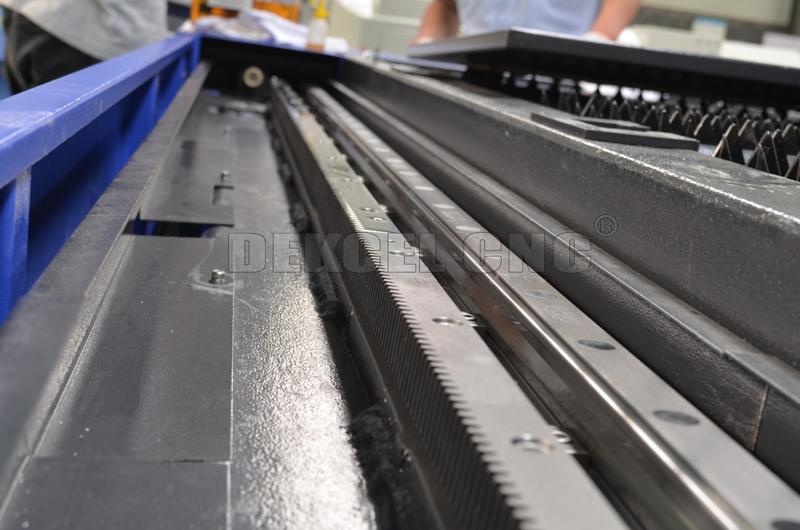

12000 fiber metal cutter machine guide rails

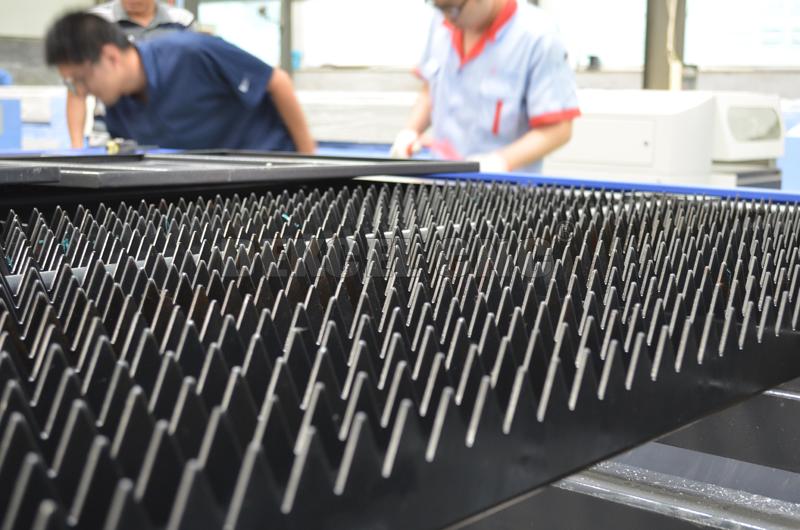

Fiber metal laser cutter machine Blade tabe

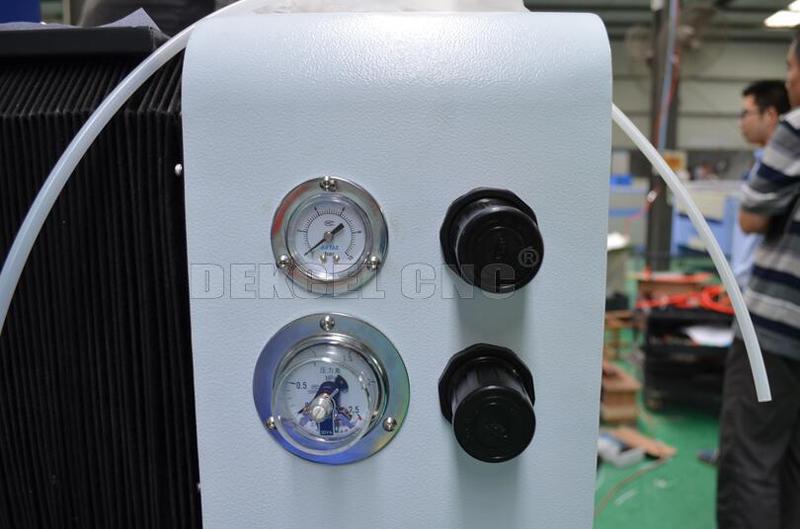

CNC fiber laser cutting machine Pressure gauge

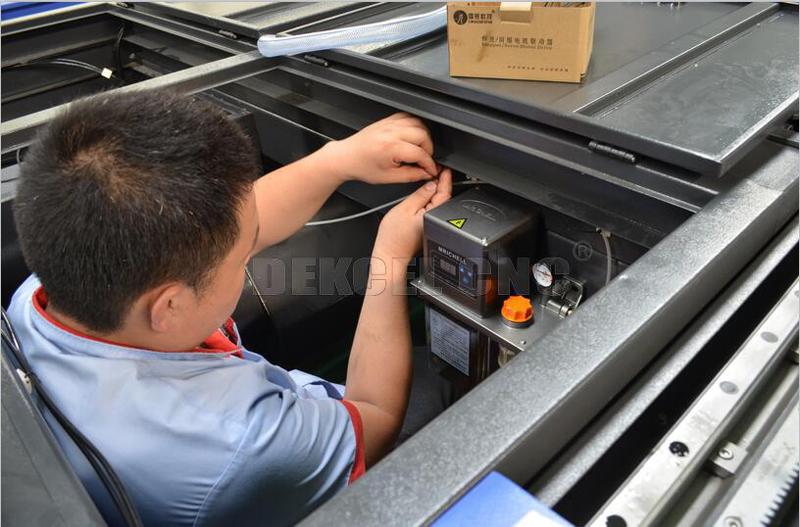

Fiber laser cutting machine Oiling system
fiber laser cutting machine servo motor

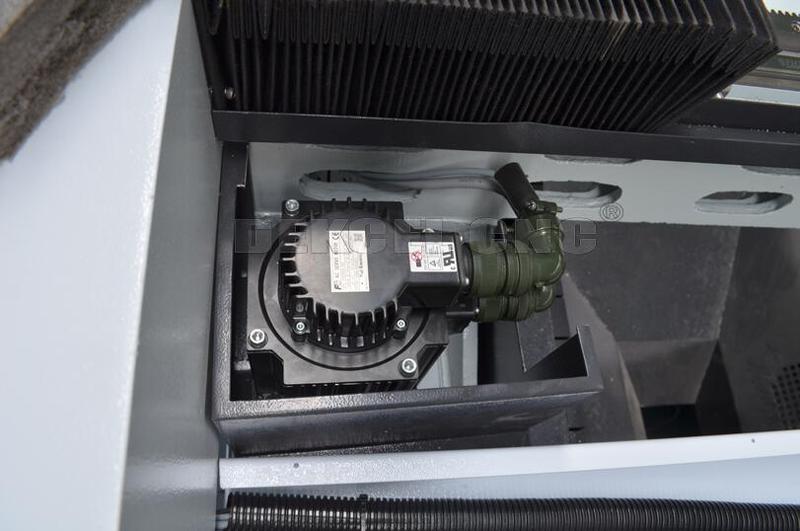

Motor of fiber laser cutting machine

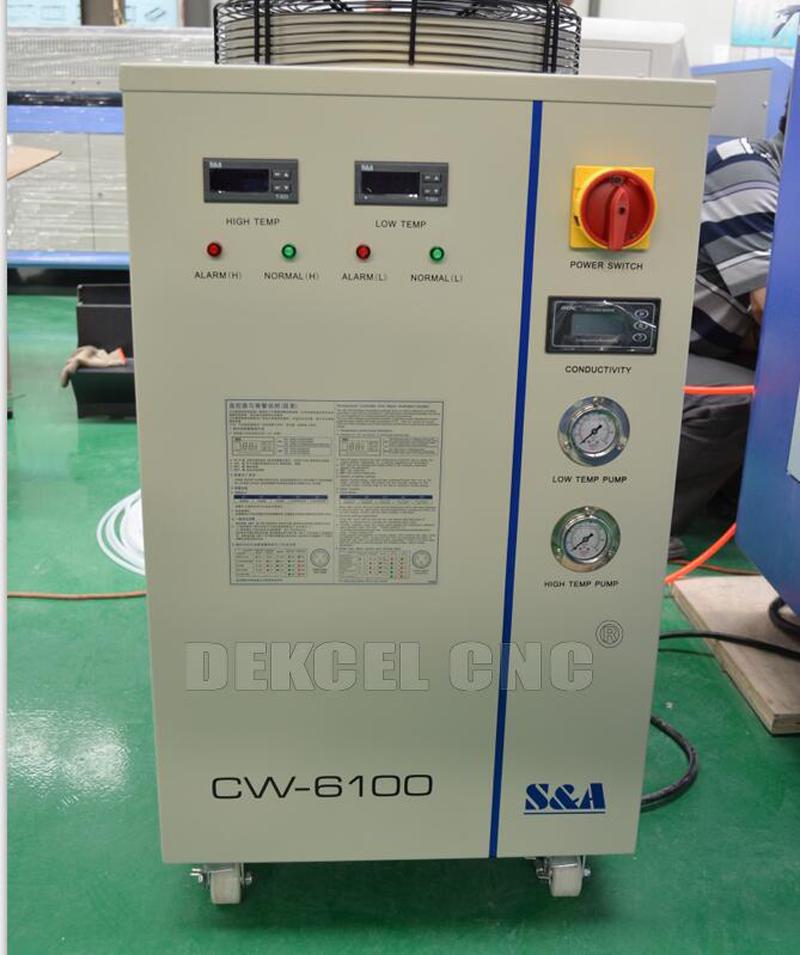

Fiber laser cutting machine water chiller
Fiber laser cutting machine packing
