Affordable metal fiber laser cutter machine advanage
1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal
Characteristics of metal fiber laser cutter machine
Identical cutting quality on any cutting point is realized through fiber transmission.
The rapid cutting speed is two times higher than that of CO2 laser machine.Its use-cost is low.
3.Low Consumption of Gas
Laser cutting does not make any gas because of the specific cutting technology on steel plate.
4.Low Consumption of Energy
It is environment-protecting and energy-saving.Its power consumption is reduced by 20%-30% compared with that of CO2 laser machine.
Reflecting lens is not needed for fiber transmission.Much time is saved when optical path is adjusted.It is maintenance-free.
Technical parameter of stainless steel metal laser cutter machine
| Model ||DEK-1325F |
| Laser Power || Raycus 300w/500w |
| Machine Transmission System || |

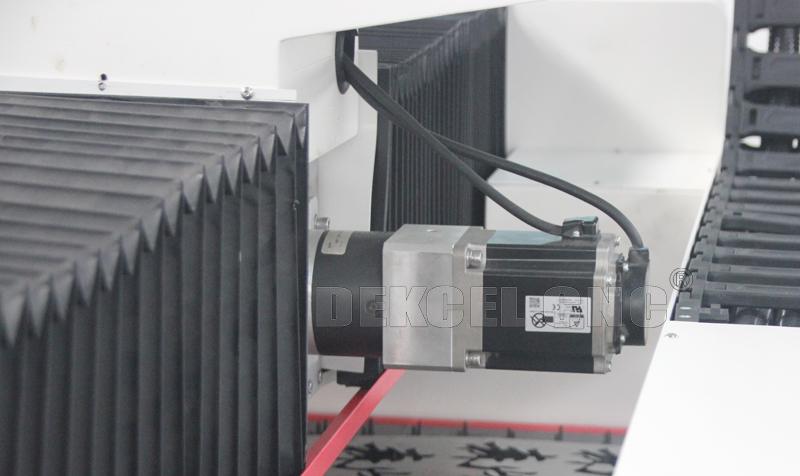

*Japan strong power YASKAWA full closed loop every 0.1mm step under control
*TBI high accuracy ball screw-0.01mm accuracy in moving process--mini circle cutting best
| Optics System || |
*Dynamic focus - even min wave keep same top level cutting result
*Nozzle diameter from 1.5mm-2.5mm for different kerf cutting inquiry
| Cutting thickness || |
Carbon steel 1-100mm
Stainless Steel 1-80mm

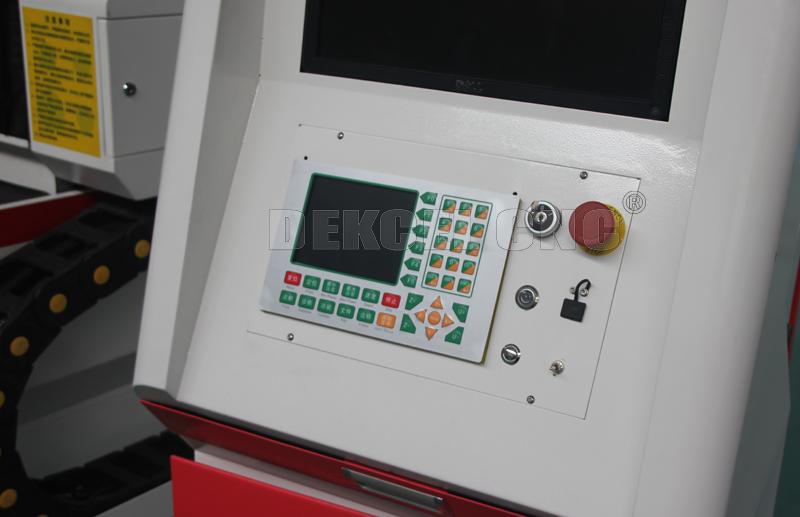

| Controlling Software ||CypCut |
| Software Support || |
*AutoCad file import directly without size change and modify
*Nesting software to make material in max cutting use
*Optimal Track Intelligent Adjusting
shortest path least time save gas cost and cutting time
| Assistant Gas || |
* Air,nitrogen,oxygen freely change system
* Less gas cost control under different cutting thickness
| Cutting speed || 0-60m/min |
| Position Accuracy || 0.03mm |
| Water Cooling System || Dual temperature dual control water chiller with purification system |
| Driving Mode || Double ball screw driving / Double gear rack driving |
| Working Table Structure || Fixed Working Table / Pallet Changer |

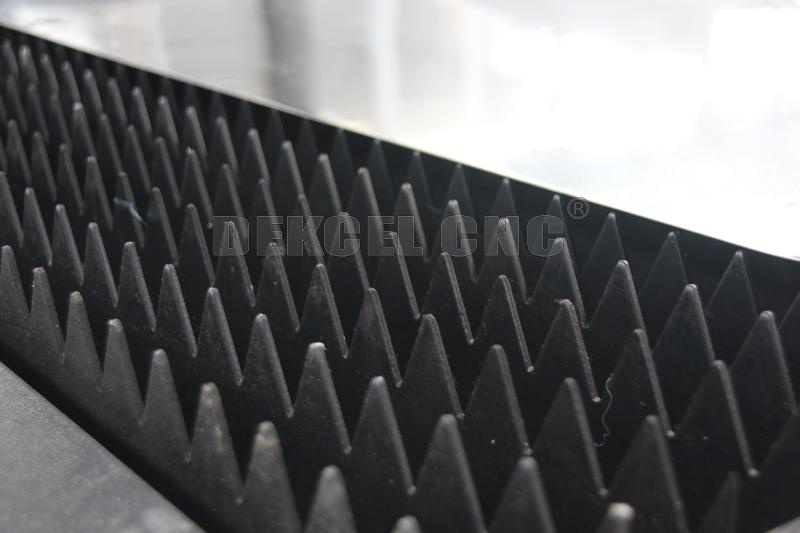

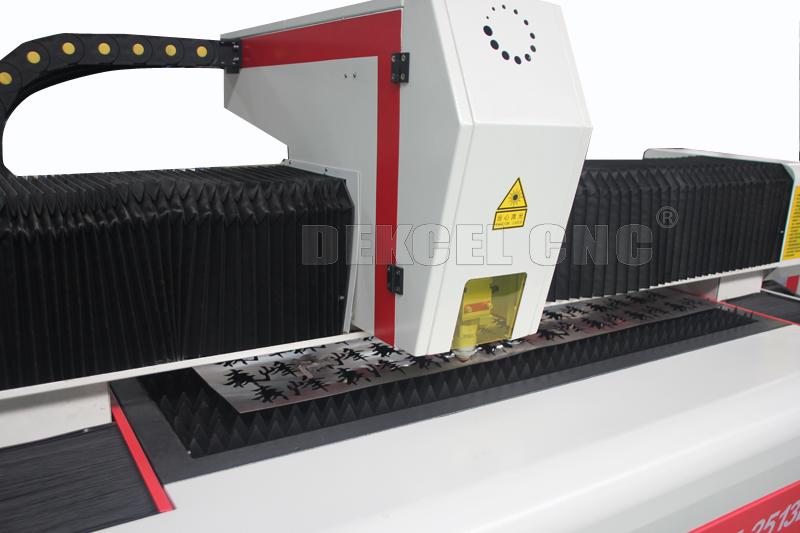

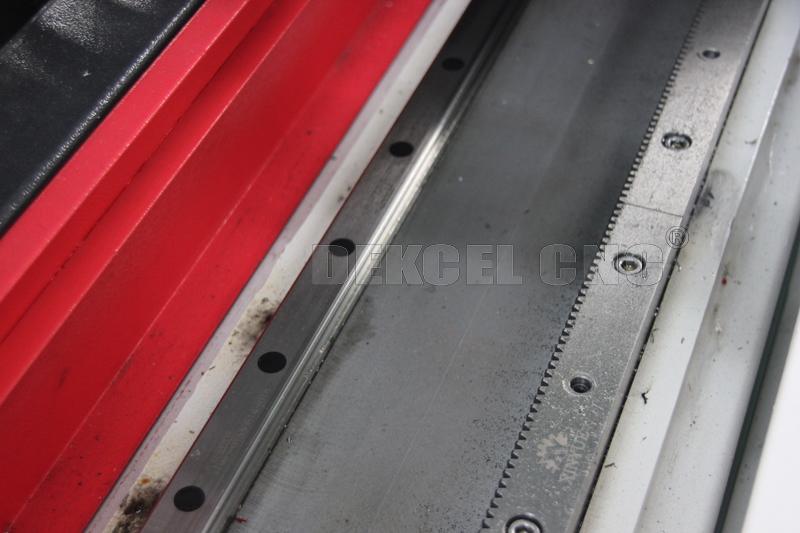

The detail parts of metal laser cutter machine
Application Industry of fiber metal laser cutter machine
Fiber laser cutter machine is applicable to sheet metals, elevator,kitchenware,elevator,fitness equipment,agricultural and forest machinery,food machinery,hardware, advertising, decoration, gifts, lighting lamps, medical instruments etc.

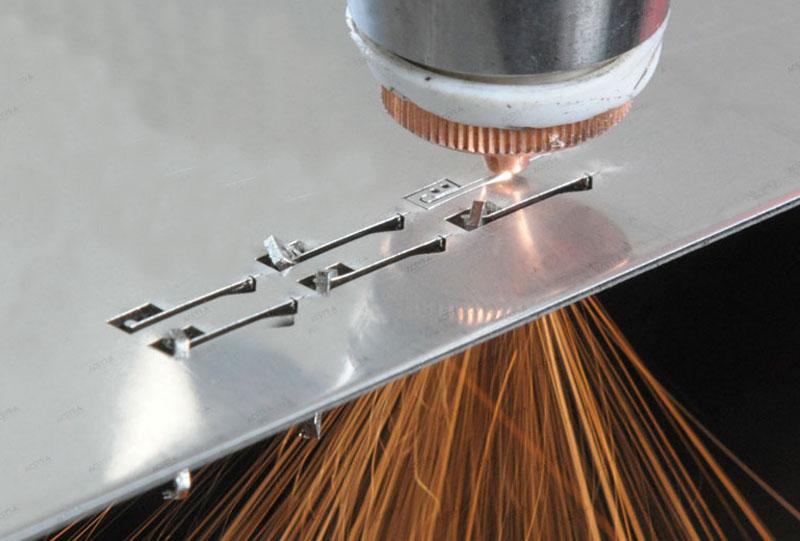

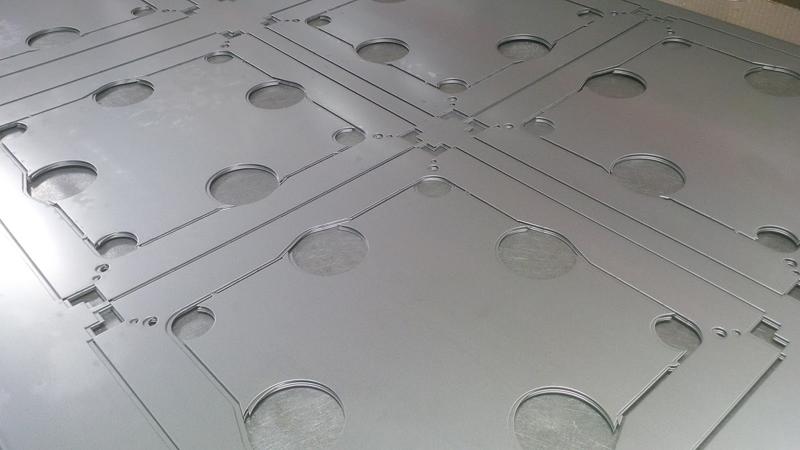

Professional used to cut sheet metal, in a variety of high quality carbon steel sheet, stainless steel plate , aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal materials.
