Stong and marble cnc router carving machine

Standard configuration of stone cnc router carving machine

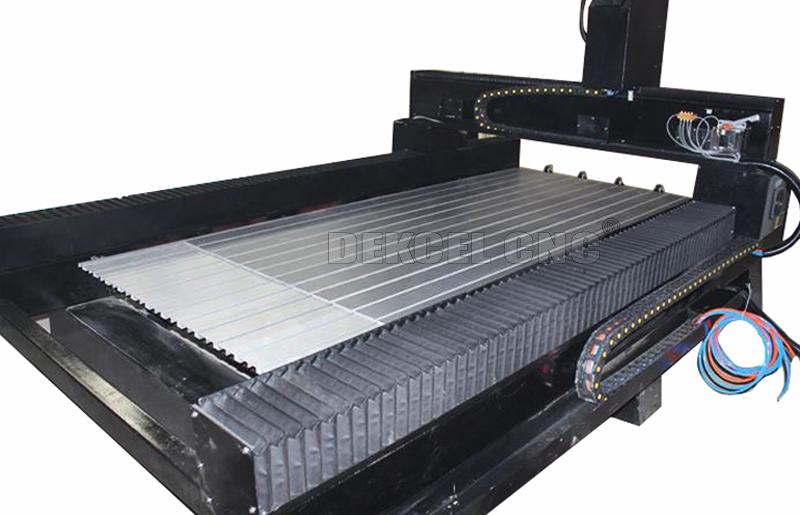

1.Heavy duty lathe bed and big heavy gantry,more stable to bearling 3 tons weight material.

2.Working area 1300x2500x300mm

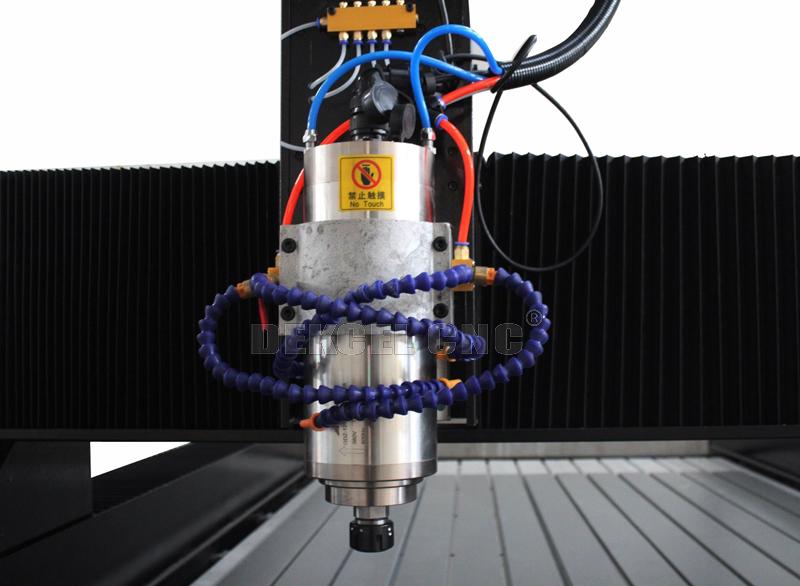

3.5.5kw high power water cooling spinlde,fuling inverter.

4.25 mm square rail,leadshine hybrid servo motor,oil injection system.

5.Independence control cabinet.



The advantage of stone cnc router carving machine

1.Linear rails on X, Y (Y axis is controlled by two motors)and Z (ball screw transmission axies are used to guarantee high accuracy and stable performance, and support heavy weight.

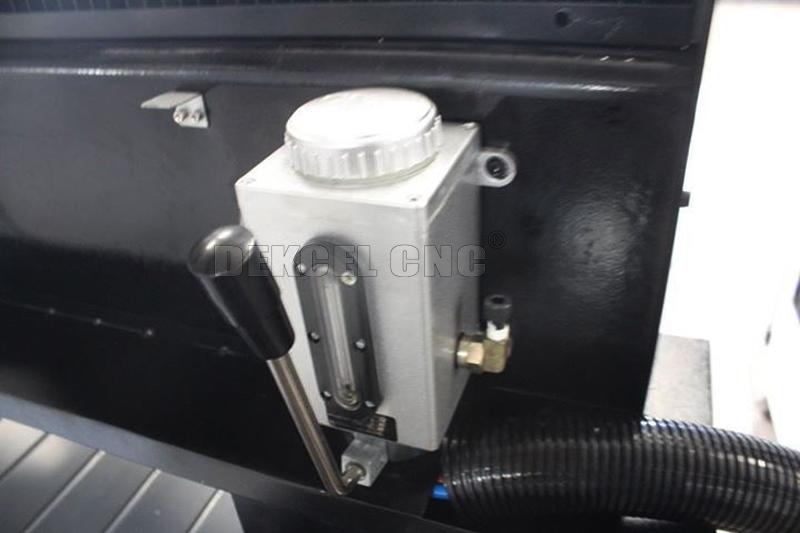

2,The square sliding blocks are of good dustproof effect. Automatic oil feeding and lubricating system makes the regular maintenance very easy.

3, Superior high power water cooling spindle could keep working at low noise level, safeguarding stability for  longtime operation

4. Breakpoint memory enable the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.

5. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, Wentai, etc.

Technical parameter of stone cnc router carving machine

Model		DEK-1325S(Professionally for carving stone)
Working Area		1300×2500×300mm
Spindle Motor		5.5KW spindle motor cooled by water
Working Mode		Stepper motor  (servo motor for your optional )
Control System		Nc-studio controllor
Drive Mechanism		Gear-wheel on x,y axis

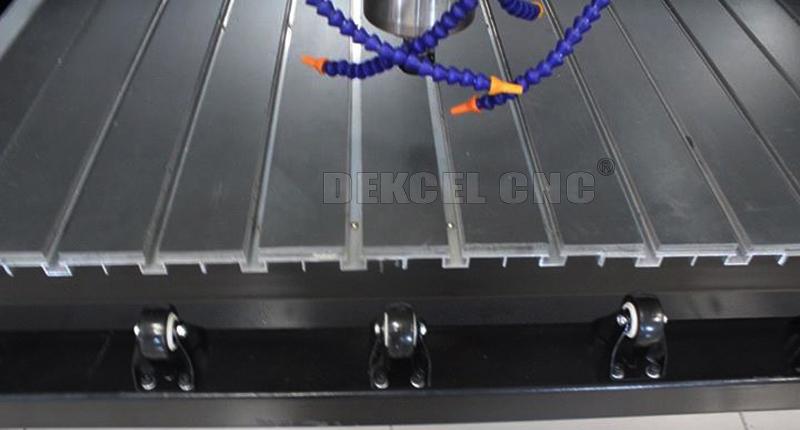

Table Surface		T-slot table
Frame		wholly steel structure,Special Type Design For the High Stability and High bearing capacity.
Motion Positioning Accuracy		± 0.03/300mm
Repositioning Accuracy		± 0.05mm
Max Motion Speed		80,000mm/min
Max Engraving Speed		50,000mm/min
Rotating Speed of Spindle		2,4000rpm
Z-axis setting		Auto Z origin tool high sensor
Dictate Formate		G code, *.u00, *.mmg, *.plt
Operating Voltage		220V/380V
Software		ArtCAM software,Type3 original with Dongle or Wentai (ArtCUT)
Packing Size		2170×3280×1710mm
Lubrication System		Oil lubrication system
Net weight/ Gross Weight		1500KGS/1600KGS
Optional Parts		Dust Collecting System
		Vacuum Pump
		Water tank with water pump
		Rotary device with Dia80mm/100mm/125mm/200mm/250mm/310mm
		March 3 controllor,DSP controllor



Packing

Stone cnc router carving machine is packed with fumigation-free wooden case specifically for exporting.



After sale service

 1.  24 hours Technical support by Email or Calling .

 2.  English manual and CD video for machine using and maintaining.

 3. 24 months guarantee of the whole machine.

      Hardware: 1 years for machine

      Software: Whole life on update for free.

      Maintenance and technological support: Whole life.



Payment term

T/T (30% of the total payment in advance, pay the balance before delivery. )
