DEK-1325S
DEKCEL CNC
102

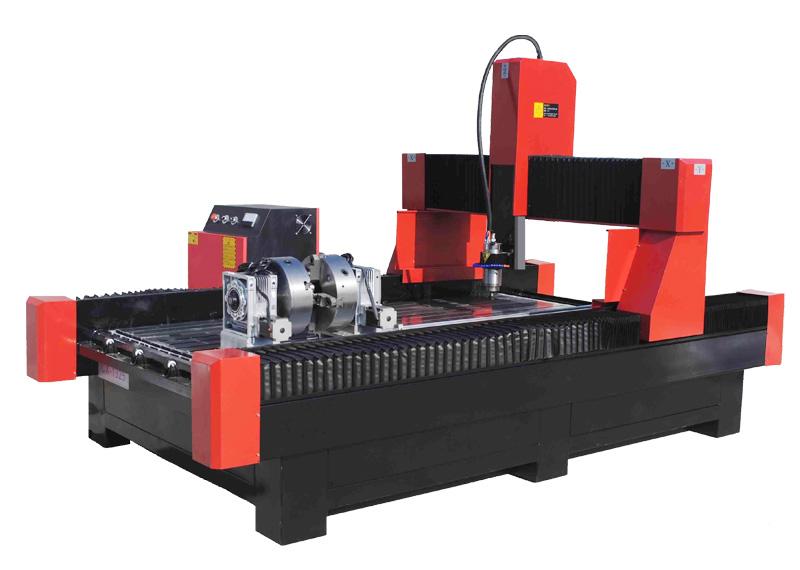

3D letter carving on marble granite tombstone cylinder rotary cnc router machine
Features of 3D letter stone carving router machine with rotary
1.Heavy structure, ensure the stable,low inertia and no distortion during high speed working.Machine working table covered with stainless steel to avoid rusting and easy to clean.
2.Superior high power 5.5kw watercooling spindle could keep working at low noise level, safeguarding stability for longtime operation
3.Breakpoint memory enable the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.
4. Machine with rotary can 3D reliefing,carving engraving on cylindrical stone material.
5. DSP controller system with USB interface,working without connecting with computer during working and easy to control.
6. Configured with water tank and automatic cooling water supply system
Technical parameters of 3D Stone carving cnc router machine
| NO. | Description | Parameter | ||
| 1 | X,Y,Z Working Area | 1200x1200x200mm | 1300x1800*200mm | 1300x2500x200mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm | ||
| 3 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm | ||
| 4 | Lathe Structure | weld steel heavy structure | ||
| 5 | X, Y,Z Structure | Square Rails | ||
| 6 | X,Y,Z Transmission | x,y axis gear and rack,z axis ball screw | ||
| 7 | Max. Consume Power | 4.5Kw | ||
| 8 | Max. Motion Speed | 0-6000mm/min | ||
| 9 | Max. Working Speed | 0-3000mm/min | ||
| 10 | Spindle Power Motor | 5.5kw water-cooling spindle | ||
| 11 | Spindle Speed | 0-24000RPM | ||
| 12 | Drive Mode | Stepper Motor | ||
| 13 | Collet | ER25 | ||
| 14 | Command | G Code, *uoo, *mmg, *plt,*nc | ||
| 15 | Control system | NC Studio or DSP control | ||
| 16 | Interface | USB | ||
| 17 | Flash Memory | 128M | ||
| 18 | Resolution | <0.01mm | ||
| 19 | Software | Type3/Ucancam/Artcam | ||
| 20 | Working Voltage | AC220V/380V, 50/60Hz | ||
| 21 | Running circumstance | Temperature: 0℃~45℃ Relative humidity: 30%~75% | ||
| 22 | Packing Size | 1820x1860x1550mm | 2200x1900x2000mm | 3140x2130x1520mm |
Detail show of marble granite stone carving router
Granite stone engraving router 5.5kw spindle

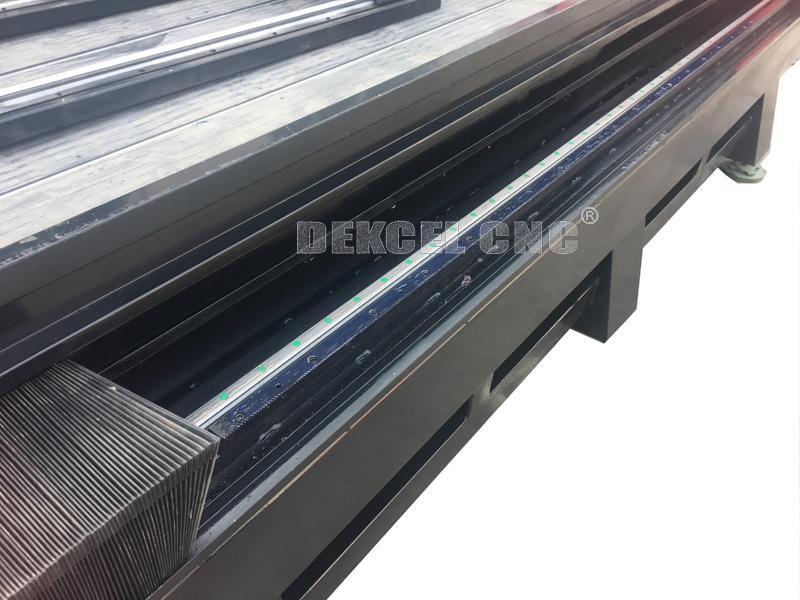

Hiwin guide rail

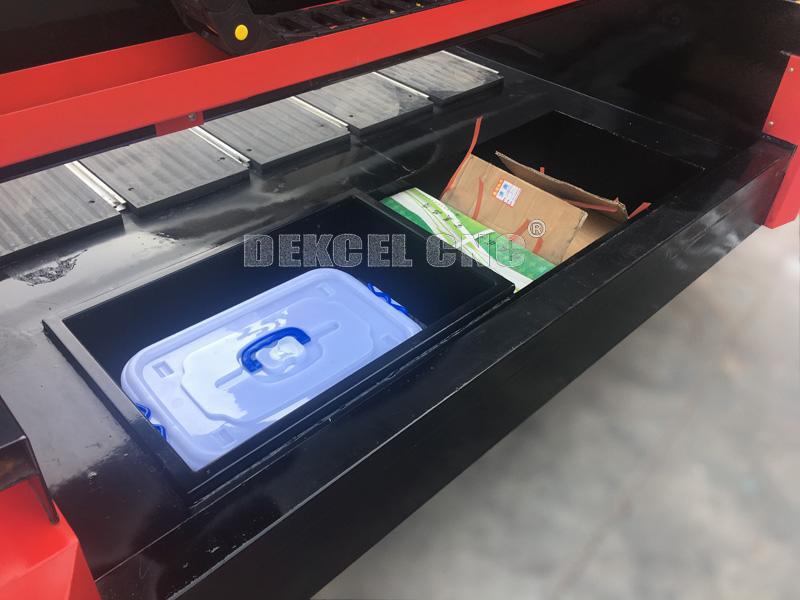

CNC stone carving router's water tank
stone carving router machine T-slot worktable
