China stone engraving cnc router machine manufacturer

China stone engraving cnc router machine manufacturer DEKCEL produced stone cnc router can process on the granite, marble, stone, sandstone etc material such as sculpture, relief, The processing efficiency several times higher than ordinary engraving machine .

Quantity:
  • DEK-1325S
  • DEKCEL
  • 084
Advantages of China stone engraving cnc router machine manufacturer
1. Heavy duty T-slot machine body, larger loading capacity.
2. X Y Z uses Taiwan Hiwin linear square guide rail, it is more stable and has longer life than normal round one.
3. Z axis use 25mm hign precision ball screw and can avoid spindle suddenly up and down.
4. We use high voltage and  high torque hybrid serv motor and drivers, which is much more powerful than the normal stepper driver.
5. Chinese Fuling inverter control the spindle speed.
6. Adopt  5.5KW water cooling spindle, which is suitable for long time and high temperature working.
7. Uses Multech control system, easy and convenient to operate.
8. Max. speed is able to reach 20m/min.

China stone engraving cnc router machine technical parameter
Model: DEK-1325S
X,Y-axis working area 1300*2500mm
Body dimensions(with bracket) 2900*1750*1400mm
Z-axis working area 150 or 200 mm
Max. Feeding height 120mm or bigger
Cutting thickness of material ≤40mm
Max. travelling speed 8000mm/min
Engraving speed 0-6000mm/min
Mechanical precision 0.01mm
Compatible Software Artcam software
Max. Power consumption 3.2KW
Power source 220V/380V
Driving system Hybrid servo motor and drivers
Memory Without or DSP
Spindle 5.5KW spindle , water-cooled
Spindle speed 0-24000RPM
Blade diameter 3.175mm,4mm,6mm
Control system DSP, USB offline
Command G code, Uoo, mmg, plt, HPGL
Running ambient temperature 0-45°C
Relative humidity 30%-75%

Stone engraving cnc router machine parts

5.5kw constant power water cooling spindle ensure nice work on the hard stone.With automatic water supply cooling system,avoid tool damage caused by the temperature too high.

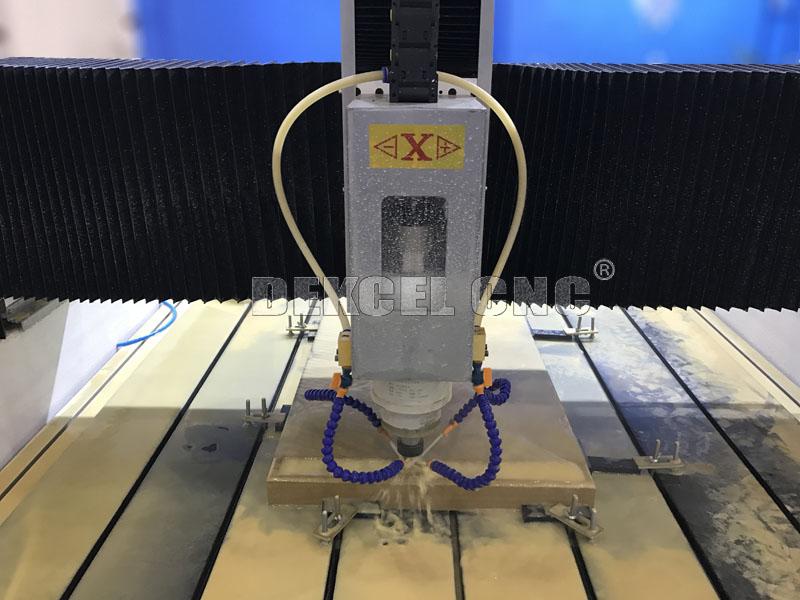

water spindle of stone engraving cnc router

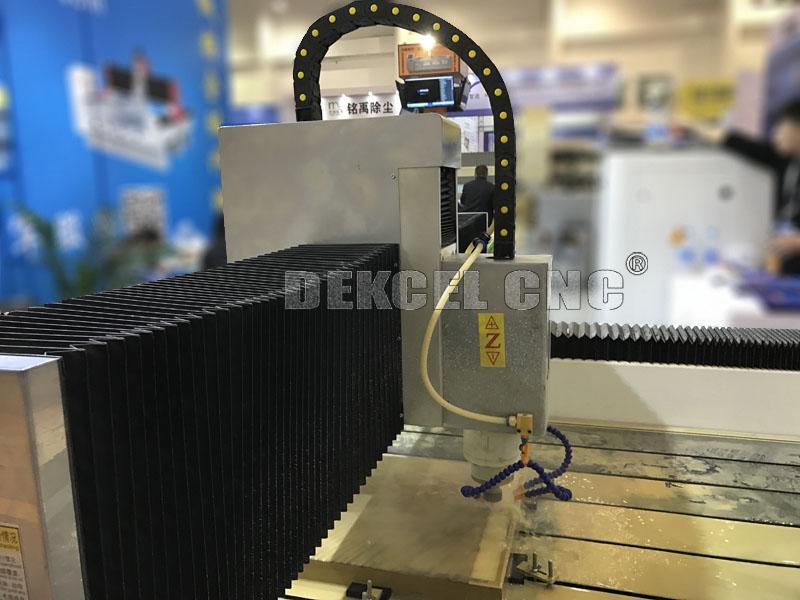

stone cnc router

injection system of stone cnc router


All dustproof and waterproof design,three axis of the machine with dust cover,protect the linear guide fron dust,increase the service life for transmit linear guide.

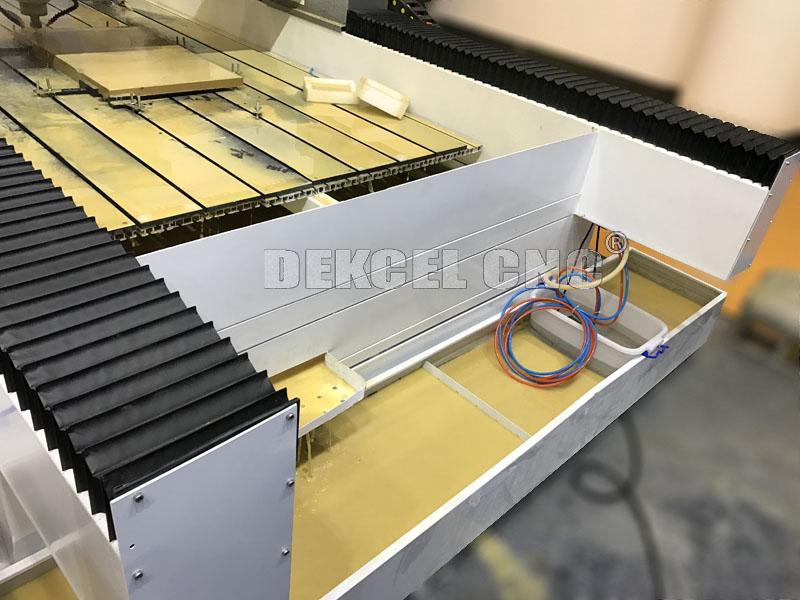

water tank of stone engraving cnc router

With automatic water supply cooling system,avoid tool damage caused by the temperature too high,the water sink direct discharge the waste water.
china stone engraving cnc router machine

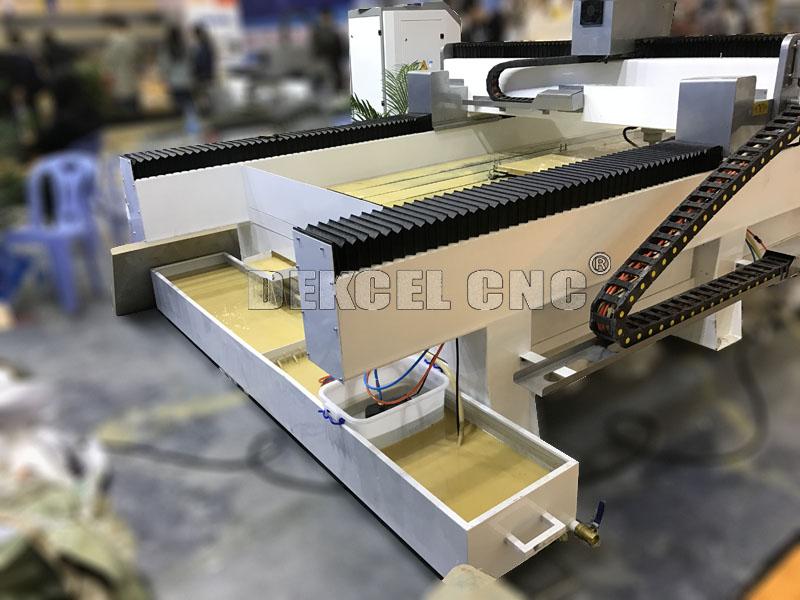

heavy body stone engraving cnc router

marble engraving cnc router


Stone engraving cnc router machine application
1.Three-dimensional relief engraving for natural marbles, granites, artificial stones, tombstones, tean tables ink stones,milestones, ceramic tiles, glass and other materials, as well as two dimensional engraving for line line engraving.
2. Marble,artificial stone,bone,ivory,state and other materials,pratical gifts to the ads,printed cartons,leather clothing ,building models,jade and other stone materials.

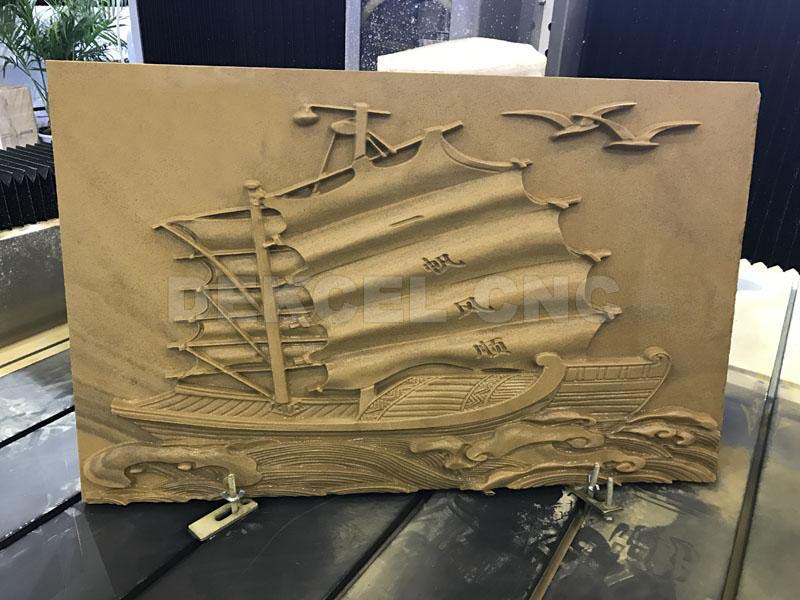

cnc router engraving on sand stone

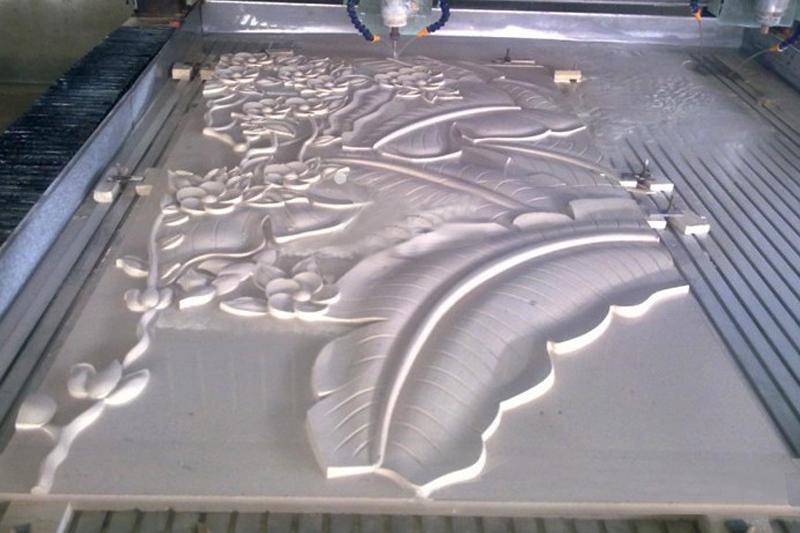

cnc router engraving on marble

cnc router engraving on stone
