Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-1325S
DEKCEL
010
Stone engraving machine is suitable for Curb & Paving Stone Forming industries, Stone processing factories, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries and so on.
Advantages of stone engraving machine
1.)Granite engraving machine bed is welded by the thick wall steel seamless tube, high temperature tempering treatment, high rigidity, bearing strength better.
2.)Dual motor drive for Y-axis, moving stably.
3.)Good software compatibility, suitable for Type3, Artcam, Castmate, UcanamV9.
4.)Constant spindle motor power, strong cutting strength, high efficiency.
5.)High precision rack transmission, fast speed.
6.)Imported linear square guide way, double row four row slider, high precision, long life time.
7.)Well selected electrical accessory, let the failure rate to the minimum.
8.)With water and automatic water supply and cooling system.
9.)Dustproof and waterproof design, better to protect the machine driving part.
Technician parameter of stone engraving machine
| Items | Parameters |
| Working area(mm) | 1300mm*2500*200mm |
| Table Structure | 1.5 mm stainless steel T-slot table |
| Transmission system | X,Y axis Gear Rack from Taiwan,z axis Balls crew from Taiwan but with German technology |
| Lead rail system | Linear round guide rail |
| Spindle power | 5.5 kw Water-cooling ,3.175/4/6/12.7mm |
| spindle speed | 0-24000 rpm |
| Motor | stepper(Panasonic/Yaskawa optional) |
| Drive | Leadshine drivers |
| Dust collector system | For your option |
| Tool sensor | Option |
| Software environmant | Windows 98/2000/XP |
| Control System | Nc studio control system [DSP is optional] |
| Compatible file formats | G code ; *.u00 ; *.mmg ; *.plt . |
| Compatible CAD/CAM Softwares | Ucancam V8 / Type3 / Artcam / |
| Working Voltage | AC380V,3ph, 50Hz |
| Precision | 0.005mm |
| Max speed | 26.0m/min |
| Max engraving speed | 18.0m/min |
| Max feeding height | 200mm |
| Work-holding devices | by fixture |
| Interface type | USB |
| Warranty guarantee | One-year after-sale services |

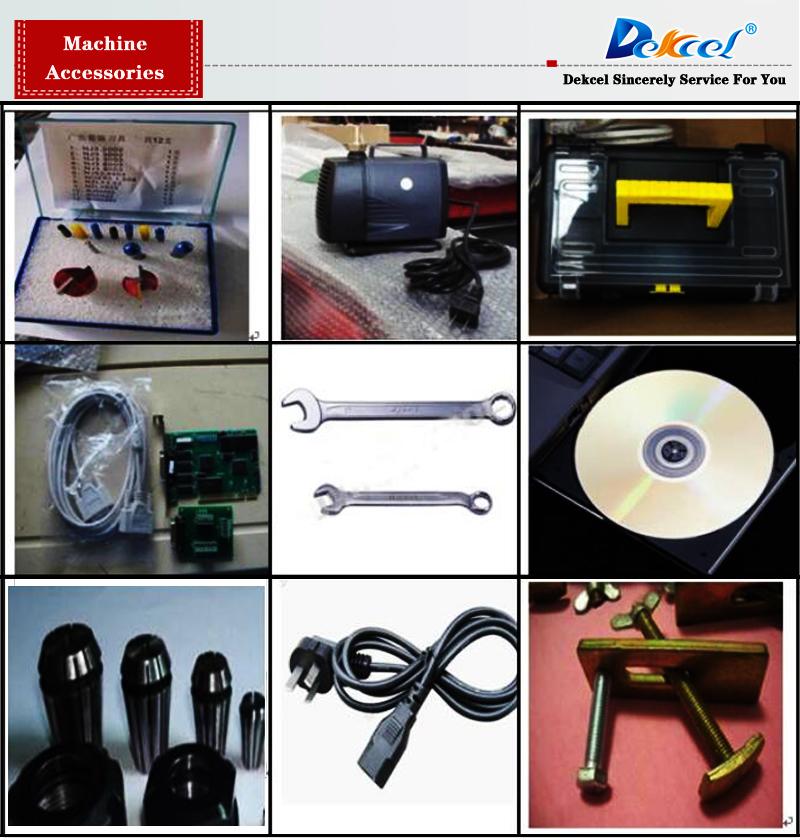

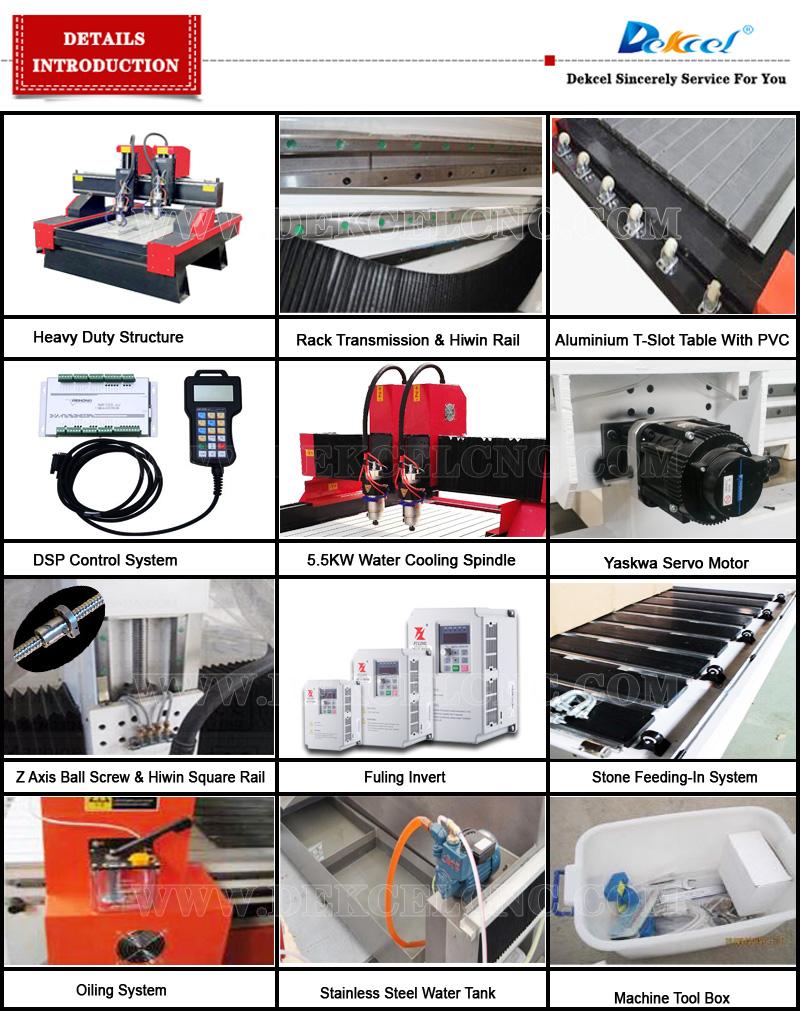

Stone engraving machine parts
Warranty and technical support
12 months for the whole machine
24 Hours technical support by email or calling
User friendly English manual and Video CD for machine operation and maintain
After-sale service
1.Small parts will be supplied to you for free, such as, software CD, dongle.
2.Any problem will be replied to you within 24 hours!
3.By video, solution manual in English, Email, Skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.
