1000w Handheld Fiber Laser Welding Machine for Metal Stainless Steel

Name: 1000w Handheld Fiber Laser Welding Machine for Metal Stainless Steel
Brand: DEKCEL CNC
Rating: 5.0 (97 reviews)

DEKCEL CNC handheld fiber laser welding machine equipped with 500w/1000w/1500w/2000w fiber laser source,which has high photoelectric conversion efficiency and long life of 100,000 hours. Very nice welding performance .No deformation and small thermal effect.It can weld a wide range of metal, includes the stainless steel, carbon steel, cooper ,aluminum alloy , Zinc plated board, etc .

Quantity:



Inquire

Model:
DEK-500E/1000W/1500W/2000W
Brand:
DEKCEL CNC
Code:
118

Product Description

HANDHELD FIBER LASER WELDER VIDEO

500w/1000w/2000w Fiber Laser Welding Machine
1000w handheld fiber welding machine

DEKCEL CNC handheld fiber laser welding machine replaces the previously fixed light welding path which with a WSX handheld torch, overturning the previous working mode of the laser welder.Widely used in kitchens, household appliances, advertising, molds, stainless steel doors and windows, crafts, household items, furniture, auto parts and many other industries.

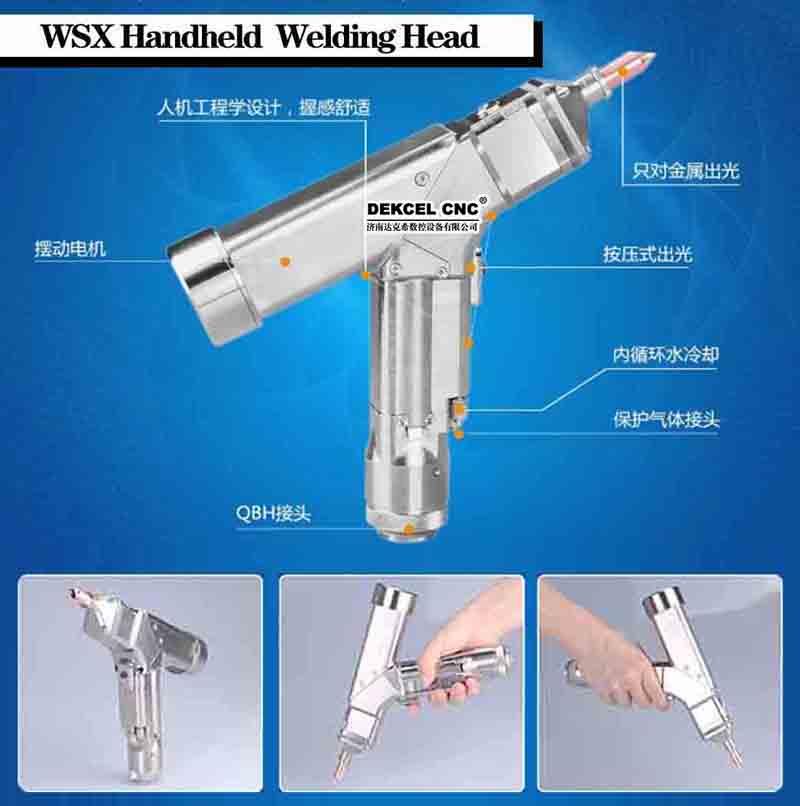

handheld fiber laser welding machine head

Features of 1000w handheld fiber laser welding machine

1.DEKCEL CNC 1000w fiber welding machine adopt WSX handheld welding head ,portable and flexible, convenient to operate, suitable for welding of various angles and shapes;

2.Independently developed wobble hand-held welding head, with z-shaped swing welding pool stirring technology, the width of welding seam is adjustable, the defect rate of welding is greatly reduced, which makes up for the small disadvantage of laser welding spot, and expands the tolerance range of processing parts and the width of welding seam, so as to obtain better weld forming.

3.Our welding equipped with laser safety interlock function to ensure the safe use of operators .With multiple safety alarms, automatically lock light after moving the starting parts, high safety.

4.Machine is equipped with a variety of angle welding nozzles to meet the needs of different products.

5. The welding joint is equipped with dual function control water chiller to ensure continuous operation for a long time.

6.Low material costs, low energy consumption and low maintenance costs.

Techniacal Parameter of Fiber Laser Welder Machine

Equipment model	DEK-500W	DEK-1000W	DEK-1500W	DEK-2000W
Rated output power	500W	1000W	1500W	2000W
Power adjustment range	500W	1000W	1500W	2000W
Laser type	IPG / RAYCUS / JPT / MAX Continuous Pulse Fiber Laser
Laser wavelength	1064nm
Frequency	0～3000
Spot diameter	1～8mm
Welding speed range	1～120mm/s
Welding gap	1～8mm
Welding thickness	﹤1.2mm Stainless steel ﹤0.8mm Carbon steel	﹤2.5mm Stainless steel ﹤1.5mm Carbon steel ﹤1mm Aluminum	﹤4mm Stainless steel ﹤2.5mm Carbon steel ﹤2mm Aluminum	﹤5mm stainless steel ﹤3.5mm Carbon steel ﹤3mm aluminum
Beam quality	M2;﹤1.1	M2;﹤1.15	M2;﹤1.2	M2;﹤1.2
Fiber bending radius	100mm
Working environment	15～35°C/<70% without condensation
operating mode	hand-held swing welding mode
Power Consumption	4KW	6KW	9KW	12KW
Cooling mode	Built-in chiller			External chiller
Power requirements	AC220V±10%/50Hz/40A or 3-phase AC380V±10%/50Hz/40A

Details of Handheld Fiber Laser Welder

1.Laser source

Continuous pulse fiber laser source assure the high quality output beam and the stable output power.We offer imported and China laser source for your choice ,includes IPG ,Raycus ,Max,JPT,etc.

fiber laser welding machine source

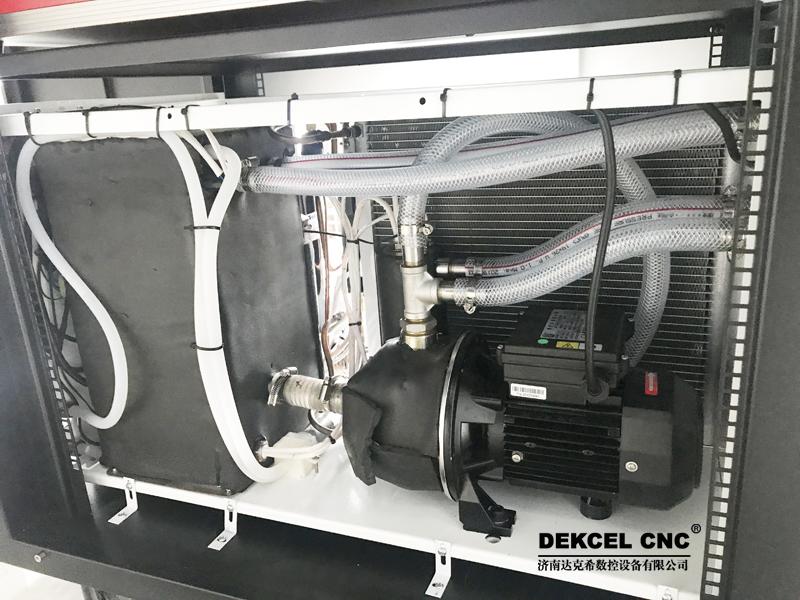

2.Water chiller

One of the biggest convenience of the machine is the inside water chiller .It saves a lot of the machine's dimension.It is constant temperature industrial type.

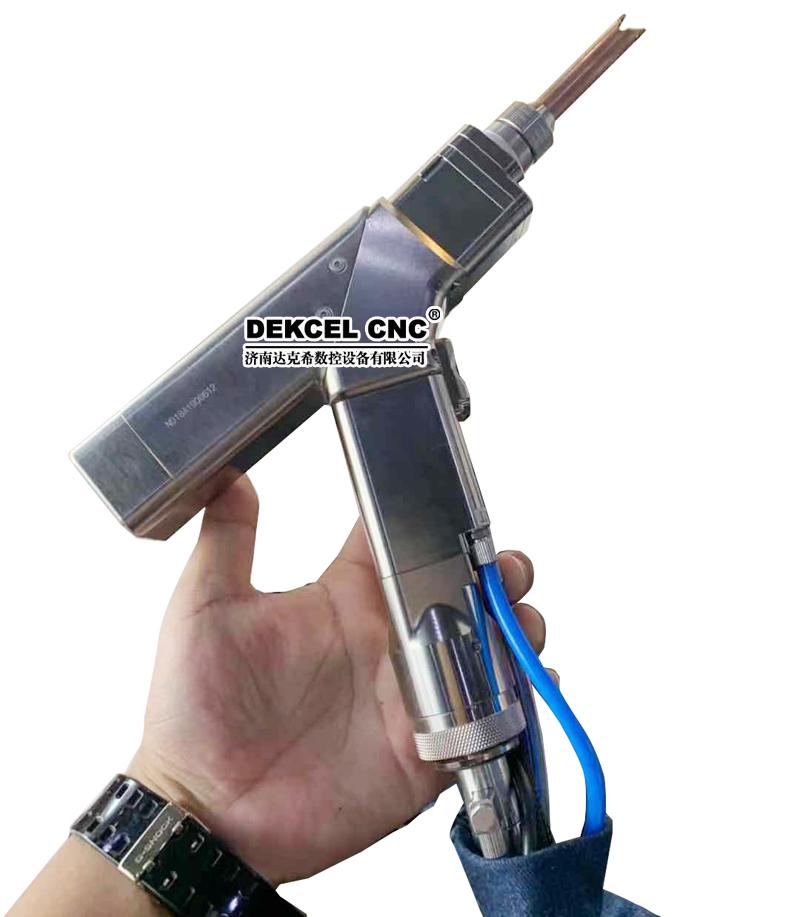

3.Portable handheld welding head

Portable handheld welding head is the biggest character of the machine.

Instead of the fixed welding head, it offers so much convenience for welding big or heavy ,or complex structure articles.

WSX fiber laser welding head

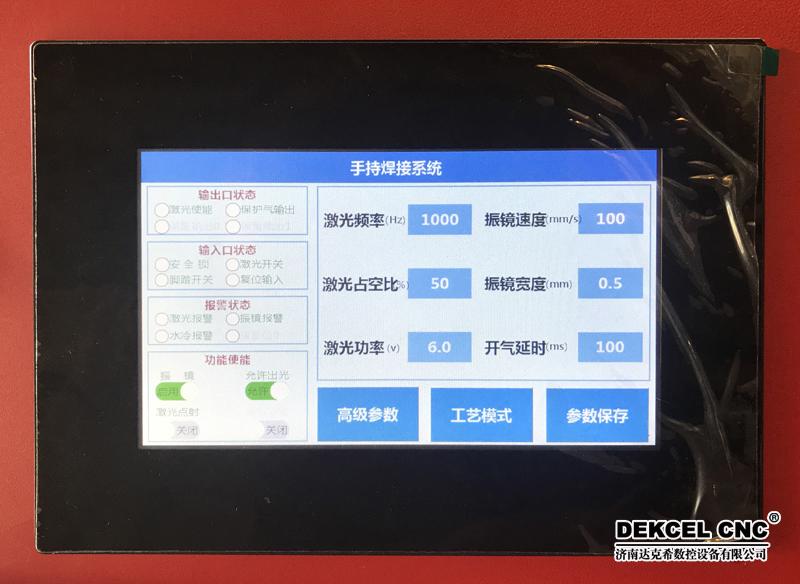

4.Welding software

Welding software is easily operated as the mode of human-computer interface. Strong software function can be realized by simple touch screen .It has editable and memory functions.

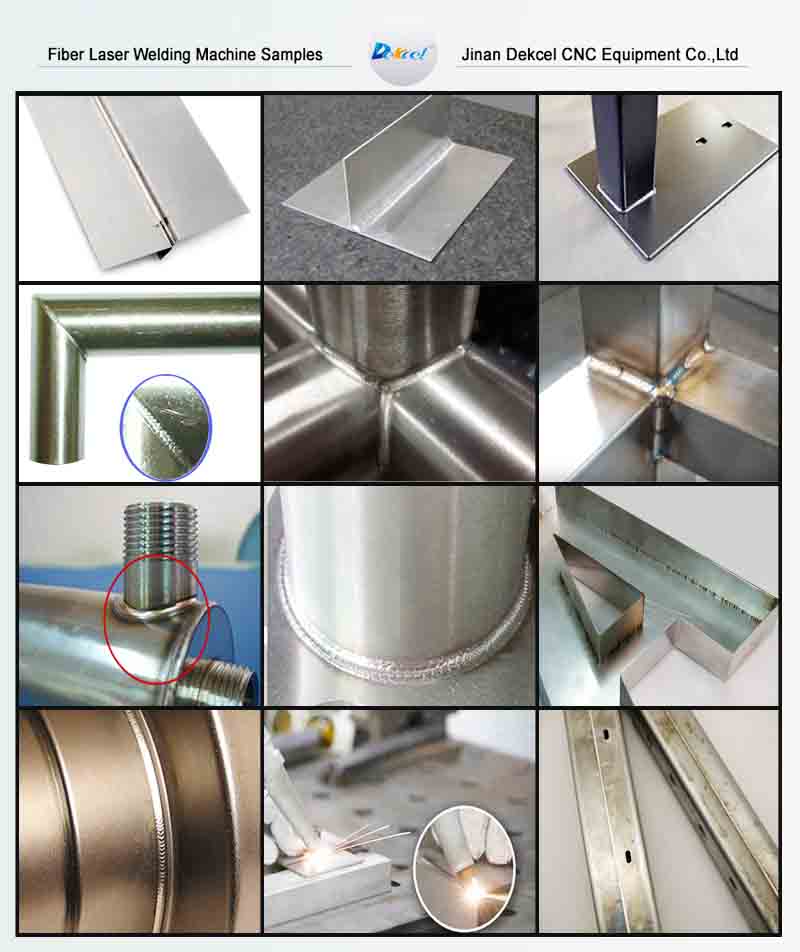

Application of Fiber Laser Welding Machine

DEKCEL CNC fiber laser welding machine can be used to weld alloy and metal, such as gold, silver, platinum, stainless steel,?titanium, nickel, tin, copper, aluminum, etc.The equipment have widely applied in aviation, spaceflight,watercraft, petrochemical industry, home appliances, medical equipment, instrument, electric, motor.
handheld fiber laser welder for metal
