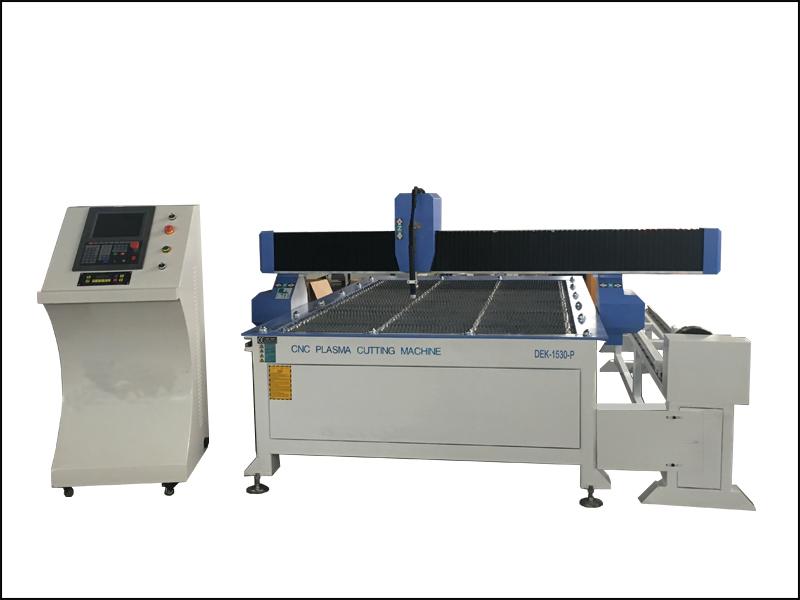

Square & round tube cnc plasma cutting machine

Dekcel square & round tube cnc plasma cutting machine suitable for cutting on square tube, round ube, Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc

Quantity:
  • DEK-1325P
  • DEKCEL
  • 046
Machine Features of Square$round tube plasma cutting machine
1. Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2. Incline design under table surface makes finished parts and scrap slide down to both side along, convenient and safe for operator.
3. DSP hand-hold control system dedicated for plasma machine, supports file reading from U disk or downloading from computer, providing high independence and great convenience during operation.
4. Racks and gears as transmission, so large area cutting can be done in short time.
5. High sensitivity THC (Torch Height Controller) is optional for auto adjustment to cutting distance and cutting precision.

Standard main parts of tube plasma cutting machine
# China Huayuan plasma power supply
# Gear-wheel transmission
# Square rails
# Control system : START torch height controller
# Famous Brand china Stepper motors
# Thicken cast steel structure
# Including FASTCAM Software  (original )
# Sawtooth table
#Rotary system

Optional parts
# American power supplier
# YASKAWA Servo motors

Technical parameter of Square$round tube cnc plasma cutting machine


Model of Plasma cutting machine

DEK-1325P

Working size(length * width)

1300*2500mm

Repeat positioning accuracy

±0.05mm

Traveling speed

0-24000rpm/min

Cutting speed

10-15m/min

Transmission model

Gear rack drive

Transmission system

X,Y round rails with high-precision,zero clearance

increased linear guide+ rack

Driver

Leadshine driver

Plasma power supply

Imported US Haibao or Domestic Huayuan

Cutting thickness

0-30mm

Cutting type

Plasma/oxy-acetylene or propane

Input voltage

3 phase,220v/380v±10%

Mode of file transfer

USB Interface

Guide way

Imported square rail

Table-board

Steel blade saw tooth mesa

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.3mm/10m

Environmental temperature

-5~45°C

Humidity

 <90% No concreting

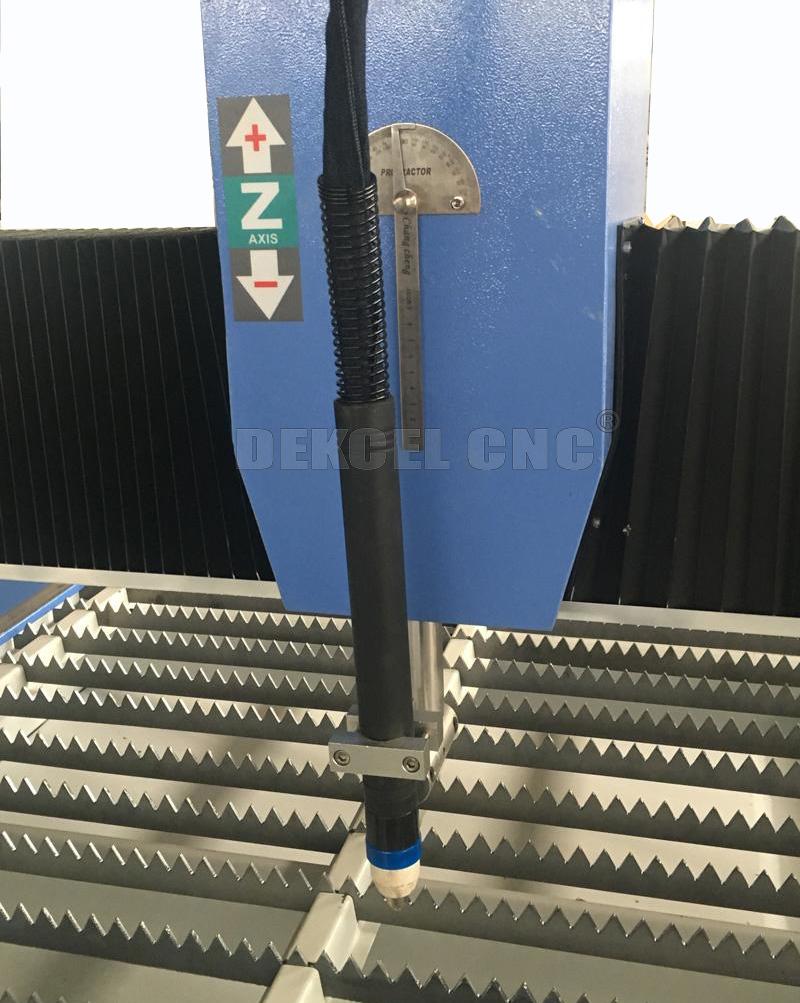

cutting head of tube plasma cutting machine

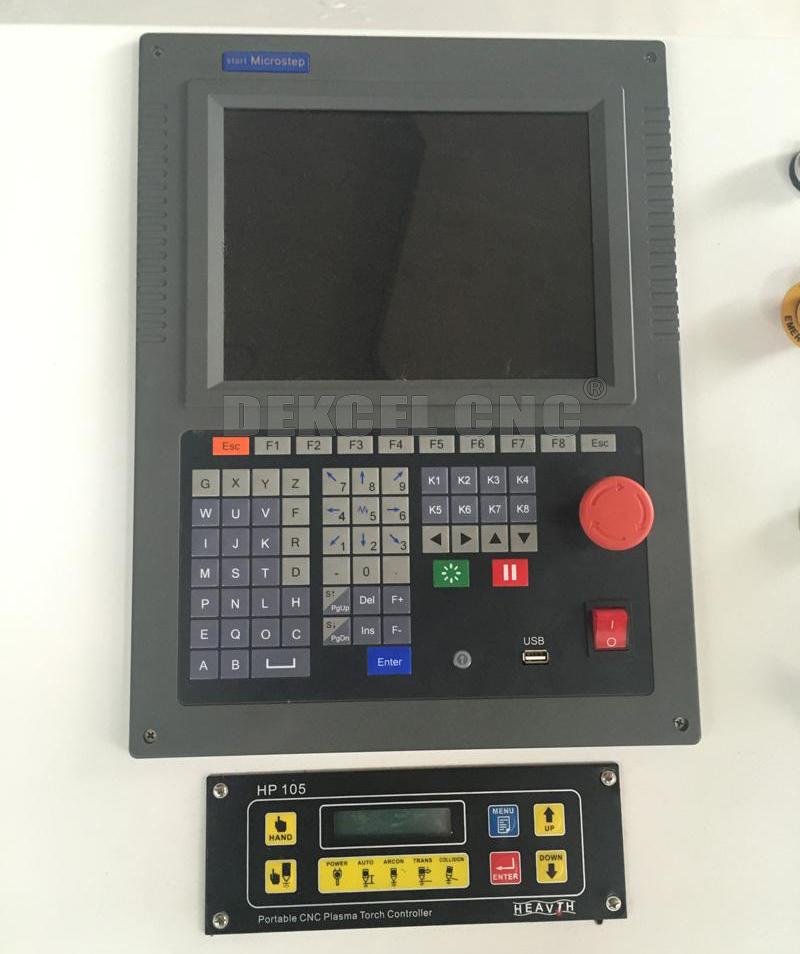

start control system of tube plasma cutting machine

cutting table of cnc plasma cutting tube

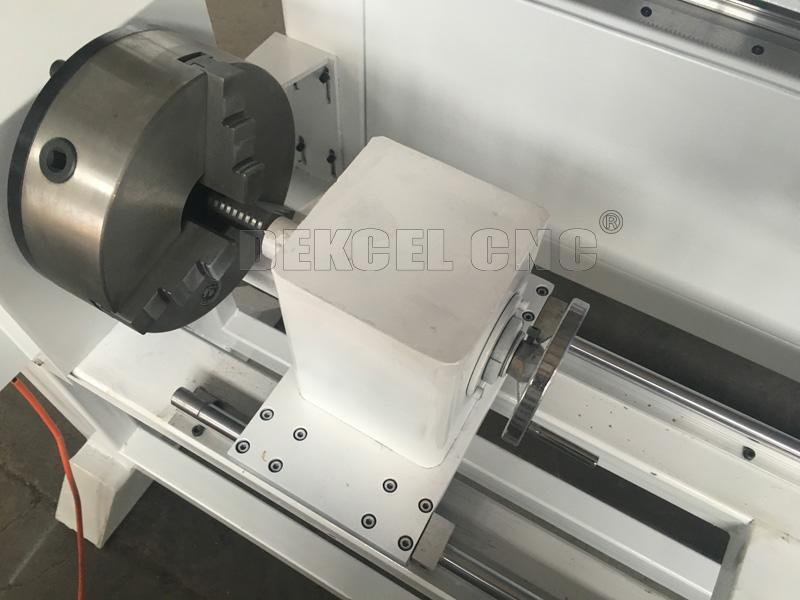

cnc plasma cutting square tube

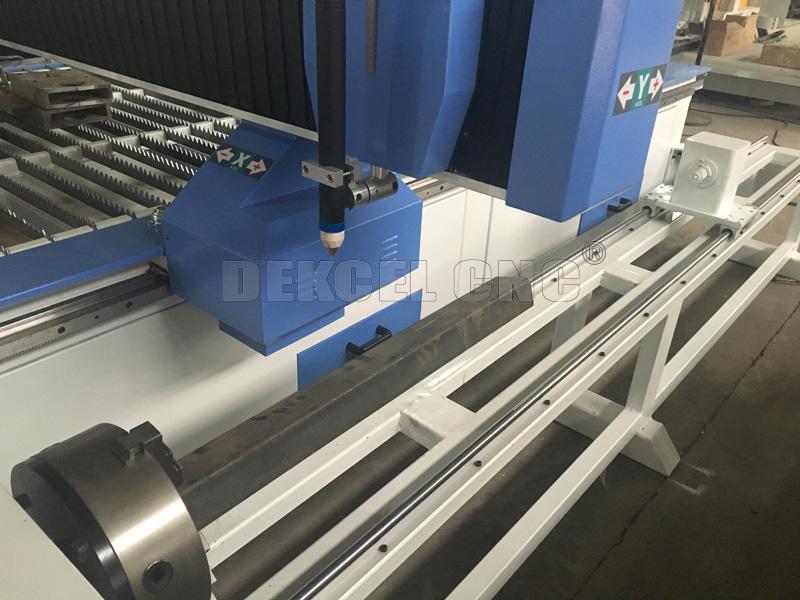

round tube plasma cutting machine

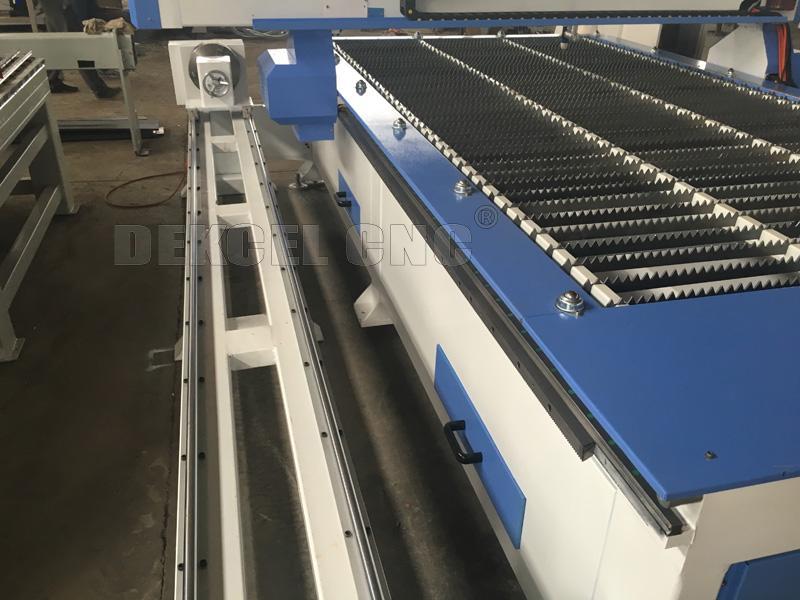

cnc plasma cutting machine for tube

guide rails of plasma cutting machine


Applicable industry and materials of  square$round tube plasma cutting machine
1.The Suitable material:
Cutting on square tube, round ube, Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc.
2.The application industries:
Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.

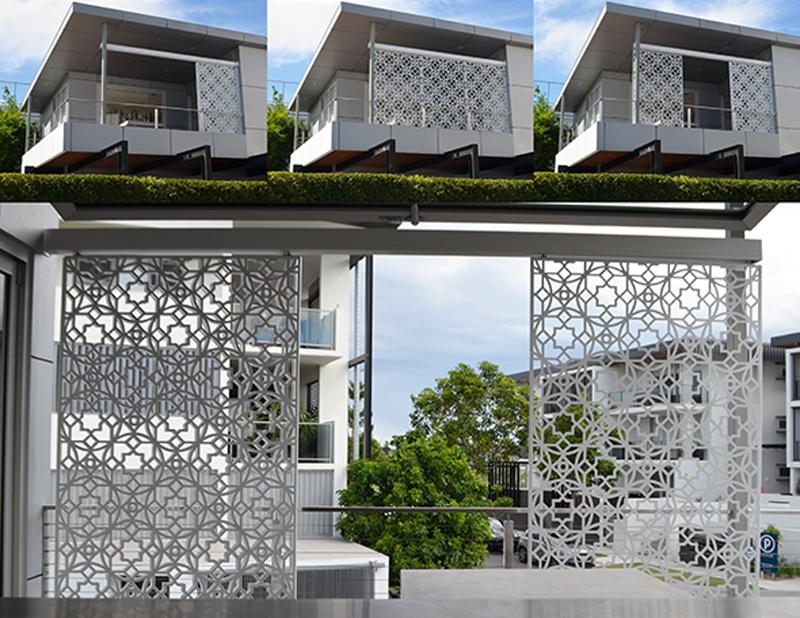

plasma cutting metal sheet

tube plasma cutting machine

round tube plasma cutting machine

cnc plasma cutting round metal tube

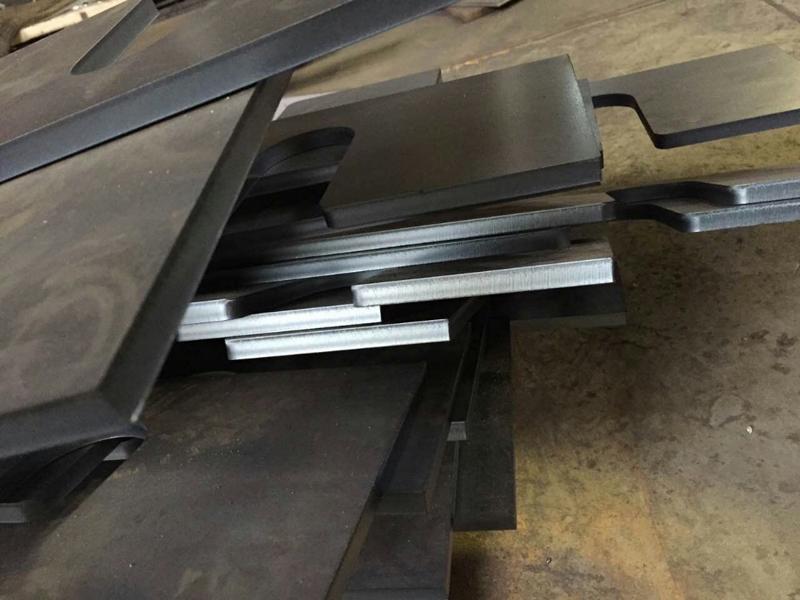

tube and plate plasma cutting machine
