Gantry type plasma and flame cutting machine
You are here: Home » CNC Laser » Plasma Cutting Machine » Gantry type plasma and flame cutting machine
Share to:

Gantry type plasma and flame cutting machine

Dekcel gantry type 2000*6000mm good price china cnc plasma and flame cutting machine for 20mm-100mm metal plate cutting,better performance ,more rigid and durable construction and easy to operate.

Quantity:
  • DEK-2060P
  • DEKCEL
  • 023

Feature of gantry type plasma and flame cutting machine

1 Better performance ,more rigid and durable construction

2 Easy to operate,high precision,high quality.

3 Safe and save manpower

4 Flame cutting and plasma cutting ,equipped with international famous plasma power,

5 Widely applied in construction,steel structure,shipbuilding industries.

6 The machine is equiped with FastCAM programming software ,the software is easy to learn and operate



Technical parameter

Cutting Area (2500- 7500mm) by (4000mm-20000mm) or customized
Input Power 220 ± 10%V AC 50Hz /60 Hz
For Servo Motors: 750 W
Cutting Modes Plasma Cutting / Flame Cutting / Plasma Cutting+ Flame Cutting
Transmission Style Rack & Gear
Drive Style Servo Motors Double Sides Drive
Step Motors Double Sides Drive
Torch Lift Distance 200 MM
Torch & Number One Plasma Torch / One Flame Torch /
One Plasma Torch + One Flame Torch
Two Flame Torches/One Plasma Torch+One Flame Torch
Plasma Cutting Thickness Depend On Plasma source
Flame Cutting Thickness Piercing Cutting: 5-80 mm
Edge Start: 5-150 mm
Torch height control Plasma Automatic Torch Height Control /
Flame Capacitance Torch Height Control
Cutting Speed For Servo Motors: 0-10000 mm / min
For Step Motors: 0-4000 mm / min
Cutting Table (We can supply drawing of the cutting table with the machine for free.)
Positioning Accuracy ≤±0.2 mm /m
Repeatability ≤±0.3 mm /m

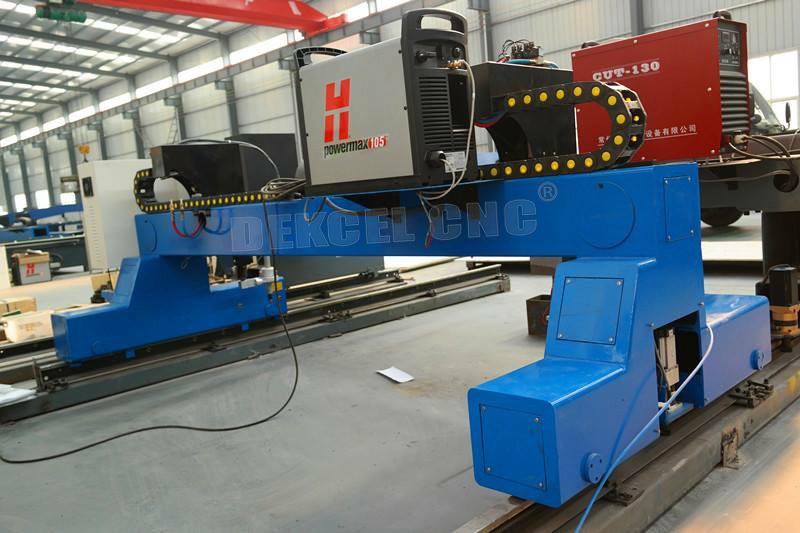

High configuration gantry plasma flame cutting machine with straight cutting with USA hypertherm 105A plasma power

105A Hypertherm supply of gantry type flame and plasma metal cutter machine

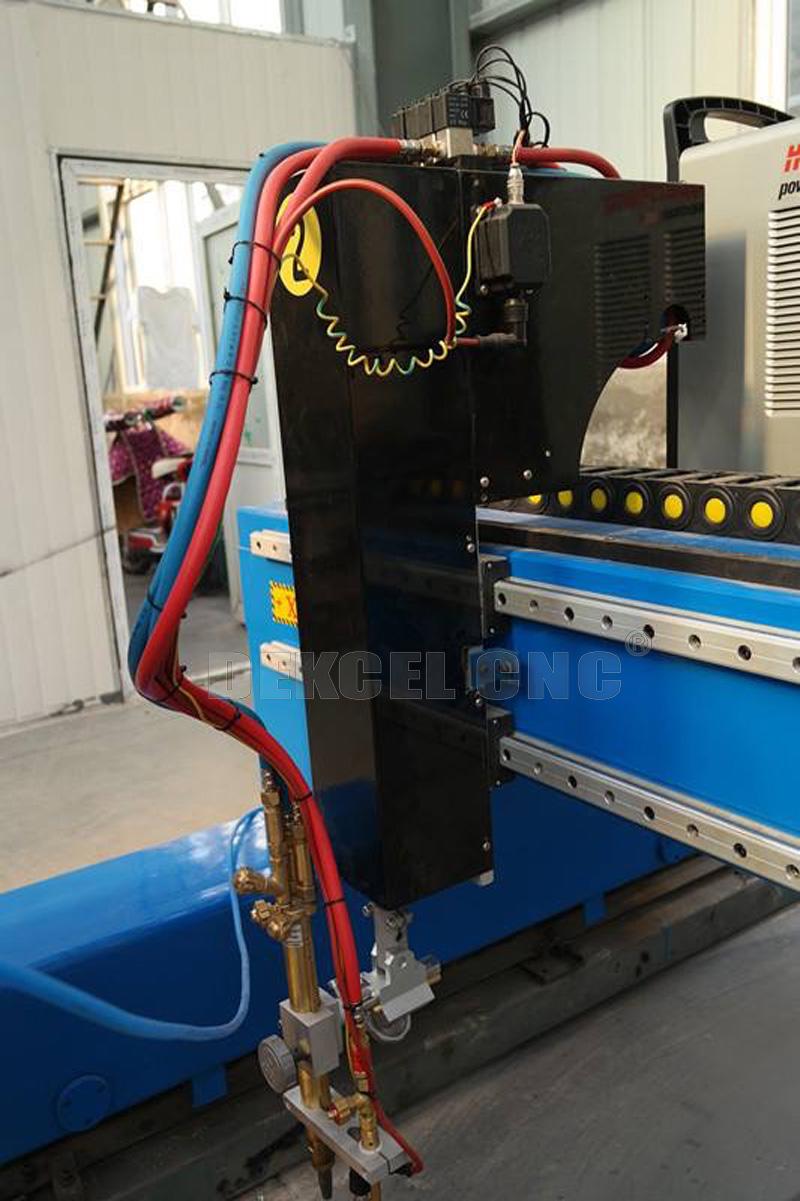

Plasma and flame cutting head
gantry type flame and plasma metal cutter head

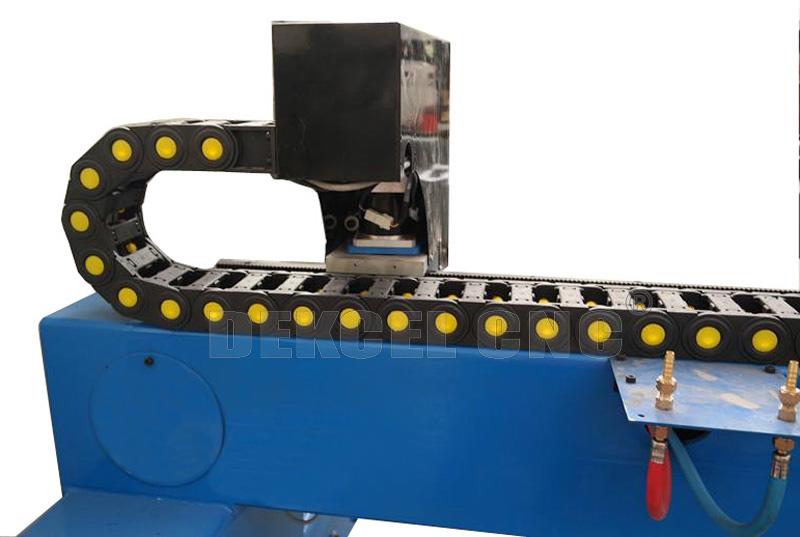

High quality cable chain
gantry type flame and plasmametal cutter cable chain

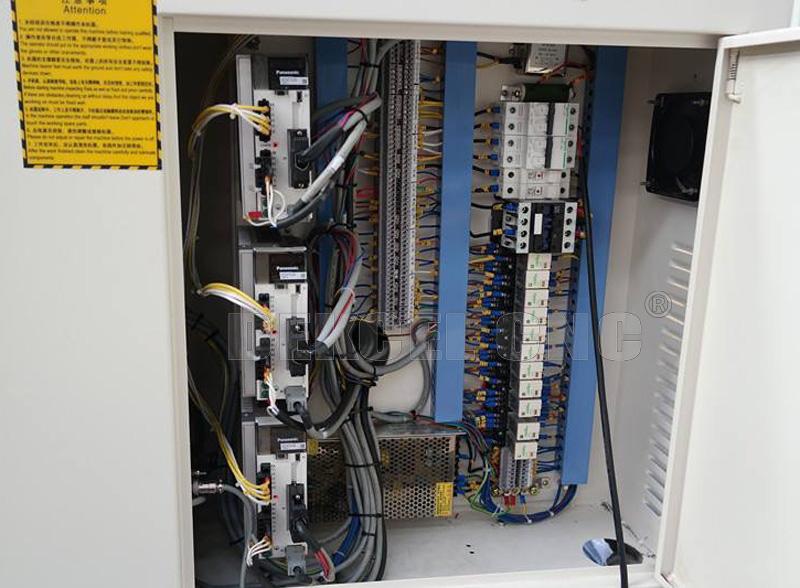

Gantry type plasma and flame cutting machine control box
gantry type flame and plasma metal cutter machine



Application fields of gantry type plasma and flame cutting machine



Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery,

textile machinery, engineering machinery, precision parts, ships, metallurgy equipment, elevators, household appliances,craft gifts,

tool processing, decoration, advertising, metal processing and other manufacturing industries.

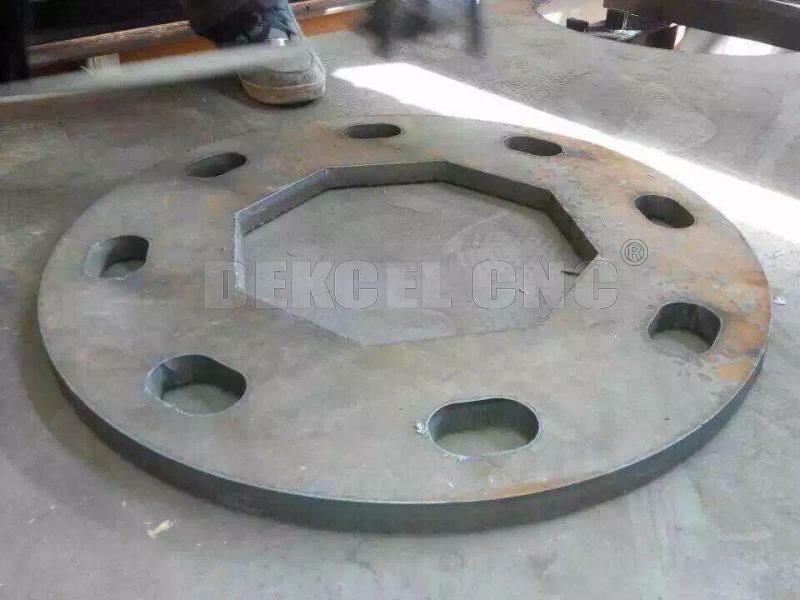

large szie flame plasma metal cutting sample

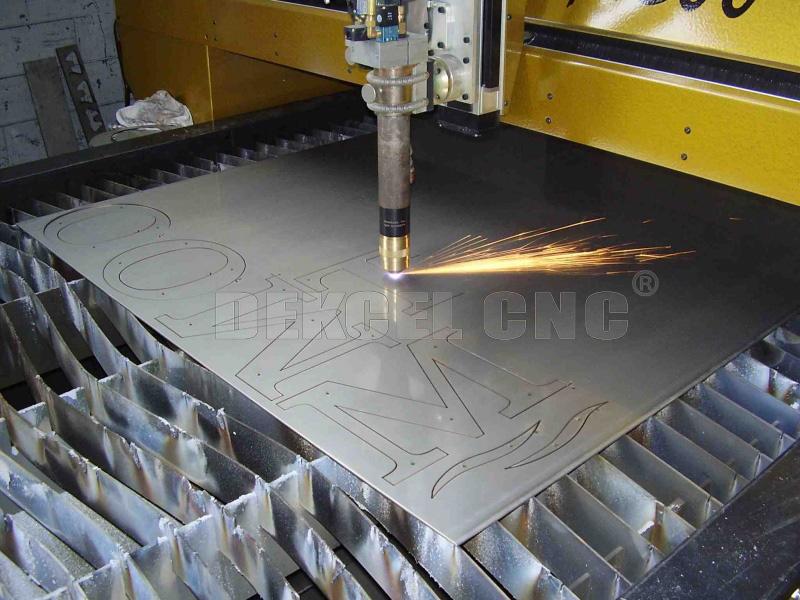

flame plasma cutter machine sample

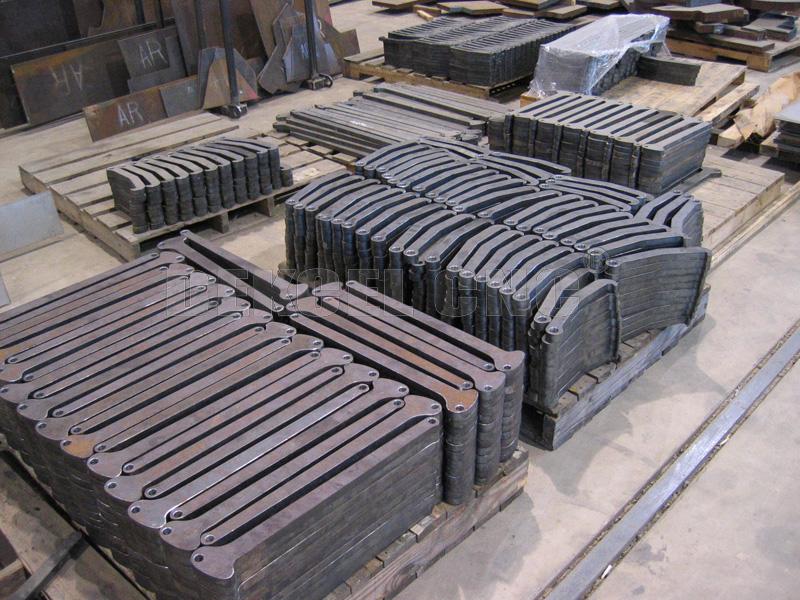

gantry type plasma cutter machine sample

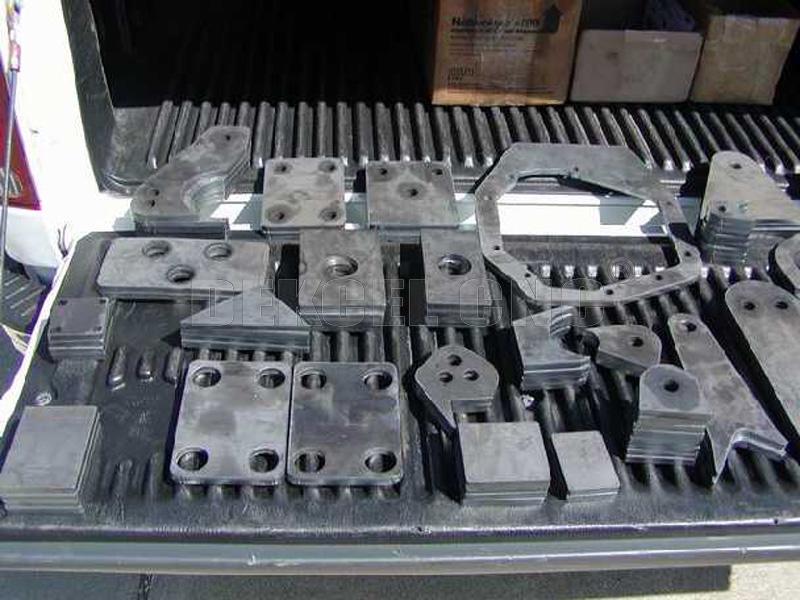

cnc flame plasma cutter machine samples
