Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-1325P
DEKCEL
023
Cnc plasma cutting machine features
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.
3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy
good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
4. And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.
5. Cutting speed, high accuracy and low cost.
6. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated
file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk
exchange control system processing files, easy to operate.
8. Plasma torch power supply and supporting all famous brands, a number of national patents by the
manufacturers.
Technical Data of cnc plasma cutting machine
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300mmx2500mm |
| 2 | plasma power supply | 65A/100A/160A/200A |
| 3 | Cutting thickness | (65A)0.5-4mm;(100A)4-6mm;(120A)6~8mm;(160A)8~10mm;(200A)16~25mm |
| 4 | X,Y axis | gear transmission, HIWIN square guide rail |
| 5 | X,Y Traveling Positioning Accuracy | ±0.02/300mm |
| 6 | Cutting Speed | 0-8000mm/min |
| 7 | Plasma Generator | Huayuan/Hypertherm |
| 8 | Frame | Welded Structure |
| 9 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 10 | Working Form | Untouched Arc Striking |
| 11 | Working Voltage | 3-Phase 380V(or customized) |
| 12 | Control system | Start control system(optional: DSP) |
| 13 | Software | Fastcam |
| 14 | Document Transmission Form | USB Interface |
| 15 | Drive Motors | Stepper System (optional:servo motor) |
| 16 | optional | (1).USA hyepertherm plasma power (2).Can select working size ,such as 1500*3000mm, 2000*3000mm,2000*4000mm,2000*6000mm (3).Driver system:can select Leadshine hybrid servo motors and drivers,or Delta servo drivers,or YASKAWA servo motors and drivers |

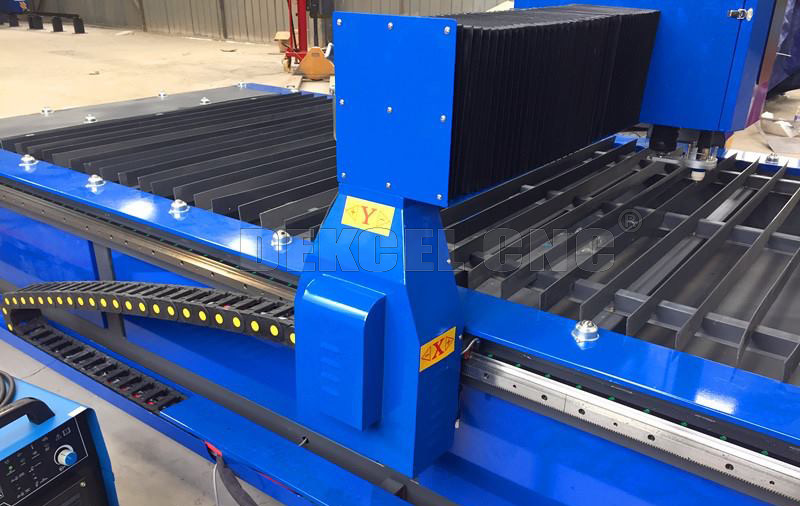

Plasma cutting machine heavy body frame

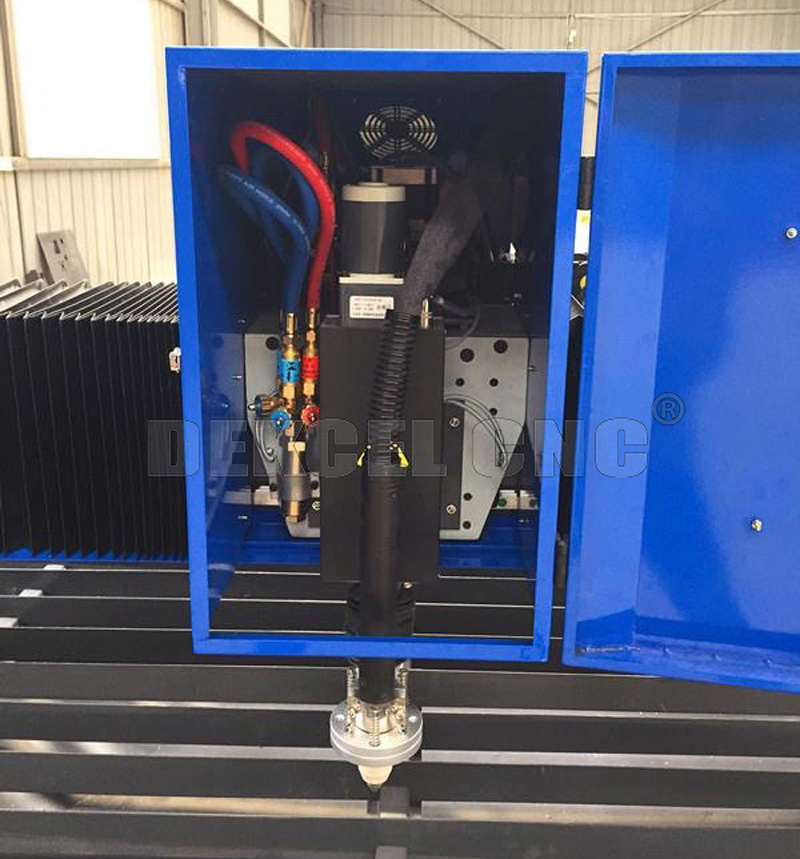

Cnc plasma cutting head

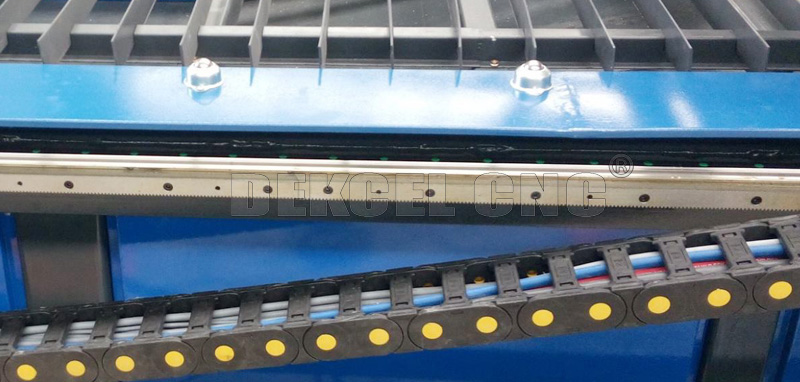

Cnc plasma cutting machine Hiwin square rails
Cnc plasma control system

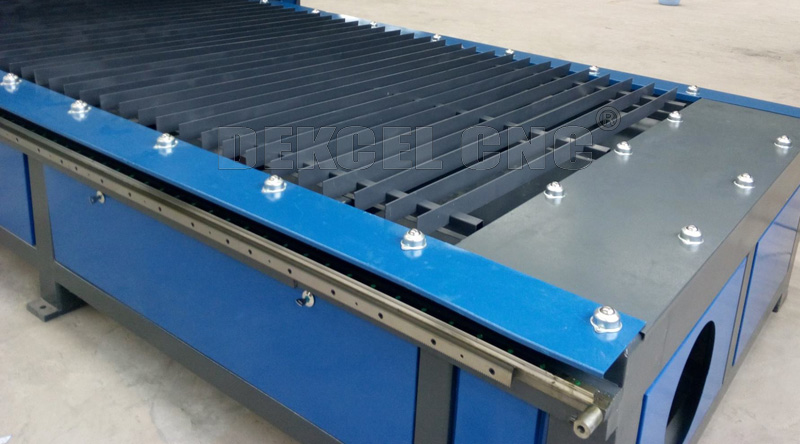

Knife table

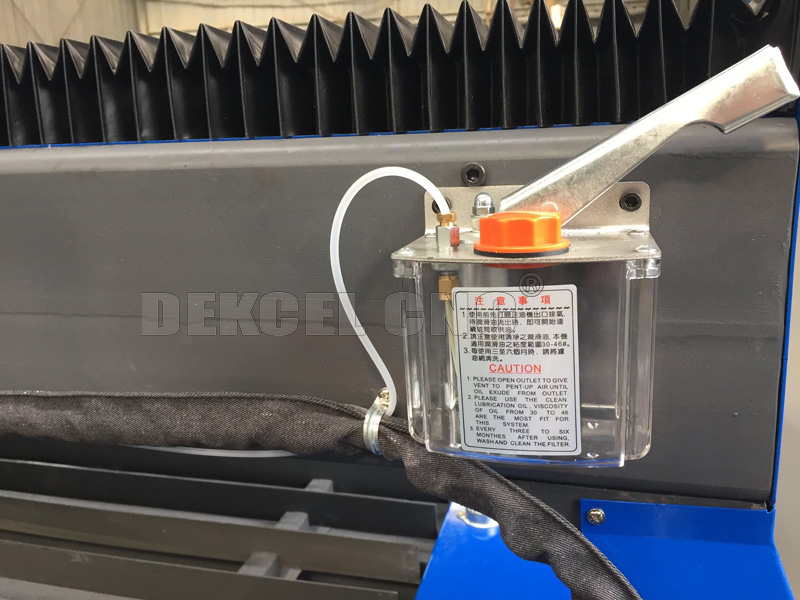

Cnc plasma rails lubrication system

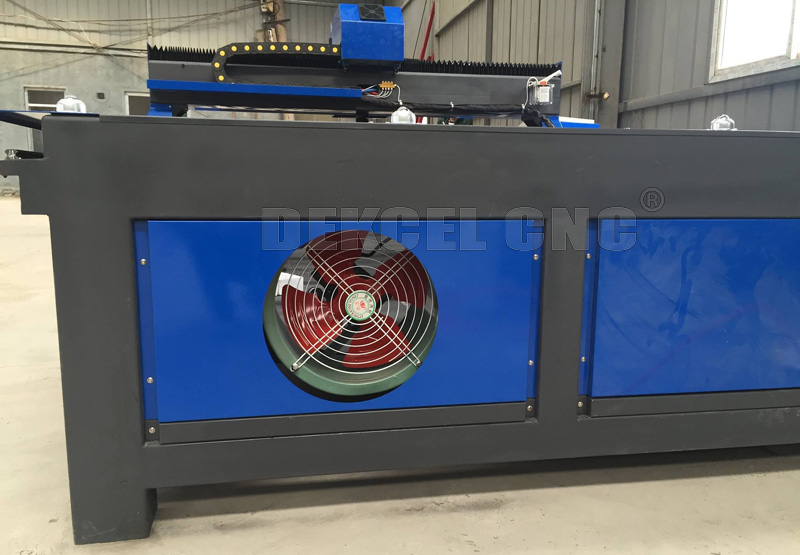

Plasma cutting machine dust exhaust fan
Metal sheet feeding wheel for cnc plasma
