Hot sale color fiber laser marking machine for SS

Dekcel hot sale color fiber laser marking machine for SS can do black and white marking on most metals,like SS304 sheet , black marking on anodized aluminum, color marking on stainless steel and titanium.
Quantity:
Inquire

  • DEK-20W Mopa

  • DEKCEL

  • 069

Color laser marking machine for SS main advantages
1)  High Precision: Upto 0.0012mm, bring you the fantastic and satisfied marking effect.
2)  Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
3)  No Consumables: One Fiber marker can work for more than 10 years without any consumables.
4)  High Speed: 7000mm / second, is 3 to 5 times above that of traditional products.
5)  The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path.
6)  Low consumption:<500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
7)  Original JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions.
8)  High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.
9)  Long lifespan of Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs)
10)  Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..
11)  Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
12)  Deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect

Color fiber laser marking machine for SS Main Features
Suntop color laser marking machine can do black and white marking on most metals and plastics, black marking on anodized aluminum, color marking on stainless steel and titanium. Laser marking logo, text, figure, photo, QR code, bar code, serial number, on metal and plastic parts and tools. Laser marking stainless steel, brass, aluminum ( iPhone, iPad ), anodized aluminum, iron, gold, silver, titanium and other metals. Laser marking plastic, ABS, acrylic, Nylon, pvc, marble, ceramic etc.

Hot sale color fiber laser marking machine for SS main parameters

Type  DEK-20W-Mopa
 Power 20W
 Laser Wavelength 1064nm
 Marking Area 110mm*110mm
 Optional Marking Area 110mm*110mm / 200mm*200mm / 300mm*300mm
 Marking Depth ≤1mm
 Marking Speed 7000mm/s
 Minimum Line Width 0.015mm
 Minimum Character 0.2mm
 Repeated Precision ±0.003mm
 Controller (Software--EzCad) JCZ from China
 Life-span of Fiber Laser Module 100 000-200 000 hours
 Beam Quality M2 <1.6
 Focus Spot Diameter <0.01mm
 Power Stability (8h) <±1.5%rms
 System Operation Environment Windows XP / Windows 7 / Windows 8
 Cooling Mode Air cooling--Built-in
 Temperature of Operation Environment 15ºC~35ºC
 Voltage 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH
 Power Requirement <500W
 Computer Requested There will be one PC with the machine
 Dimension (L*W*H) 550mm*600mm*600mm
 Package Size 450mm*750mm*850mm
 Net Weight 50KG
 Gross Weight 70KG
 Optional (Not free of charge) Rotary Device, Moving Table, other customized Automatic Matching System

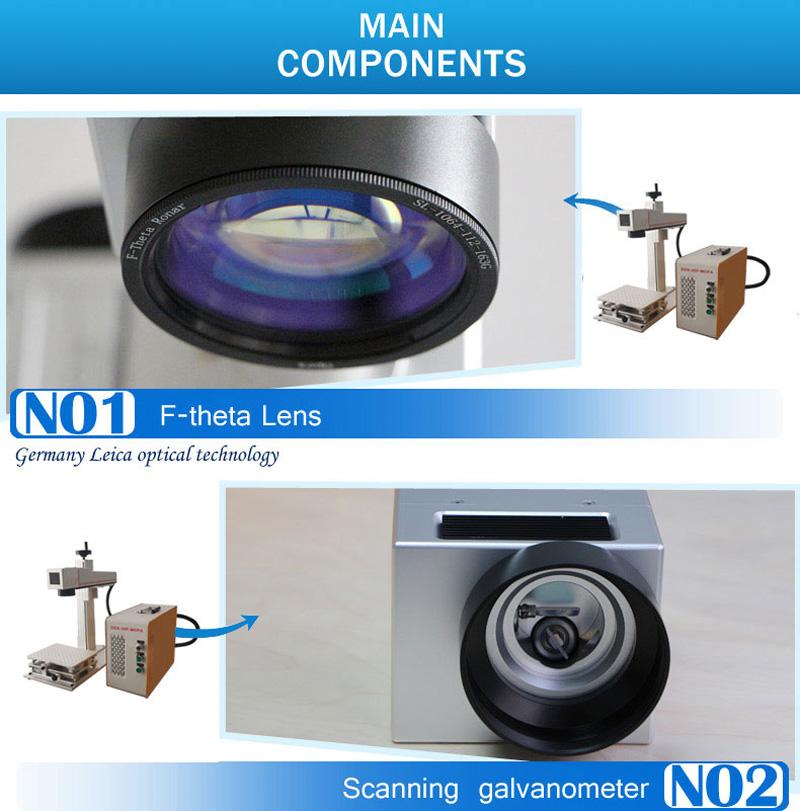

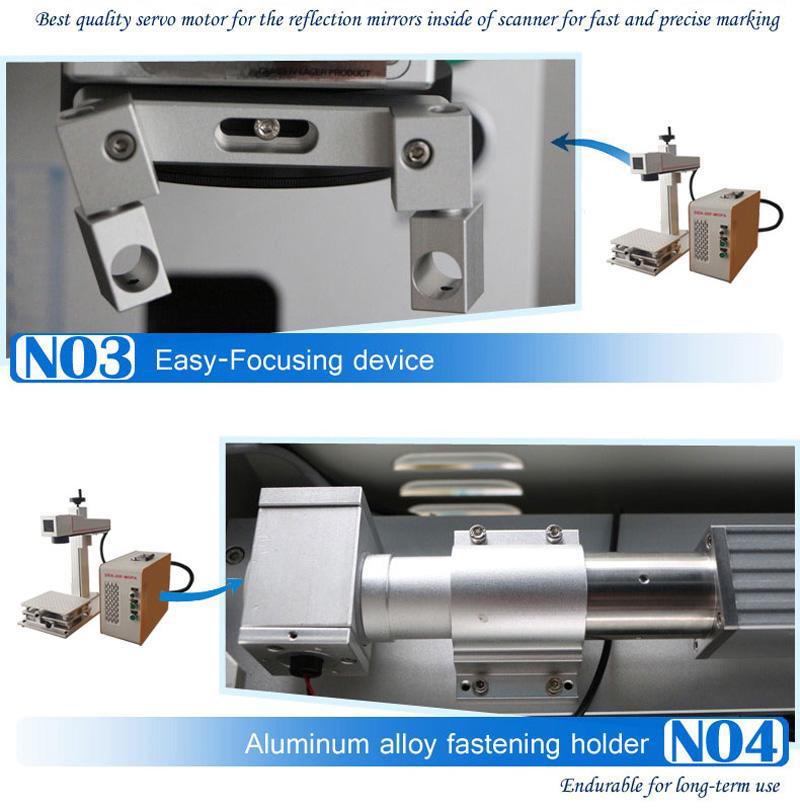

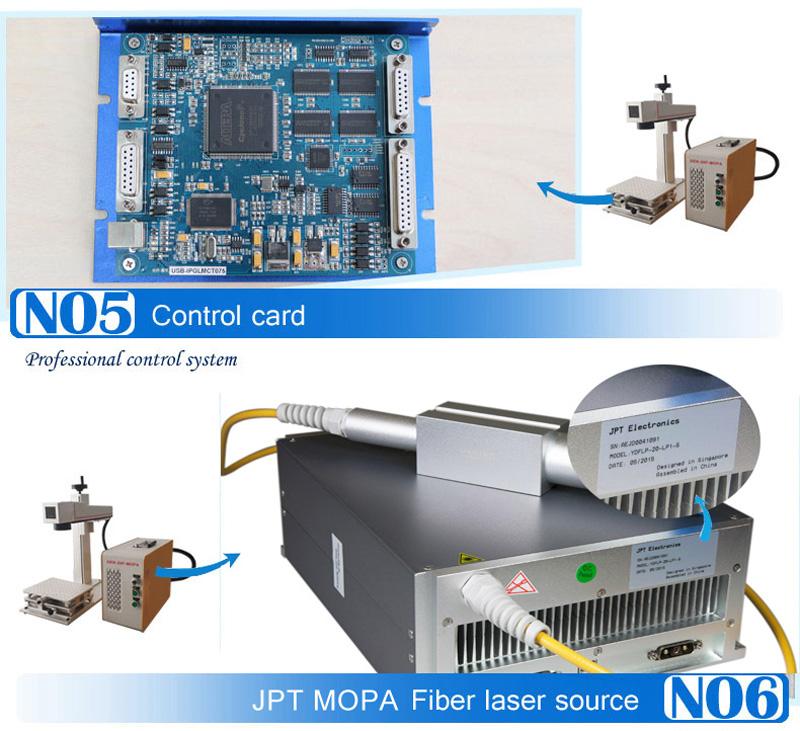

Detail parts of color fiber laser marking machine for SS

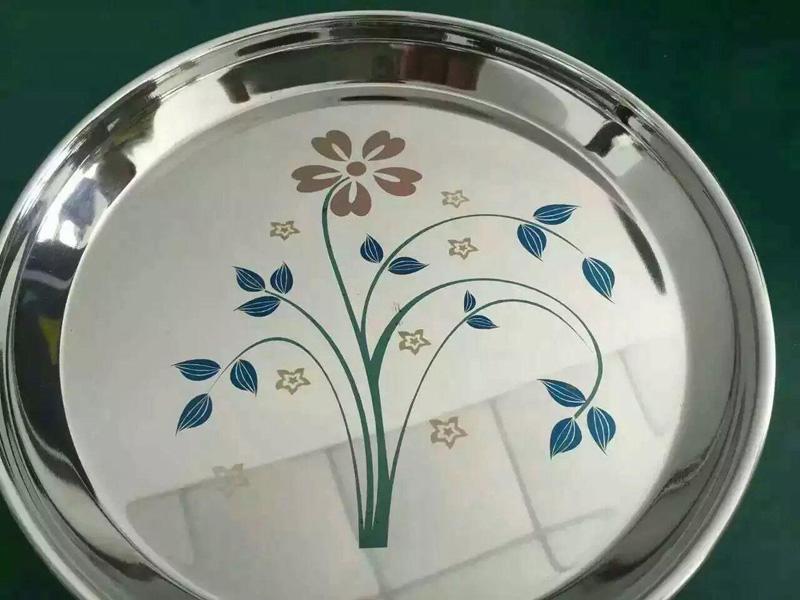

color laser marking for ss
color laser marking SS

color fiber laser marking machine for ss


Application of hot sale color fiber laser marking machine for SS
Mainly applied to the high precision marking fields such as :Metals, alloys and oxides, ABS, epoxy resin, ink, etc., are widely used in electronic components, electrical appliances,jewelry, glasses, hardware, auto parts, communication products, plastic buttons, integrated circuit (IC), a variety ofbearings and bearing industry and other industries.

Electrical Engineering and Electrical part and component
Mobile (Cover,battery,keyboard, IPhone Case)
Jewellery(Ring,pendant,bracelet),eyeglass,clocks and craft
Building materials, PVC pipe
Car motor, car spare part
Insturment and meters and cutting tool
Plastic case
Hardware fitting and accessory
Sanitary appliance
Food and beverage
Medicine package and medical instrument
Solar Photoelectrical PV industry

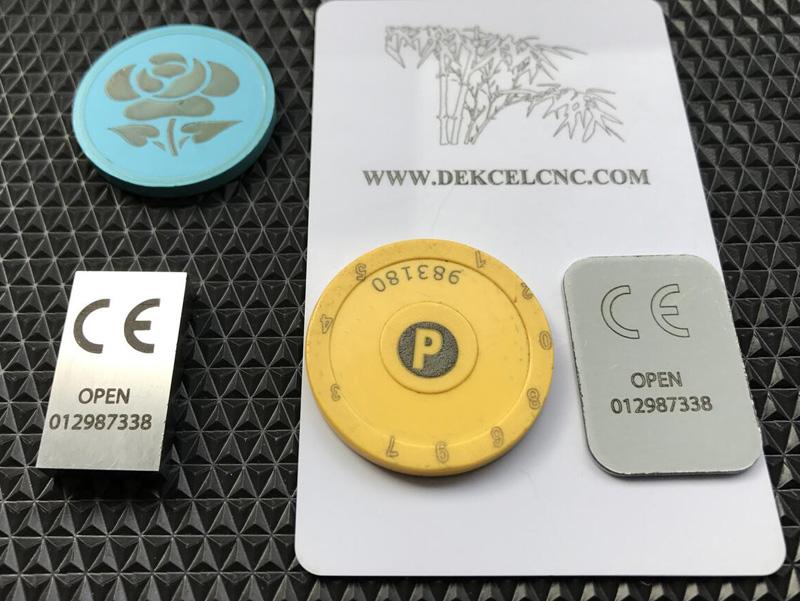

color fiber laser marking for ss
laser marking machine for plastic

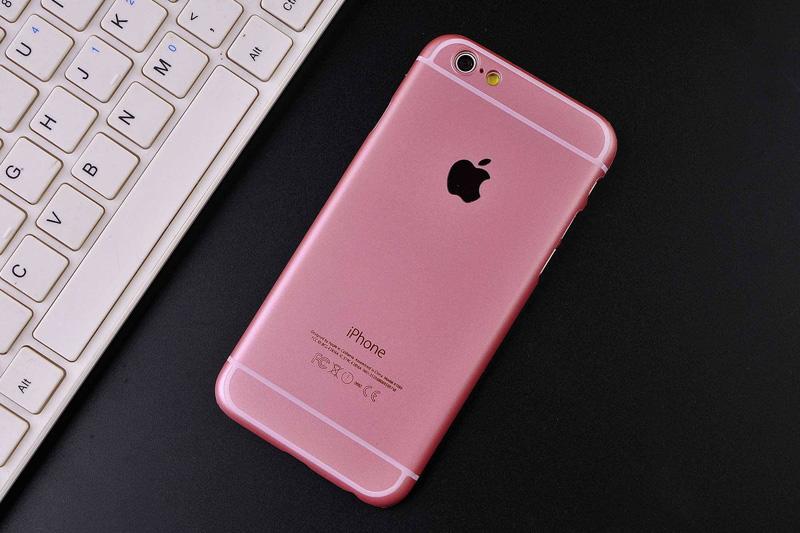

mopa fiber laser marking machine for iphone case
