Customized cnc plasma machine for cutting carbon steel plates and pipes

cnc plasma cutter for carbon steel is very popular for metal processing industry. normally, 45A can cut 8mm carbon steel, 65A can cut 12mm, 85A cut 16mm, 105A cut 22mm, 125A can cut 25mm and 200A can cut 30mm carbon steel .

Quantity:
  • DEK-1325
  • DEKCELCNC

Customized cnc plasma machine for cutting carbon steel plates and pipes

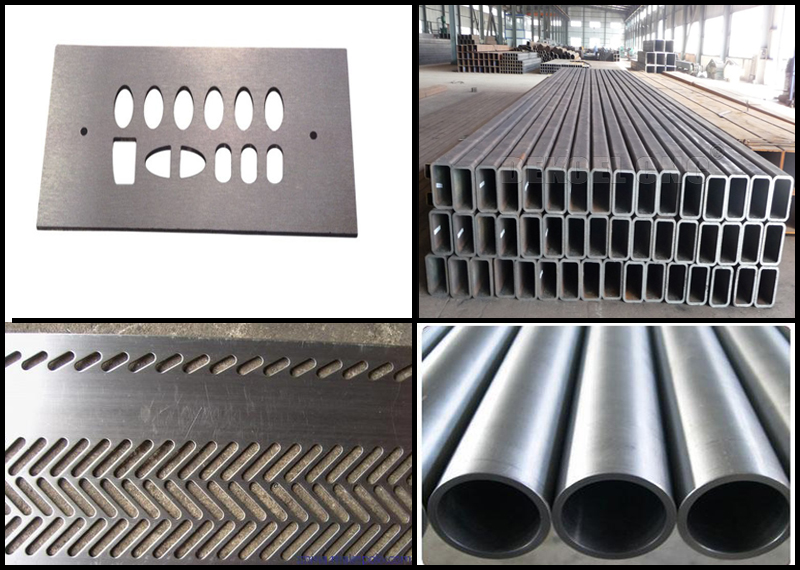

cnc plasma machine cutting carbon steel.jpg

Usually, a good quality plasma power can provide higher accuracy. But even using the same type plasma power, different operation will produce parts of different quality. It is because there are still improved place for cnc plasma power, especially cutting thick carbon steel. Dekcel would like to recommend you the CNC Plasma Cutter for sale with good price.


In order to finish the carbon steel cutting work perfectly, users need to pay attention to the usage and maintenance of cnc plasma power supply. The notes are as follows.


1. It is better to be in accordance with the cutting table parameters when cutting carbon steel, such as arc pressure, cutting height, perforation height, etc.;


2. Ensure sufficient gas pressure and flow. The pressure at normal cutting level shall be no less than 9 kg (airborne power supply is not less than 6 kg).


3. Please ensure the cnc plasma machine has the access to dissipate heat before stopping the cutting process. How to do it? Just need to pay attention to the noise of fan which is inside of the control box. As long as it is becoming low, then it is ok for users to stop using the cnc machine for cutting carbon steel.


4.Users are supposed to clean the whole cnc plasma machine every two month to guarantee the normal operation. Generally speaking, we need to use air compressor to blow the dust and fume.


Cnc laser power parameters of domestic and American brands


Huayuan power supply

45A    6 mm carbon steel

63A    8 mm carbon steel

100A   15mm carbon steel

160A   20mm carbon steel


American Hypertherm power supply


45A      8mm carbon steel   5mm stainless steel

65A      12mm carbon steel  8mm stainless steel

85A      16mm carbon steel  12mm stainless steel

105A     22mm carbon steel  18mm stainless steel

125A     25mm carbon steel   20mm stainless steel

200A     30mm carbon steel   25mm stainless steel


Hope this article will help you. If you have any questions, please contact us as soon as possible. Jinan Dekcel Cnc Euipment Co., Ltd will always be there for you.
