Conveyor Belts Fiber Laser Marking Machine for Pen

Conveyor Belts Fiber Laser Marking Machine is mainly for products surface marking, the feeding system can improve the speed and working effective. Time saving and laber saving,Specially used for marking on pen,bearing etc

Quantity:
  • DEK-20W-F
  • DEKCEL
  • 058

pen laser marking machine

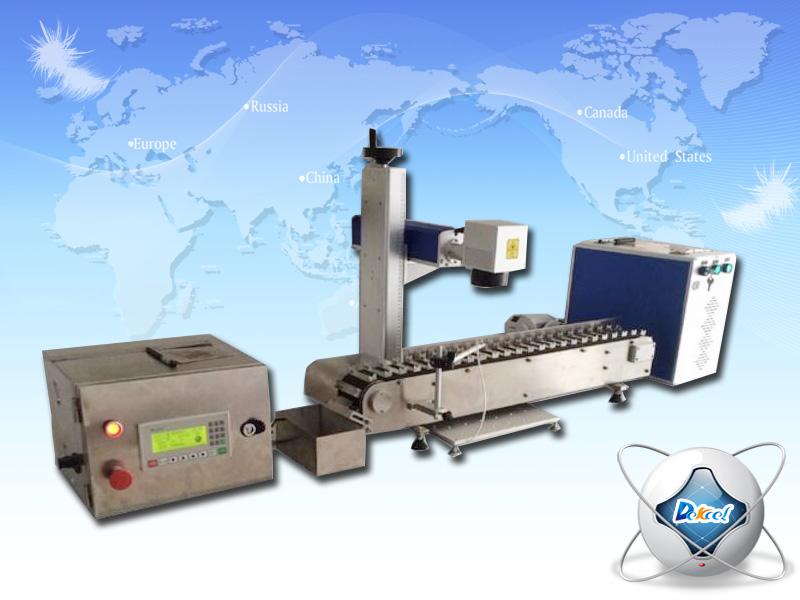

dekcel cnc pen marking machines

Fiber laser marking machine for pen description
Conveyor Belts Laser Marking Machine is the new generation Laser Marking System, adopt industrial standardization module design, full set of imported metal sealed radiation frequency lasers, high speed scanning vibrating lens and extending focusing system, high stability, anti-intervention industrial computer system, high precise vertical up-and-down working table.

The machine can work on a continuous 24 working hours in high stability, high precision, high speed. The patent software base on win98/win me operational software. Laser Marking Machine can adjust the focus length by electronic motor and easy to operate and Laser Marking Service has won good feedback from our customers.

Fiber laser marking machine for pen features and advantages
* Laser tube: equipped with original imported IPG laser  or stable domestic generator
* Laser tube life span: be able to reach 45000 hours, about 6 years, most important, it can be used repeatedly after filling in the air.
* Cooling type: air cooling, which can ensure machine work stablely.
* Beam quality: 0.07mm, which is suitable for high precision material engraving/cutting/marking
* High stability: whole sealing metal tube, adopt 30V low-voltage power supply, which make sure machine work stable and safe.
* Safety: customer don't worry about tubes broken and  fragile
* Laser power control: 0~100% set by software
* Engraving depth ≤5mm (can be controlled by laser energy)
* Low run cost and maintance

Fiber laser marking machine for pen technical parameters

Model

DEK-20W-F

Laser Power

10w/20w/30w(IPG)

Laser Wavelength

1064nm

Repetition Rate

≤100KHz

Marking Range

300*300mm-600*600mm

Min.Line Width

0.1mm

Min.Character

1.0mm

Marking Depth

0~0.6mm

Marking Line Speed

≤7000mm/s

Repeatability Accurancy

±0.02mm

Response Time

0.5ms

Graphic Format Support

BMP , JPG, GIF, TGA, PNG, TIF, AI, DXF, DST,PLT, etc.

Working Voltage

220V/Single/50Hz/15A

Unit Power

<1.5kw

Cooling System

Water cooling

Net Weight

215KG

Working humidity

2050*1050*1520mm

Customized

online fly marking, 3D dynamic marking, Rotary marking, according to customer request,




flying fiber laser marking machine

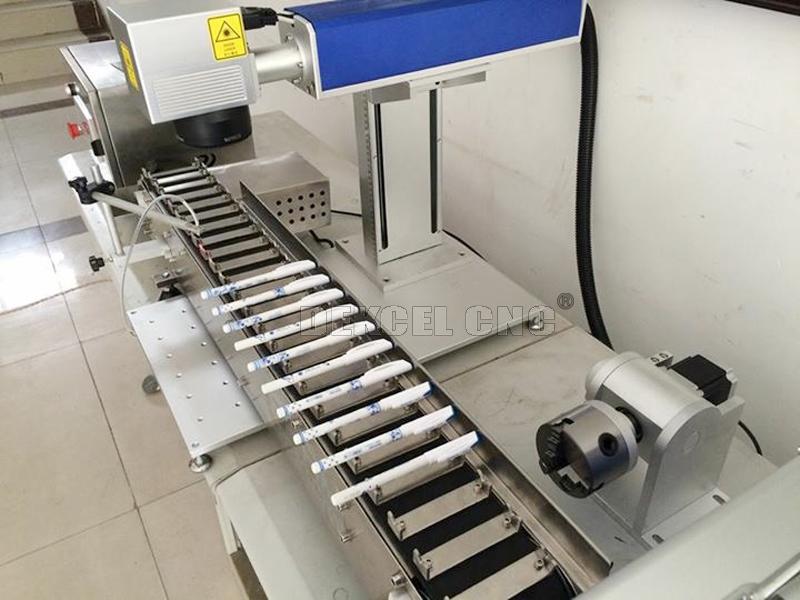

fiber laser marking machine for pen

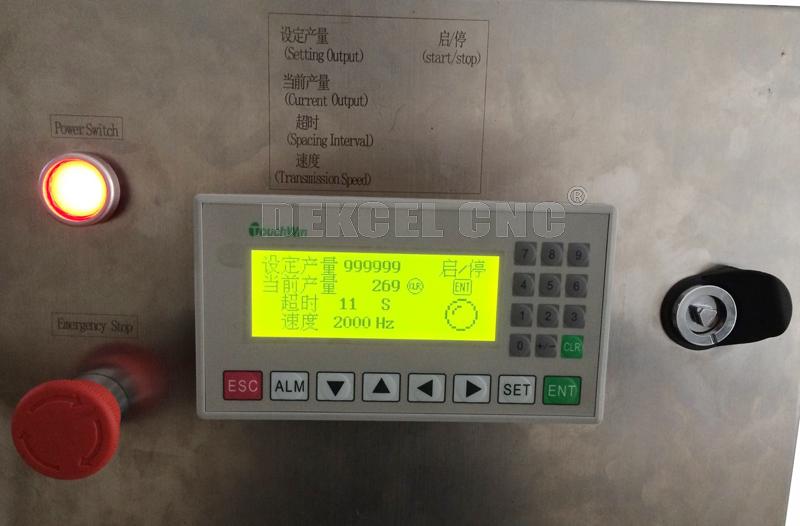

Flying fiber laser marking machine for pen control system

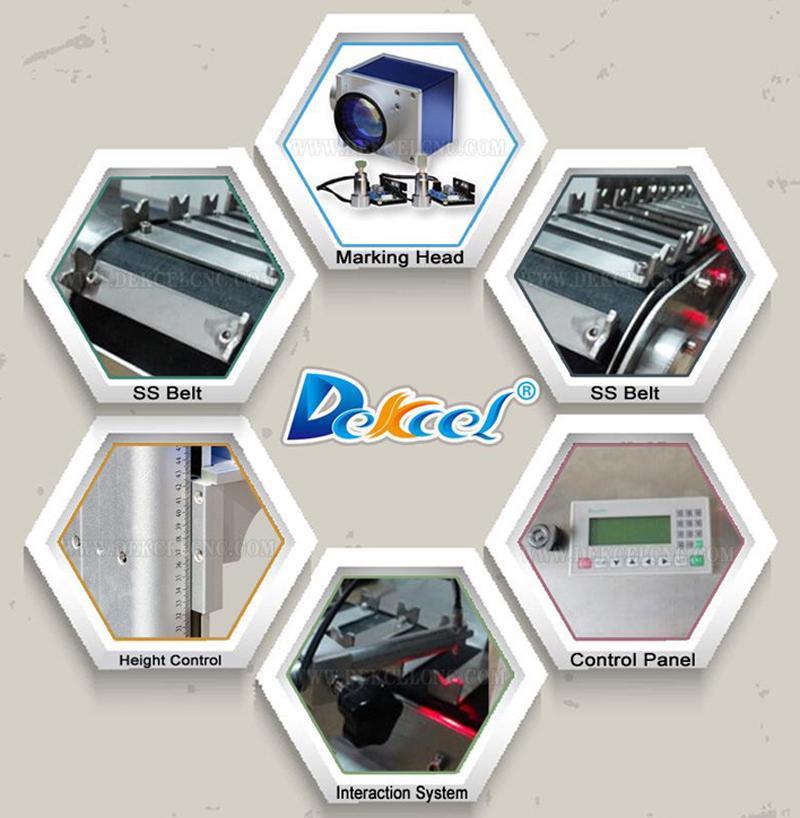

pen fiber laser marking machine detail parts

Applicable Materials:
Conveyor Belts Fiber Laser Marking Machine for pen is suitable for nonmetal materials such as leather, cloth, wood, bamboo, paper, organic materials, plastic, epoxy resin etc.

Applicable Industry:
Conveyor Belts Fiber Laser Marking Machine for pen is suitable for electronic components, medicines, food, drinking package, leather products, rag trade, woodworks, craftworks and package.
dekcel cnc pen marking machines samples

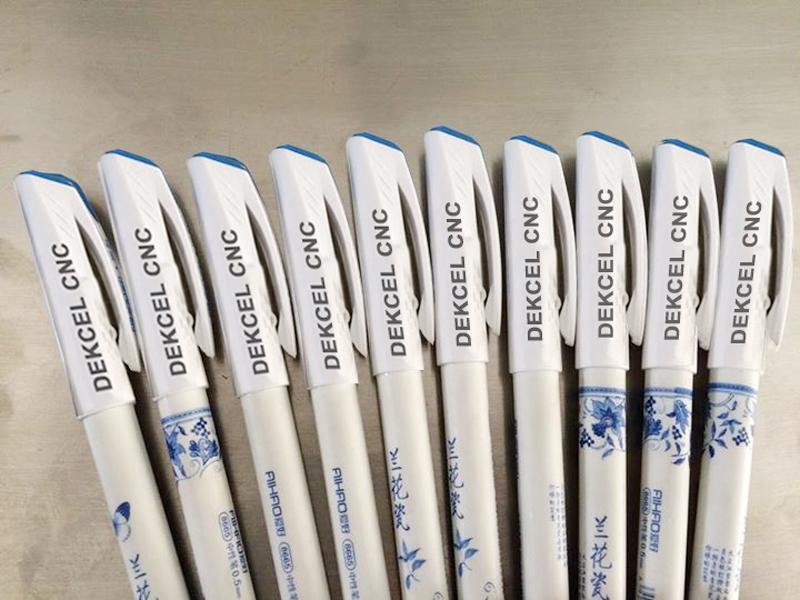

pen fiber laser marking machine
