DEK-1325H
DEKCEL
016

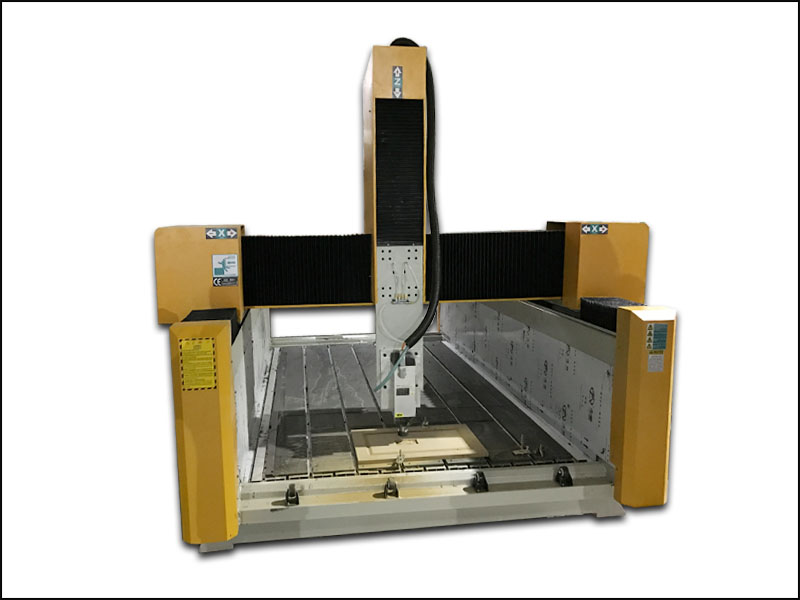

High Z axis wood mold engraving machine Features
1.Effective working area :1300x2500x600mm
2, China air cooling spindle: 6.0kw,option HSD spindle
3, 30 Taiwan HINWIN linear guide
4.Taiwan DELTA inverter:7.5kw,E-type
5,;Leadshine Hybrid servo motor and drivers.Option Japan Yaskawa
6, NK300 control system
7, Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
8, Taiwan TBI ball screw with high precision
9, Divided structure bed structure ,Fixing with screws
10,Omron limit switch
Parameter of wood mold engraving machine
| NO. | Description | Parameter |
| 1 | X,Y,Z working area | 1300*2500*600mm |
| 2 | Drive and motor | stepper motor/driver; yaskawa servo motor/driver |
| 3 | Spindle | 3kw/4.5kw/6kw watercooling spindle; 3kw/4.5kw/6kw HSD aircooling spindle |
| 4 | Inverter | Delta frequency inverter |
| 5 | Control system | NCstudio/ Mach3/DSP/NK300 controller |
| 6 | X, Y, Z Travelling Positioning Accuracy | ±0.05/300mm |
| 7 | X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| 8 | Frame | Big thickened Steel Square Tubes, thickness up to 8mm |
| 9 | X, Y structure | Rack and pinion, Hiwin square rails on X, Y axis |
| 10 | Z structure | Taiwan TBI Ballscrew, Hiwin square rails on Z axis |
| 11 | Max Rapid Travel Rate | 30,000mm/min |
| 12 | Max working speed | 18,000mm/min |
| 13 | Working voltage | AC220V/380V, single/three phase |
| 14 | Command languages | G code |
| 15 | Running Environment Temperature | 0 degree - 45 degree |
| 16 | Software | Type3 English version; Artcam English version |
| 17 | Net weight | 2100KGS |
| 18 | Gross weight | 2300KGS |
| 19 | Relative Humidity | 30% - 75% |
| 20 | Guarantee | One year from the date of commission |
| 21 | Optional Accessories | Rotary system Mist-cooling system Dust collector/ Dust hoods for three axis Vacuum pump 850w Yaskawa/800W Panasonic Servo motors |
Trade Items of 600mm Z axis wood mold engraving machine
| MOQ | 1 set |
| Package | Standard Plywood Box |
| Delivery Terms | FOB, CIF, EXW, Door to Door ect. |
| Delivery Time | 25 working days after receiving payment |
| Payment Type | T/T, Western Union |
| Supply Ability | 50 sets/month |
| Port | Qingdao, China. |

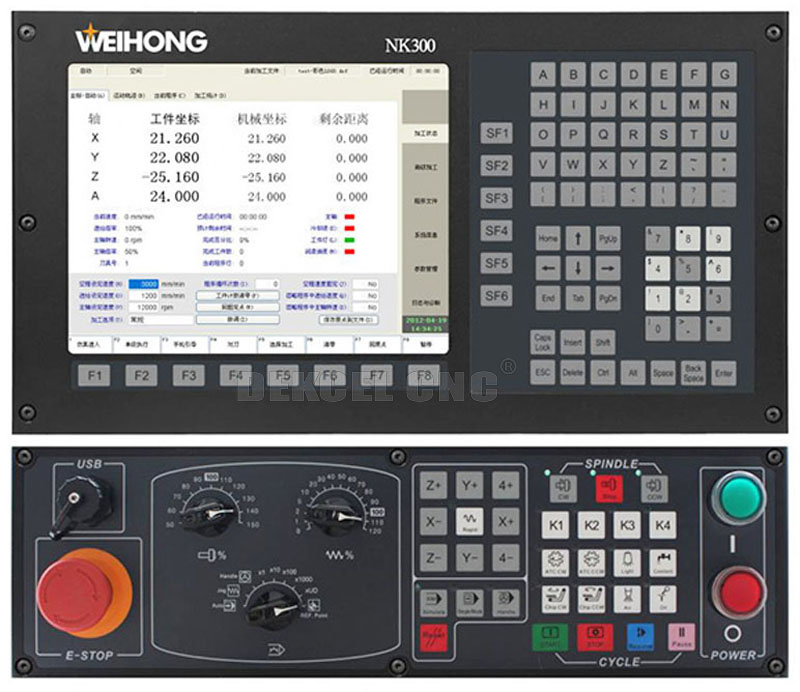

Weihong NK300 control system

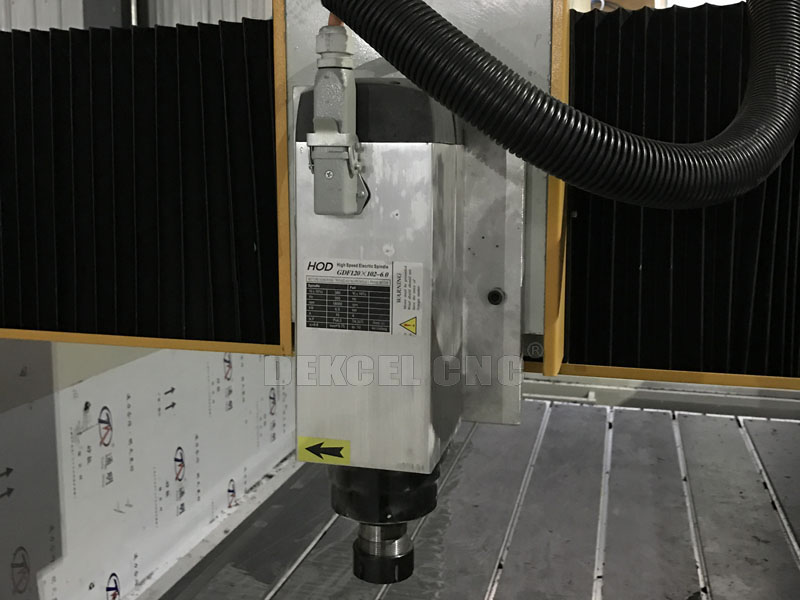

6.0KW air cooling spindle

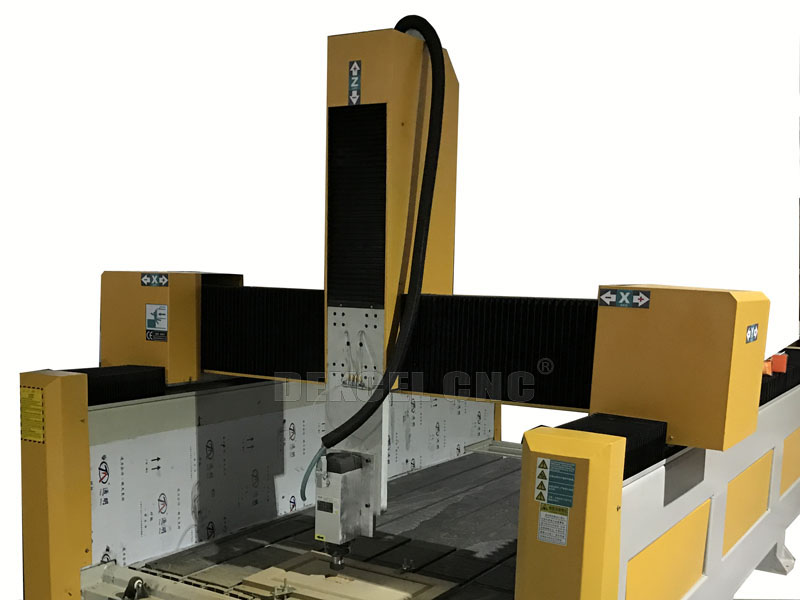

High Z axis can hold thick material

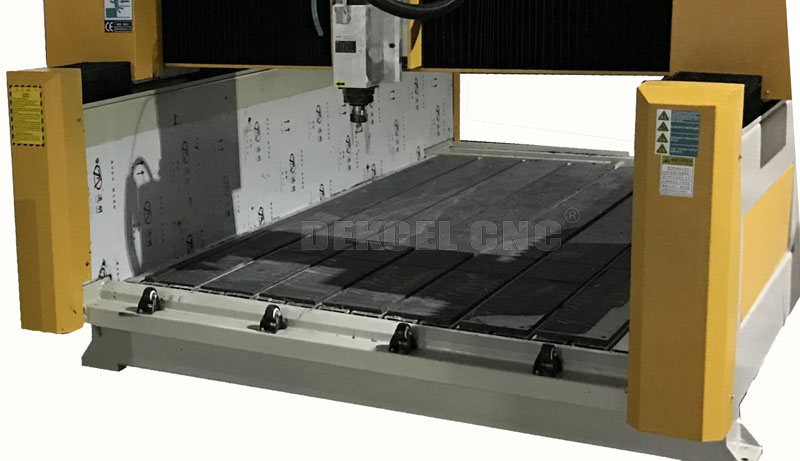

Pulley convenient for loading the material

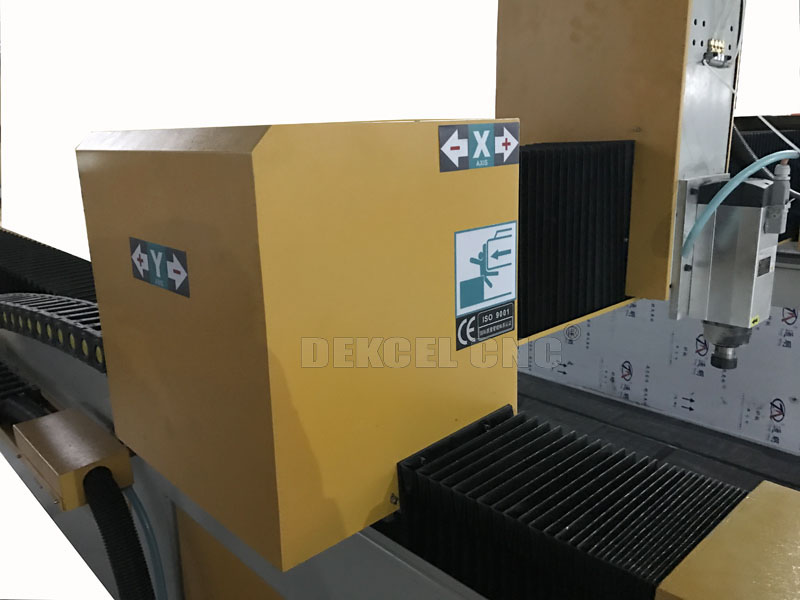

Strong body

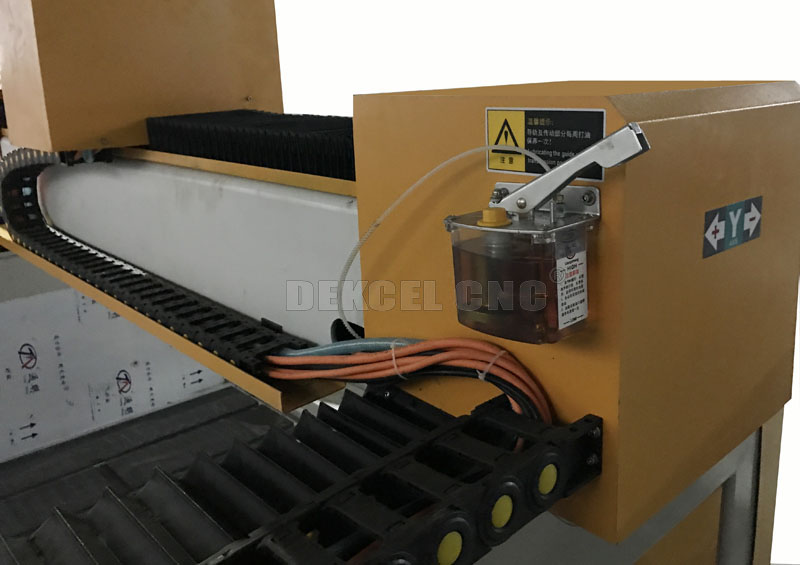

lubrication system

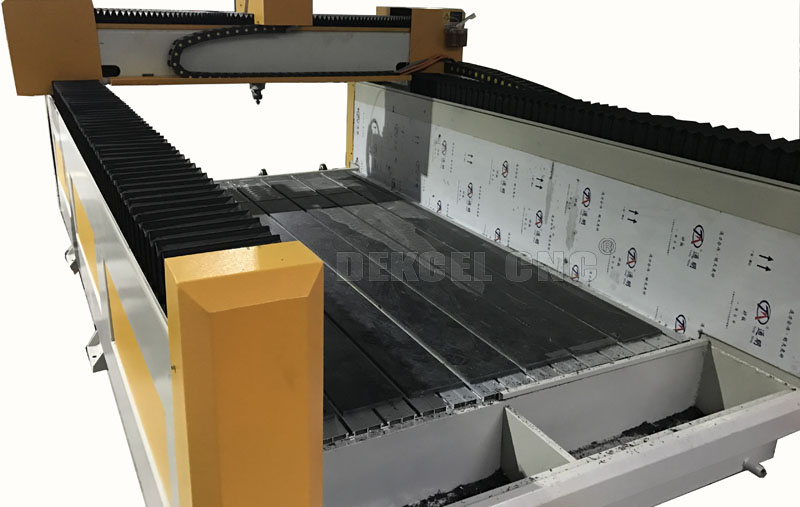

Stainless steel water tank
