20W JPT Mopa Fiber laser color engraving machine

Jinan Dekcel is a professional manufacturer of fiber color laser color engraving machine / marking machine since 2000, and have 7 years experience for over-sea market. 20W JPT Mopa laser source suitable for engraving color on SS sheet.
  • DEK-20W Mopa


  • 081

20W JPT Mopa Fiber laser color engraving machine features
(Marking Area:110*110mm,200*200mm optional)
1> We are Professional manufacturer of fiber color laser color engraving machine / marking machine since 2000, and have 7 years experience for over-sea market.
2> Adopt quality parts such as Germany IPG / China Raycus /  JPT Mopa fiber laser source.
3> Application industry: all metal (steel, aluminum, cooper, alloy, gold, silver, etc) and some of plastic objects. Such as electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, tools, accessories, knives, eyeglasses, clocks,
jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Outstanding Features:  1. Colorful marking on stainless steel
                                          2. Black marking on Aluminum(such as iphone case)
4> Fiber color laser marking machine will come with computer, professional software, and full english user guider.
5> Warranty period: 2 years.
6> Certificate: CE / FDA.
7> Delivery time: 5-7 working days

Fiber laser color engraving machine advantage
1) Under operation system: windowns xp , windowns 7 ,windows8/10
2) Support Characters , digital, series NO, Date codes
3) Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,One-Dimensional bar code, Two-Dimensional bar code , and so on
4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
5) Common vector images are supported. (ai, dxf, dst, plt…)
6) Flexible variable text : changes the text real time while in laser processing . Excel datasheet is supported.
7) High quality fiber laser system
8) Excellent optical mode, long operating life, up to 100,000HS
9) The highest electro-optical conversion efficiency, up to 80%, but gross power less than 600W
10) Small size, steady, without maintenance, easy to operate
11) High precision, suited for fine processing on all metal and some non-metal.
12) This machine adapts the fiber laser and has high electro- optical conversion rate, the quality of laser beam is good,cooling withair- cooling methods, it has smaller shape, low power and much more energy-efficient.
13) Divergent Angle is about a quarter of the pump laser semiconducto, especially mainly used in precise, fine marking,low using cost, electro-optic conversion efficiency is up to 30%
Mopa fiber laser color engraving machine technical parameter
Model       DEK-Fiber-20W
Laser  Power 20W JPT Mopa
Working  Area  110*110mm/ 200*200mm
Cooling Mode Air Cooling
Laser Wavelength   10.64um
Response Time 0.5ms
Frequency of pulse 20-100KHz
Marking Depth ≤0.4mm
Marking Speed ≤8000mm/s
Marking Lines 1-10 lines
Minimum Line Width 0.01mm
Minimum Character 0.15mm
Repeatability Accuracy ±0.002mm
Resolution Ratio 0.1mm
Marking Content Text, pattern, date, bar code, etc
Operation System Microsoft Windows XP or Windows 2000
Control Software EZCAD Control Software
Graphic Format Supported BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power ≤1.2KW
Operation Temperature 5°C-40°C
Relative Moisture ≤ 90%, no fog
Supply Voltage 220V/50Hz

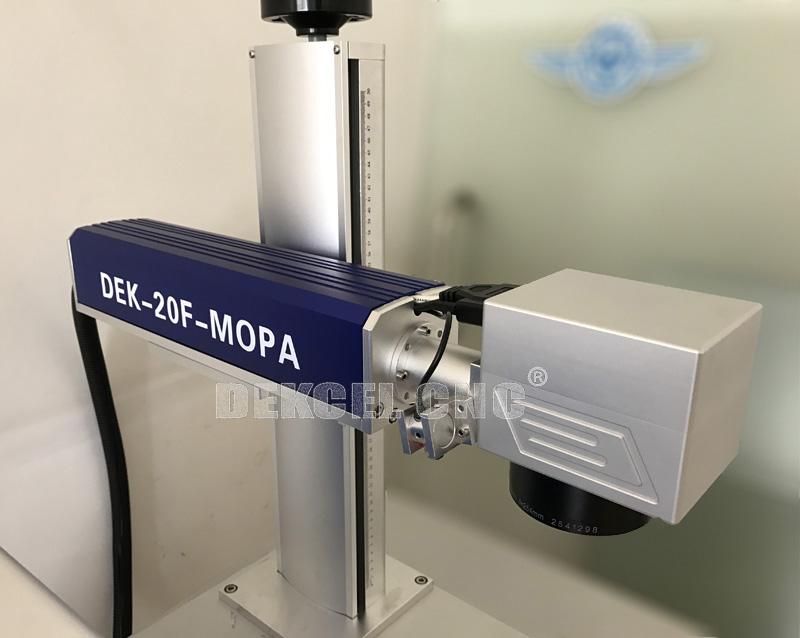

20W fiber laser marking machine

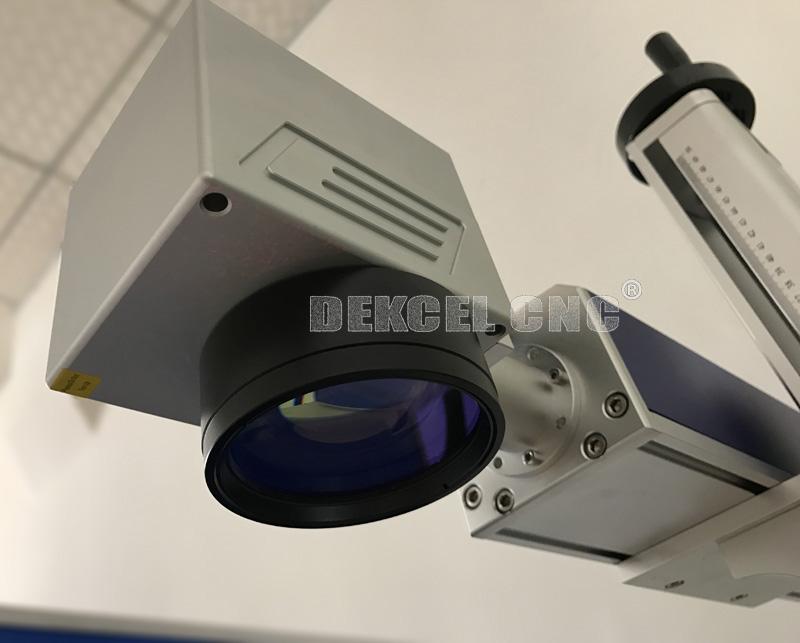

High speed galvanometer lens

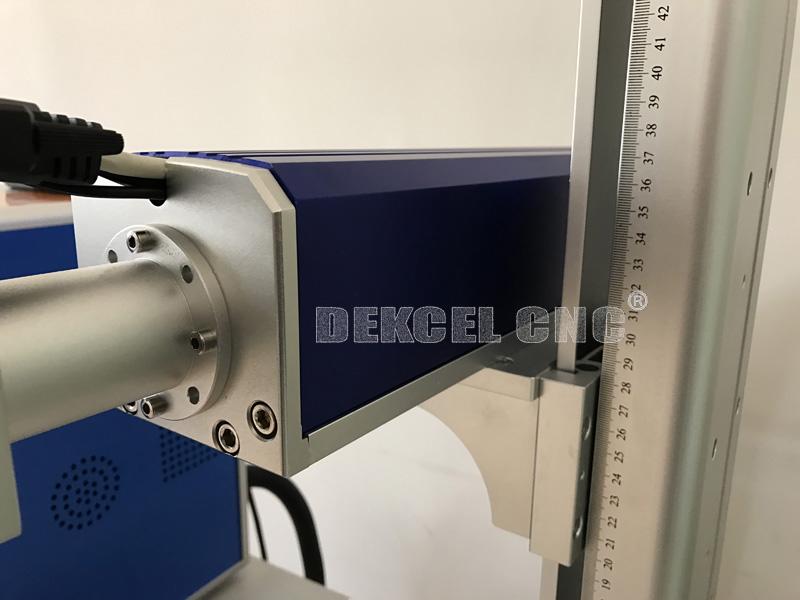

focus length adjust of fiber laser engraving machine

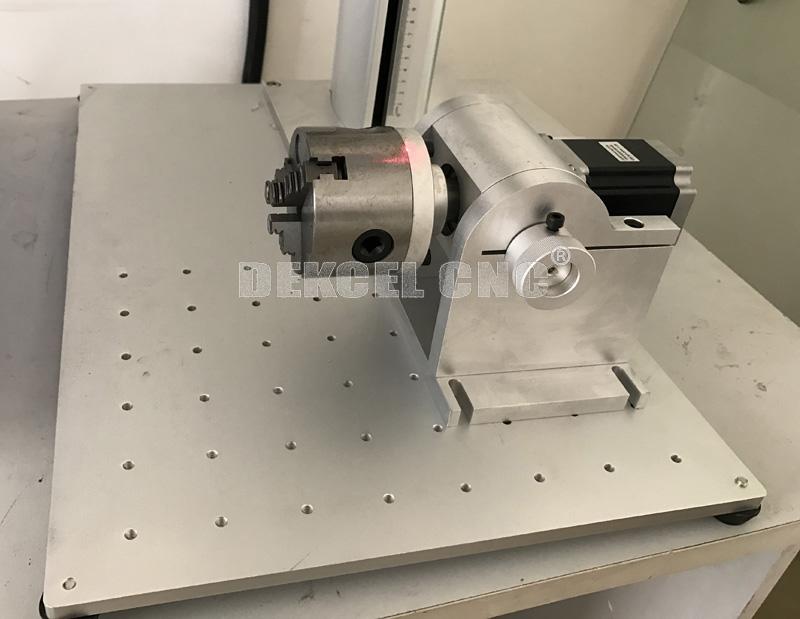

rotary system of fiber laser marking machine

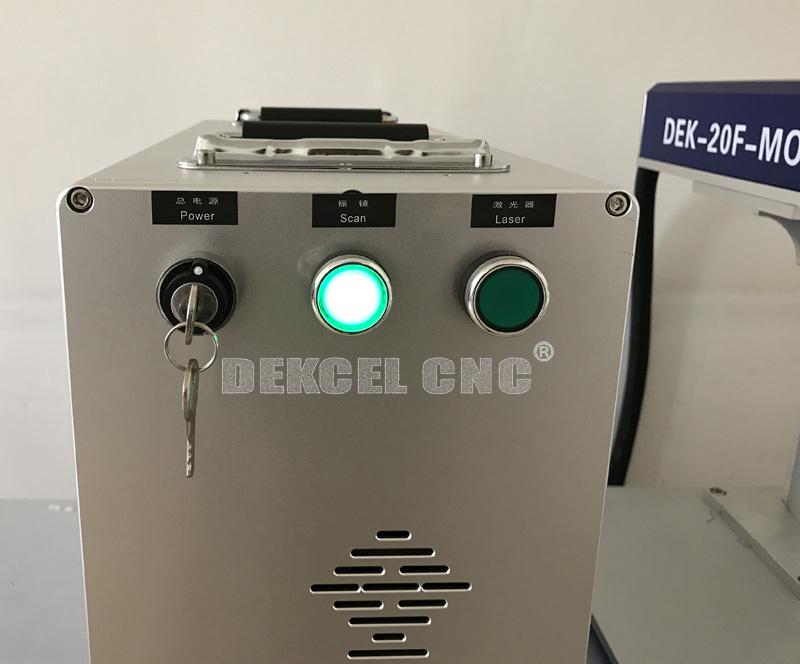

switch button of color laser engraving machine

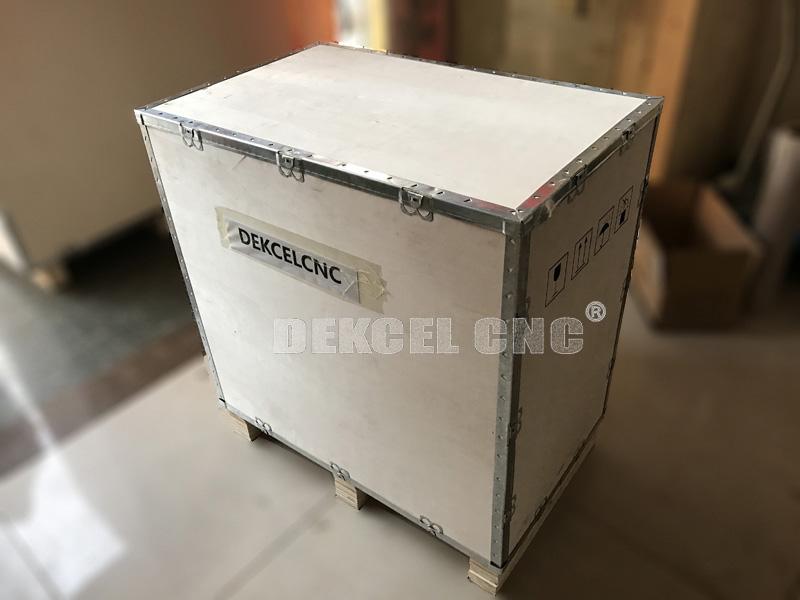

fiber color engraving machine packing


Fuctions of Mopa fiber laser engraving machine
Marking / printing / engraving on many type of metal material and some non metallic material.
Marking different designed text, symbol, bpattern, bar code, 2D code, serial number.Suitable for online marking.
Applied Materials
1. Many type of metals :Gold, copper, aluminum, stainless steel color engraving, chrome, Brass .etc
2. Alloy and Metal oxides
3. Some non-metallic materials: Silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink ,Plating, Spraying, Coating film and special surface treatment.

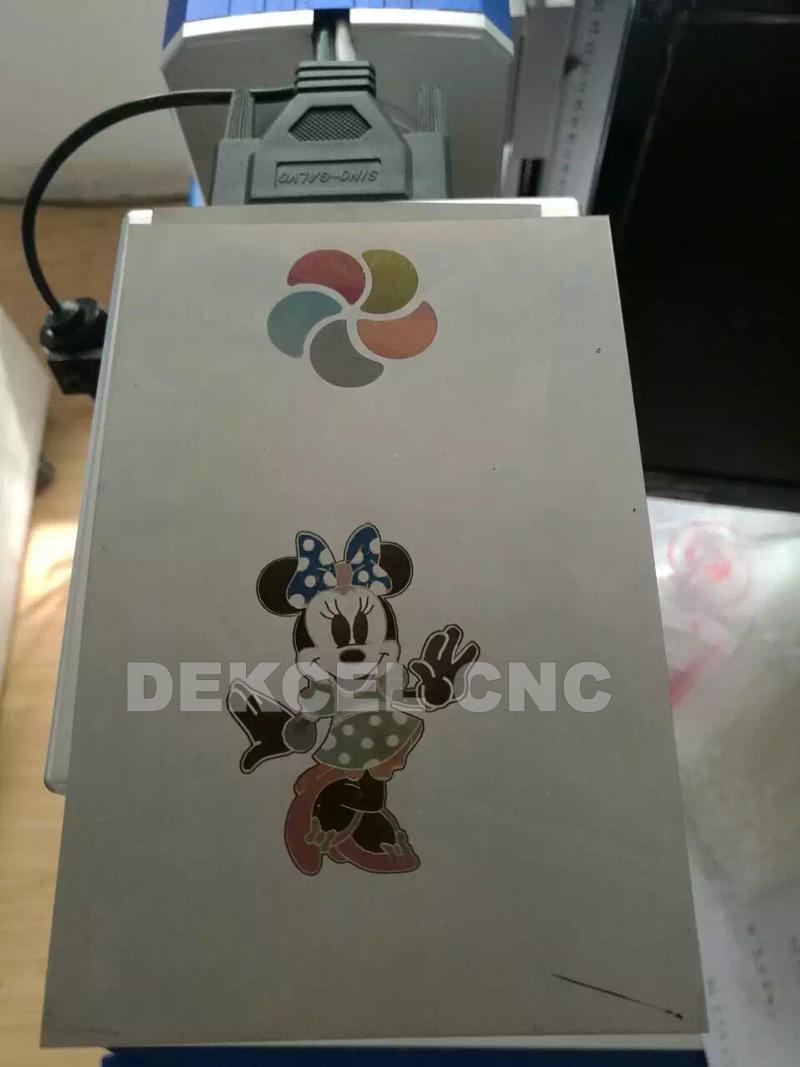

mopa color engraving machine

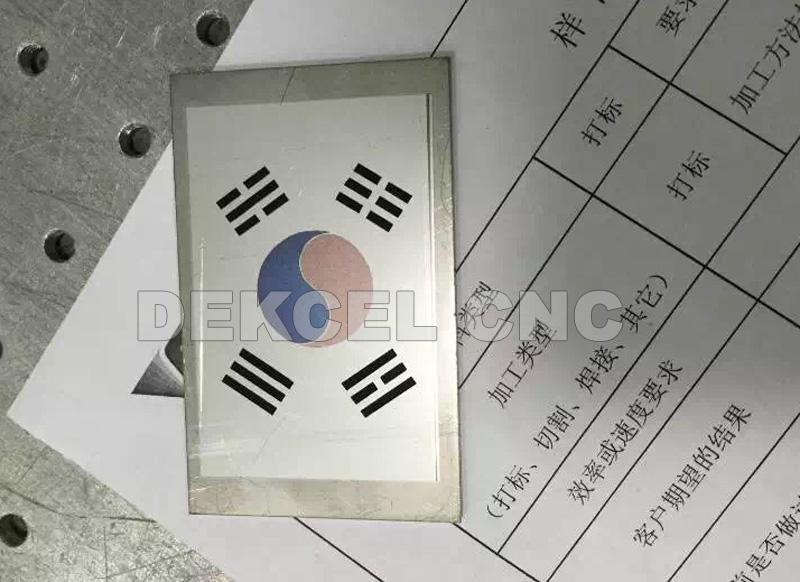

fiber laser marking machine engraving color on ss

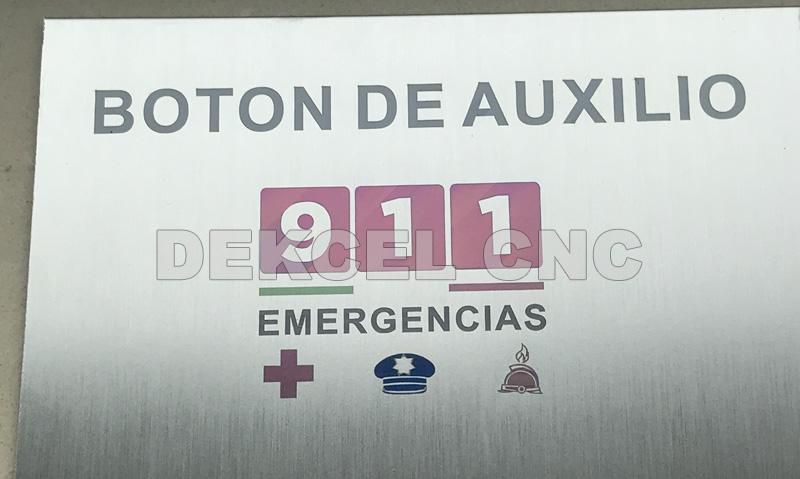

color fiber laser engraving machine
