7.5KW Water Cooling Spindle Servo Motor Granite Stone Engraving and Carving Router Machine

You are here: Home » CNC Router » Stone Engraving Machine » 7.5KW Water Cooling Spindle Servo Motor Granite Stone Engraving and Carving Router Machine

Share to:

7.5KW Water Cooling Spindle Servo Motor Granite Stone Engraving and Carving Router Machine

Dekcel 7.5kw water cooling spindle granite marble engraving cnc router machine is equipped with Nc studio control system,servo driver and motor, suitable for heavy stone engraving and cutting,marble granite,copper, aluminum ect other soft metal cutting,such as copper,aluminum cutting.

Availability:

Quantity:



Inquire

Model:
DEK-1212S
Brand:
DEKCEL CNC
Code:
142

Product Description

7.5KW Water Cooling Spindle Servo Motor Granite Stone Engraving and Carving Router Machine

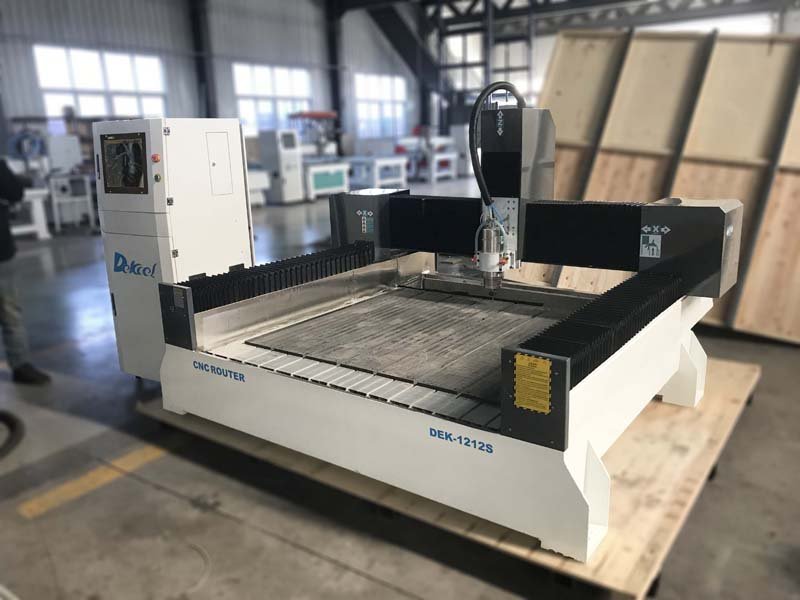

7.5kw granite stone carving engraving router with servo motor

Optional Parts for Stone Carving Machine:

1. Machine Working Size : DEK-00609S,DEK-1212S,DEK-2513S,DEK-3015S

2. Bigger or smaller power spindles (4.5KW,5.5KW,7.5KW ect )

3. High-grade cooling system (chiller, it has alarming system)

4. double-head or more heads

5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc)

6. servo motors (China brand or Japan brand)

8. Auto tool change system

9. NC-studio or DSP controller

Granite Stone Engraving Machine Video

7.5kw Granite Stone Carving Router Machine Features

1.About Lathe bed : To burden very heavy stone, our 7.5KW stone carving machine adopt welding bed use 10 mm steel , After hundred times special vibrate experiments,we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technical, we provide our machines good stability, longer life and amazing accuracy rate.

2. About spindle: Stone engraving Spindle use Constant power 5.5kw/7.5kw water cooling spindle to ensure the high intensity and precision of stone engraving .The water cooling spindle adopt water cycle to cooling the spindle ,so the cooling effect is very good. Almost no noise, long life.

3. About transmission: For the total machine,we adopt the world famous rail and guide manufacturer Taiwan Hiwin square rails, self-lubricating sliding block. This ensures equal force in all directions and accuracy and strength of the machine. Z axis adopts original TBI ball screw imported from Taiwan and X Y axis adopt high precision gear transmission,high precision, speed and strength.

4. Leadshine servo drive and motor:

a: Won't lose step when it work,guarantee the positional accuracy of the motor.

b: Speed performance increased about 30%, improve the equipment speed heavily.

c: Motor heat fell down 30%, prolong the life time of the motor. V ibration phenomenon significantly reduced, motor run more smoothly.

d: Adopted the current control system technology, save power consumption.

Parameters of 7.5kw Stone Engraving Machine:

Items		Parameters
Working area(mm)	X	1200mm
	Y	1200mm
	Z	300mm ( can be customized the Z axis height )
Table Structure	Table Surface	2 mm stainless steel T-slot table
Transmission system	X	Gear Rack from Taiwan
	Y	Gear Rack from Taiwan
	Z	Ballscrew from Taiwan
Lead rail system	X,Y,Z	Taiwan HIWIN/PMI/ABBA Linear square guide rail
Spindle	Power	7.5 kw
	Rotating Speed	0-24000 rpm
	Cooling Type	Water-cooling
	Collet diameter	3.175/4/6/12.7mm
About drive systems	X,Y,Z	Yaskawa / Leadshine servo motor
About drive systems	Servo motor and driver	stepping motor and driver for option
Dust collector system		option
Tool sensor		Option
Control System		Ncstudio control system [ DSP is optional ]
Compatible file formats		G code ; .u00 ; .mmg ; *.plt .
Compatible CAD/CAM Softwares		Ucancam V8 / Type3 / Artcam /
Working Voltage		AC380V,3ph, 50Hz
Precision		0.005mm
Max speed		26.0m/min
Max engraving speed		18.0m/min
Max feeding height		200mm
Work-holding devices		by fixture
Interface type		USB
Warranty guarantee		One-year after-sale services

Note:All the working area and specifications can be customized according to your requests.

Details Show of 7.5kw Spindle Granite Engraving Router Machine

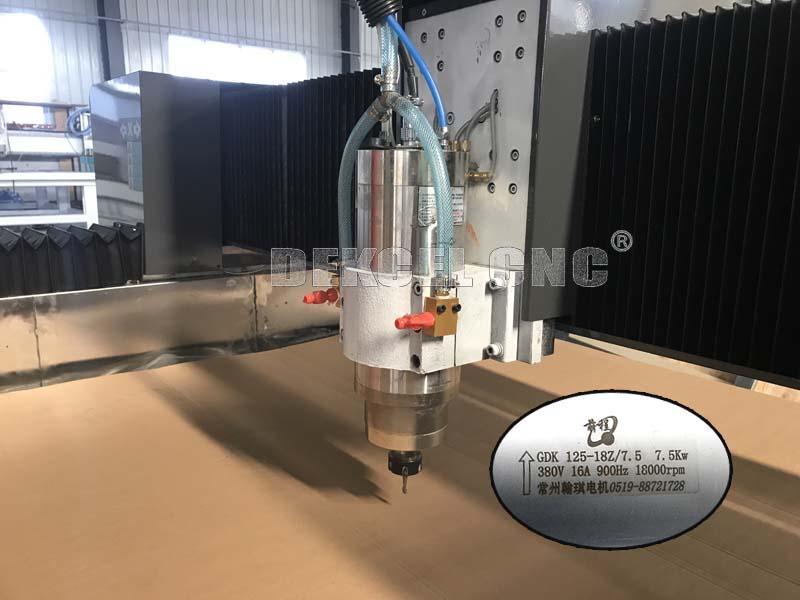

7.5kw water cooling spindle for granite stone carving cnc router

7.5kw water cooling spindle for granite stone carving cnc router.jpg

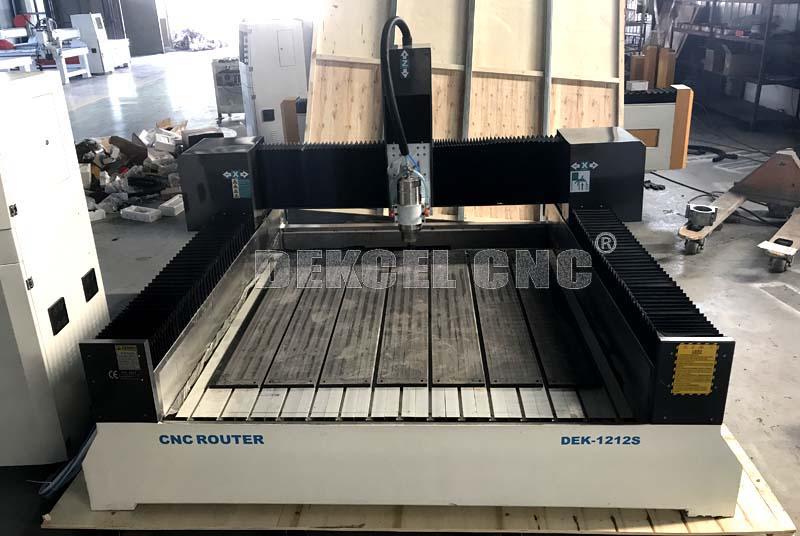

Heavy duty body with stainless steel cover for carving and reliefing table

Heavy duty body with stainless steel cover for carving and reliefing table.jpg

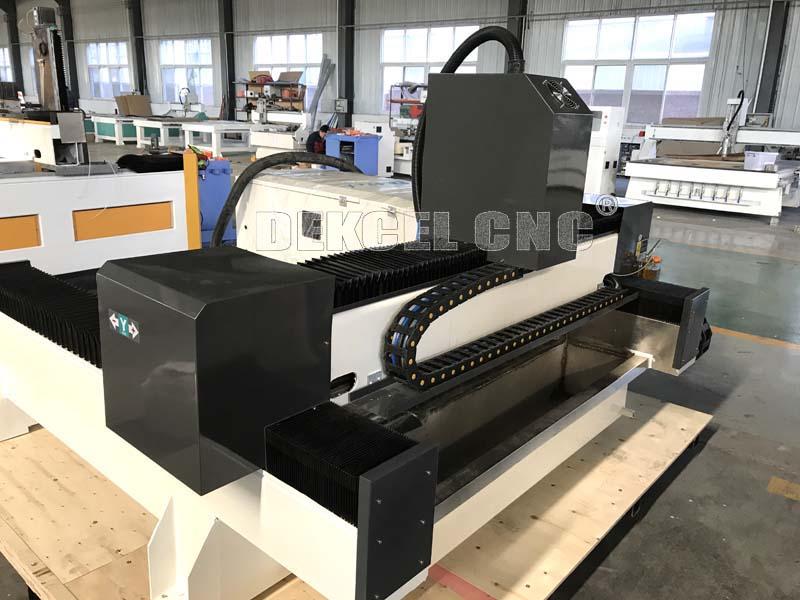

stailess steel water tank whcih prevent from corrosion

stailess steel water tank whcih prevent from corrosion.jpg

Leadshine sevor motor and weihong controller for stone engraving rouiter

Leadshine sevor motor and weihong controller for stone engraving rouiter.jpg

lubrication system for 7.5kw stone carving router machine

lubrication system for 7.5kw stone carving router machine.jpg

7.5kw Servo Motor Stone Engraving Machine Applications:

Stone carving machine can meet the requirements of personalized home outfit, tooling design, can be used as a decoration company, stone industry, advanced processing equipment, carving stone industry is suitable for marble, granite, jade, stone, black stone and other stone material, which can realize 3D relief, bottom tip carving, flat, line carve, pour the side carving, drilling, etc., due to the machine with complete functions and so can be used for machining of wood, plastic, glass, ceramic, metal, etc.

7.5kw granite marble stone engraving sample.jpg

7.5kw stone engraving machine servo motor stone carving machine 7.5kw spindle stone engraving granite engraving with 7.5kw spindle stone router with 7.5kw spindle servo stone engraving machine water cooling spindle engraving router granite stone carving
