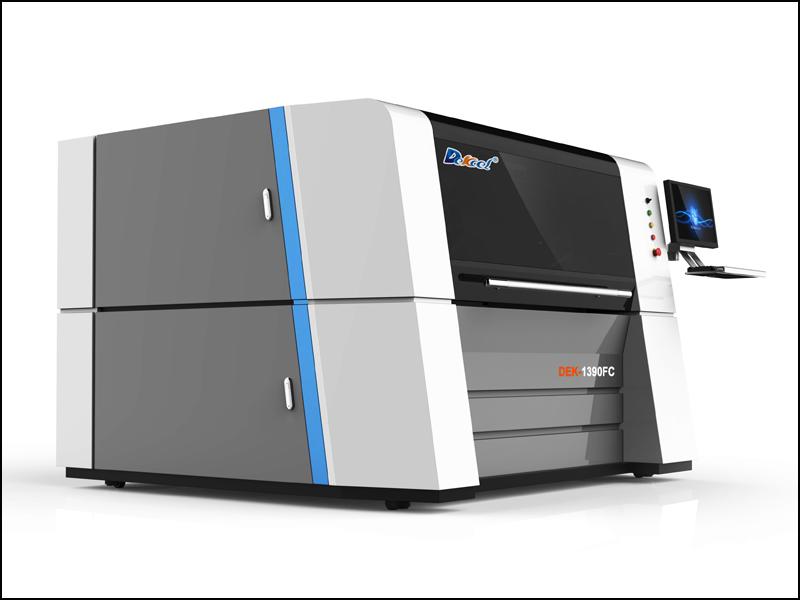

High precision stainless steel carbon steel fiber laser cutting machine



Fiber laser cutting machine features

Fiber laser cutting machine advantage:

1,The gantry uses aerospace standard manufacture aviation aluminum, which has good toughness, weight light, anti-corrosion, anti-oxidation, low density and greatly improved processing speed. Fiber laser cutting machine gantry is  extruded with a 4300 ton press.After aging treatment, the hardness can reach T6, which is the strongest hardness of all beams.

2,Safe and pollution-free, fully enclosed design, the observation window adopts European CE standard protective glass, and the cutting produces internal dust filtering treatment, marking discharge and no pollution.The smoke generate when the machine working, will internal filtration treatment,standard discharge, no pollution.

3,Double rail double drive design,in order to prevent cutting linear deformation caused by the Y axis screw bending.there are two guide rails,double drive screw to ensures the straightness of fiber laser cutting machine during the cutting operation.

4,No needs manual operation,adjust focus lens automatically.software adjusts the focusing lens, and control the height to upper and lower, so as to achieve different thickness metal sheet automatic perforation cutting.

The software memorizes different sheet focal lengths, and the operation is simpler, which is ten times faster than manual operation,

5,Long lifetime of laser cutting head, collimating lens and focusing lens double water cooling,which can effectively reduce the temperature of the cutting head and improve the life of the cutting head.

6,High transmission and precision,the fiber laser cutting machine positioning accuracy can be 0.008 mm and the cutting speed is 0.5 g, also the working life more over than 10 years.

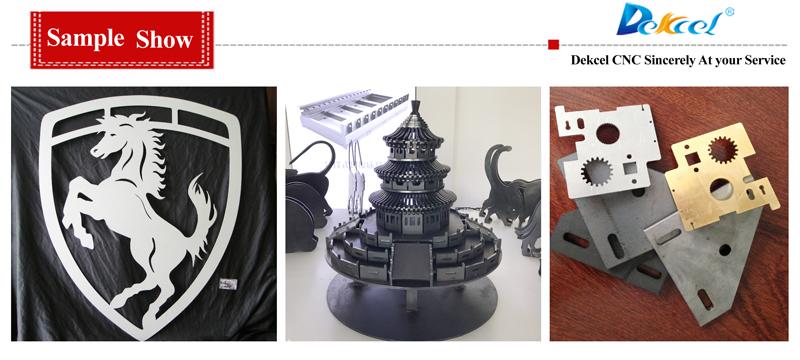

Applicable materials:

Fiber laser cuttng machine laser power 500W-3000W, can option Raycus generator and Imported IPG generator ,dedicated to cutting carbon steel plate, stainless steel plate, galvanized plate, electrolytic plate, aluminum alloy, brass and other non-ferrous materials.

Industry application:

The fiber laser cutting machine mainly use in mechanical or microelectronics industry, the product which requires extremely high precision. Our DEK-6040F and DEK-1390F can handle materials accurately. This is why these models are widely used in glasses, electronics and other industries.
