China PVC PE Vinyl Fabric Oscillating Knife Cutter Plotter Machine

Name: China PVC PE Vinyl Fabric Oscillating Knife Cutter Plotter Machine
Brand: China DEKCEL CNC
Rating: 5.0 (42 reviews)

China DEKCEL CNC digital cutter machine with knife blade cutting has no burning and totally environmentally. Machine can be equipped with plotting pen, oscillating cutting tool, creasing tool,kiss-cutting tool and drag knife tool to meet customers' different requirements.

Availability:

Quantity:



Inquire

Model:
DEK-1311M
Brand:
China DEKCEL CNC
Code:
181

Product Description

China PVC PE vinyl Fabric Oscillating Knife Cutter Plotter Machine

China DEKCEL CNC vinyl oscillating knife cutter machine has the advantages of high working efficiency, support for multiple input methods, replacement of punching machines, so that our products are recognized by our customers.

The characteristics of the vinyl oscillating knife cutter machine

1. Free drawing and cutting, saving raw materials;

2. The anti-collision and the built-in auto-sensing devices ensure the security of the worker .

3. High precision, fast speed and stable operation;

4, cutting without dust, green and environmental protection;

5, software compatibility is good;
6. Diversified materials can be processed;

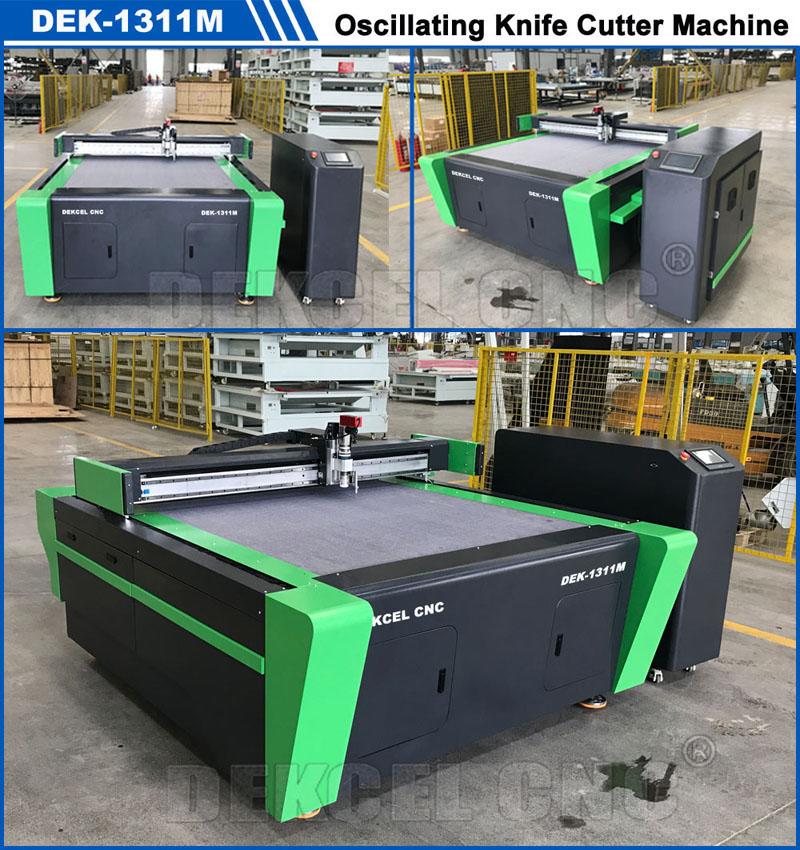

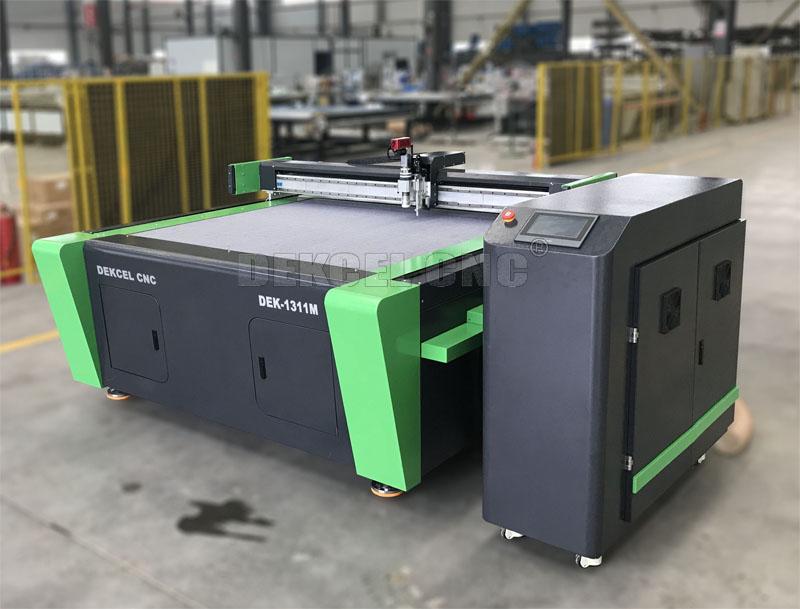

china 1311 oscillating knife cutter plotter machine

Technology Parameters of oscillating knife cutting machine Plotter

Model	DEK-1311M	DEK-1625M	DEK-1630M
Cutting size	1300mm* 1100mm	1600mm*2500mm	1600mm*3000mm
Table size	1800mm*2300mm	2200mm*4500mm	3850mm*5000mm
Customized length range	800mm ~5000mm
Customized width range	800mm ~2600mm
Cutting speed	0mm/s ~ 1200mm/s
Cutting accuracy	0.15MM
Drive motor	Japanese YASKAWA servo motor
Oscillating cutter	oscillation velocity 18000/Min RPM 80W motor
Material fixed method	Vacuum absorb
Data format	DXF,PLT,AI,HPGL
Air pressure, flow	0.55MPa 100L/min
Vacuum pump power	7.5KW/9KW/11KW
Working voltage	AC220V±10%/50Hz-60Hz
Vacuum pump power	AC380V±10%/Hz-60Hz
Option tool	EOT,POT,drag tool,creasing wheel,v-cut tool ,punching tool, drawing pen,CCD mark visual system ect

Applicable Industry of Oscillating Knife Cutting machine

Vinyl material,fabric,leather,PE film,PVC board,carpet, garment cutting, cloth cutting, car interior cutting, foot pad cutting, luggage making, packaging material cutting, soundproofing materials, composite product materials, etc.

Tranparent PVC Vinyl Curtain Cutting

pvc plastic vinyl curtains oscillating cutter plotter machine

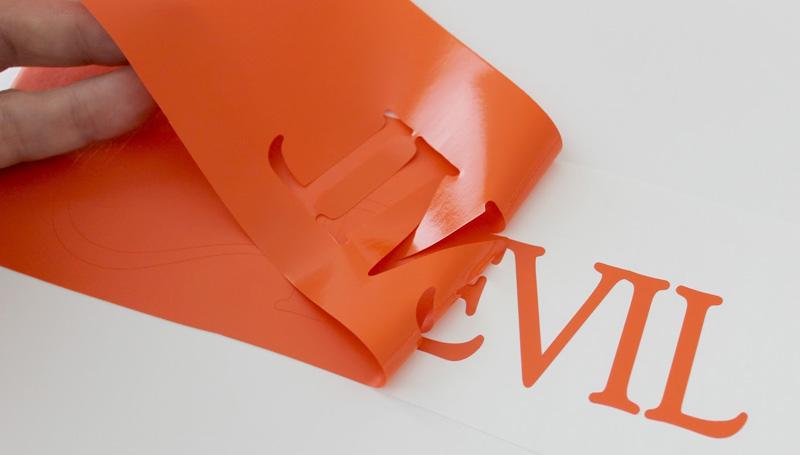

Vinyl material cut by kiss cutting tool or EOT tool

china oscillating knife plotter cutting vinyl

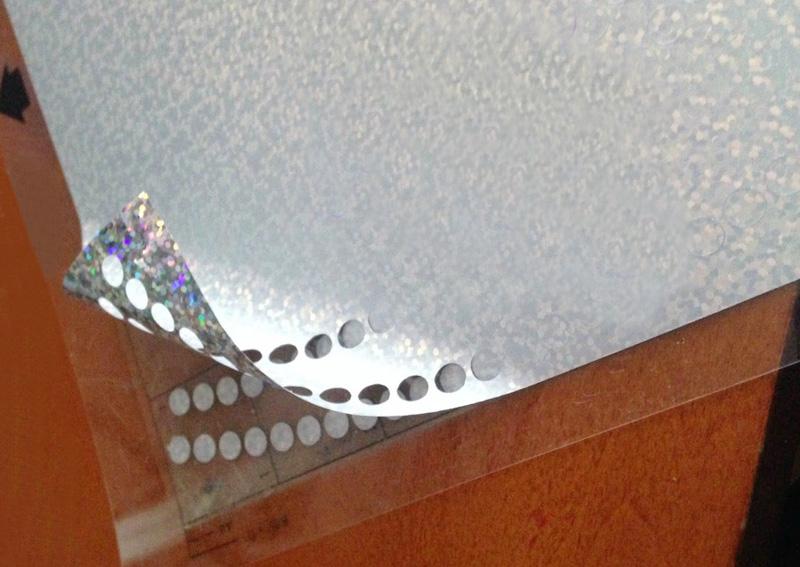

Kiss-cutting for Vinyl

adhensive vinyl oscillating cutter machine

Vinyl oscillating cutter machine China oscillating cutter plotter Vinyl oscillating knife cutter Pvc vunyl oscillating cutter PE vinyl cutter plotter China oscillating knife cutter Pvc oscillating cutter machine
