Carbide Rod Drilling Tool Fiber Metal Laser Marking Machine

Name: Carbide Rod Drilling Tool Fiber Metal Laser Marking Machine
Brand: DEKCEL CNC
Rating: 5.0 (67 reviews)

Dekcel cnc carbide tool laser marking machine with beautiful design, simple operation, no supplies, low depreciation costs Long-term operation without failure, maintenance-free, can fully meet the needs of continuous industrial work.

Quantity:



Inquire

Model:
DEK-30W
Brand:
DEKCEL CNC
Code:
137

Product Description

Carbide Rod Drilling Tool Fiber Metal Laser Marking Machine

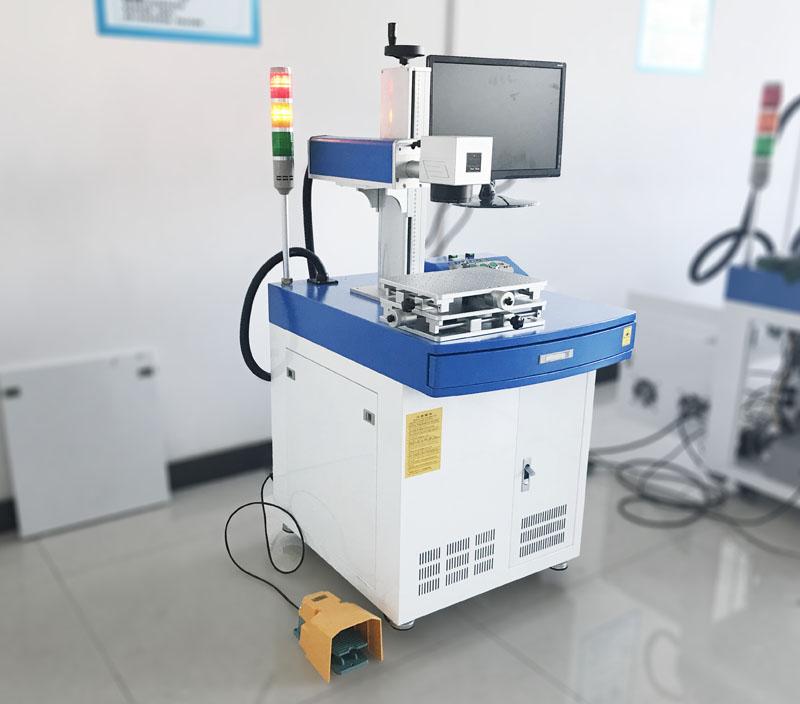

Dekcel drilling tool carbide metal laser marking machine.jpg

Dekcel new model of carbide rod tool marking machine with long life of laser tube, low cost and small size; Suitable for harsh environments; With good quality laser beam; The control software is compatible with Auto CAD,CorelDRAW, Photoshop etc. Can automatically process letter, symbol, picture, barcode, QR code etc. Support PLT, PCX, DXF, BMP, JPG etc. format files; Support TTF font.

Carbide Tool Laser Marking Machine Video

Product Description of Carbide Tool Marking Machine

1. Air cooling, compact machine,output beam quality, high reliability, no consumables,Long life working.

2. Our metal tool laser marking machine with Import Germany fiber laser / Raycus laser generator, most reliable structure, small size, power consumption is small.

3. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed without distortion.

4. Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition

5. Machine Z axis lift system with motor,you can automatically find the focus with the electric button.

6. Double red laser position indicator,very easy find the marking focus

Technical Parameter of Tool Fiber Laser Marking Machine

Model parameters	DEK-10W	DEK-20W	DEK-30W	DEK-50W
Laser power	10w	20w	30w	50w
Laser wavelength	1060nm	1060nm	1060nm	1060nm
Beam quality	m2<1.5	m2<1.5	m2<1.5	m2<1.5
Laser repetition frequency	≤100KHz	≤100KHz	≤100KHz	≤100KHz
Standard range of standards	110*110mm	110*110mm	110*110mm	110*110mm
Matching standard range	150*150mm	150*150mm	150*150mm	150*150mm
Carving depth	≤1.2mm	≤1.2mm	≤1.2mm	≤1.2mm
Engraving line speed	≤12000mm/s	≤12000mm/s	≤12000mm/s	≤12000mm/s
Minimum line width	0.01mm	0.01mm	0.01mm	0.01mm
Minimum character	0.05mm	0.05mm	0.05mm	0.05mm
Repeat accuracy	±0.001mm	±0.001mm	±0.001mm	±0.001mm
Power consumption of the whole machine	≤500W	≤500W	≤500W	≤500W
Maintenance time for the whole machine	100000h	100000h	100000h	100000h
electricity demand	200v/50-60Hz	200v/50-60Hz	200v/50-60Hz	200v/50-60Hz
cooling method	Air-cooled	Air-cooled	Air-cooled	Air-cooled

Details Show of Fiber Laser Marking Machine

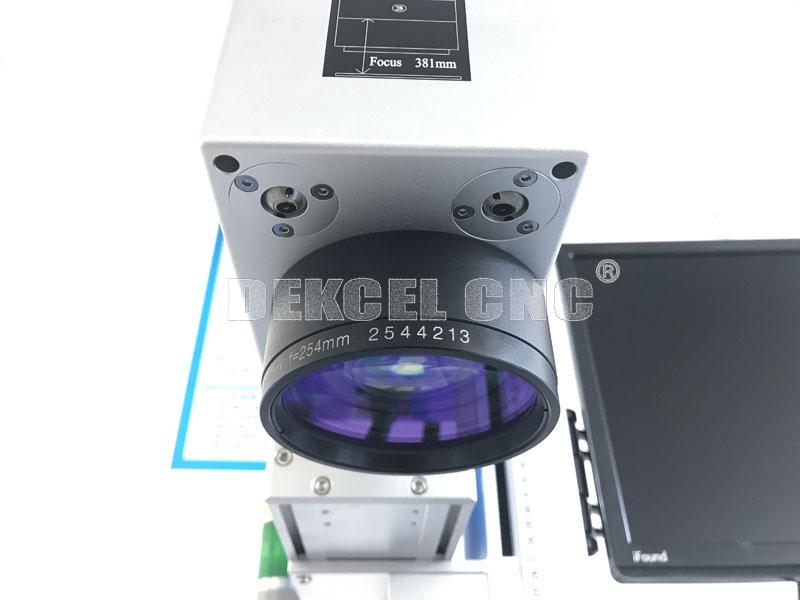

1. Double red laser indicator for positioning

Double red laser device for positioning.jpg

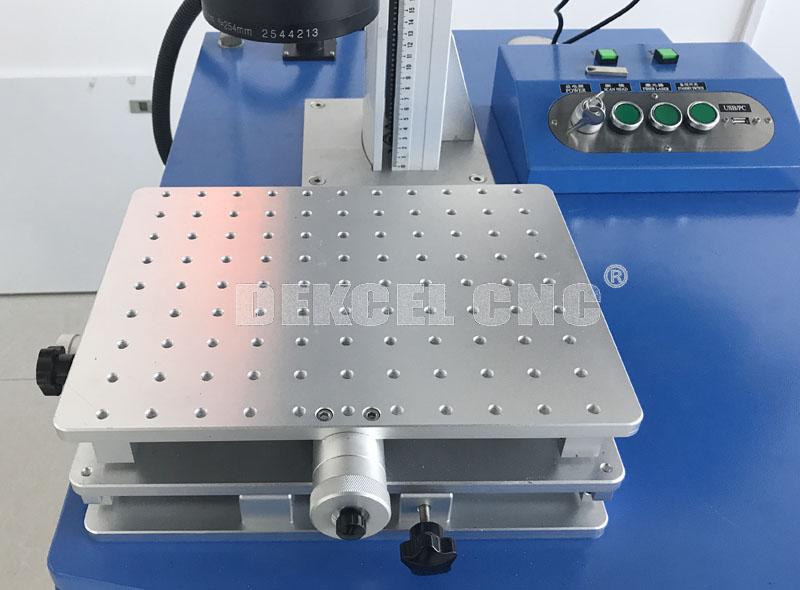

2D dimension laser marking aluminium table

2D dimension laser marking aluminium table.jpg

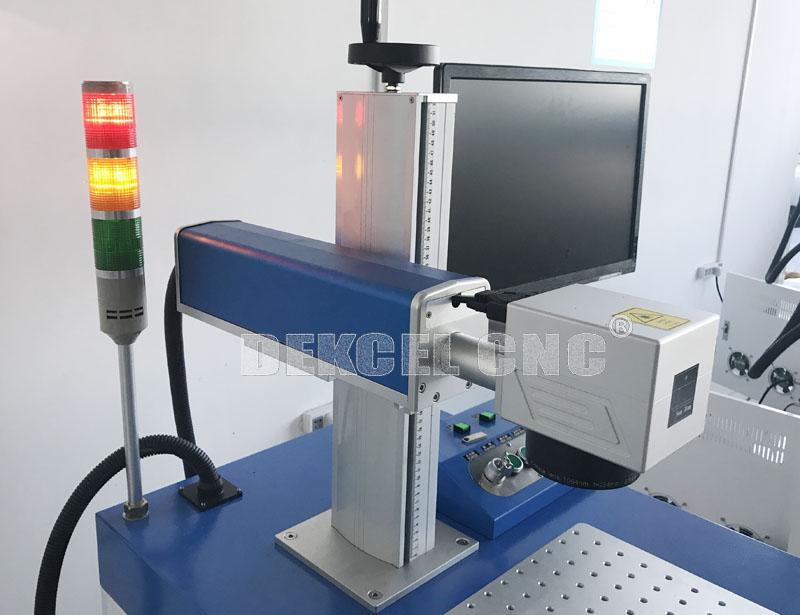

3. LED warning light for laser marking machine

LED warning light for laser marking machine.jpg

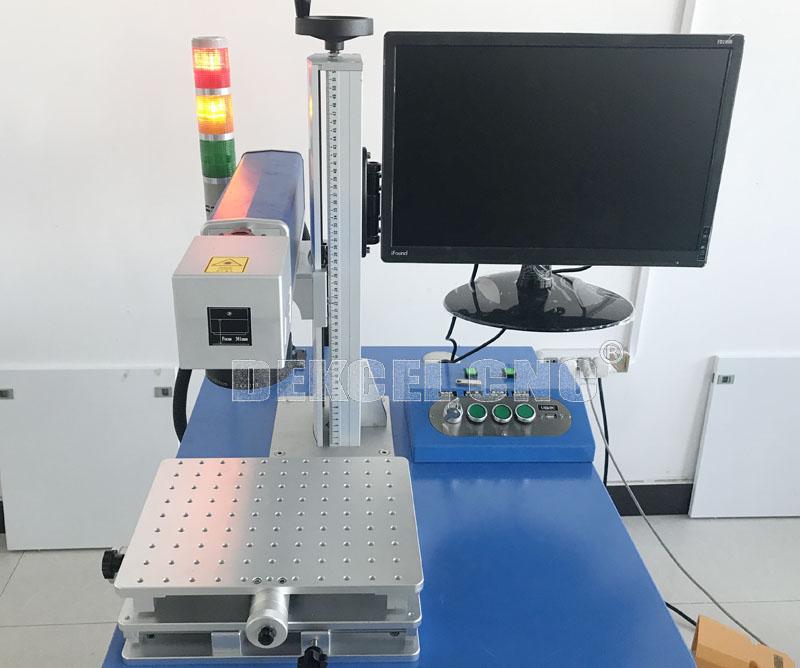

4. Z axis up and down with motor for finding the marking focus

Z axis up and down with motor for finding the marking focus.jpg

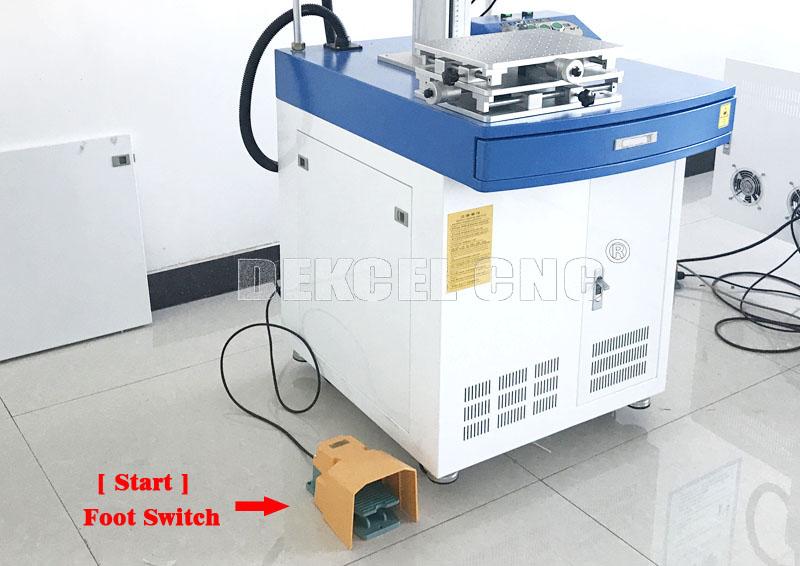

5. Foot switch for laser marking start to mark and engraving on metal

Foot switch for laser marking start to mark and engraving on metal.jpg

Application of Metal Tool Fiber Laser Marking Machine:

The machine can be used for components of automobile and motorcycle, astronautic apparatuses, chips of integrate circuit electronics, packages of food, drink and cigarettes, keys of mobile phone, batteries, electric apparatuses, fittings and peripheral equipments of computer, ironware tools, stainless steel wares, electric products, communication products, medical devices, sanitation, cleaning and bathing wares, clocks and watches, jewelries, industrial bearings, electric wire and cable, garment.

cardbide drilling tool fiber metal laser marking machine.jpg

carbide tool laser marking machine carbide rod laser marking carbide drilling tool marking machine drilling tool laser marking machine carbide tool fiber laser marking metal tool laser marking fiber metal laser marking machine carbide tool marking drilling tool laser marking
