Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-0915S
DEKCEL
087
3D Stone Carving Machine For Sale | CNC Router Stone Engraving Machine Price
3D Stone Carving Machine Working Video
Stone Carving Router Machine Configuration
#5.5KW water cooling spindle
#Multech control system
#Hybrid stepper motors and drivers
#Fuling inverter
#Stainless steel water tank
#X Y axis by gear transmission, Z by Taiwan TBI ball screw
#Taiwan HIWIN rail guide
#Welded machine structure
#T-slot Table
#Soft limited switch and hard limited switch
#Tool Sensor, Filter, Cast steel moter Box
#Standard tool box
Technical parameter
Model | DEK-0915S |
XYZ axis working area | 900*1500*300mm |
Guide rail | Hiwon square guide rail |
Max moving speed | 28000 mm/min |
Max engraving speed | 20000 mm/min |
Max height of material | 200mm |
Resolution | 0.005 mm |
Repeat positioning accuracy | 0.05mm |
command | G code, U00,mmg,plt,eng |
System environment | Windows 2000/ XP |
Working voltage | 380/220/110V |
Control system | Multech control system |
Spindle power | 5.5KW |
Spindle cooling way | Water cooling |
Spindle speed | 0-24000 rpm/min |
Drive type | Stepper motor/servo motor (optional) |
Machine dimension | 2100*1600*1600 (mm) |
Package demension | 2300*1800*1700(mm) |
weight | 1000kg |
Optional accessories | Cylinder rotary attachment/ Italian air-cooled spindle |

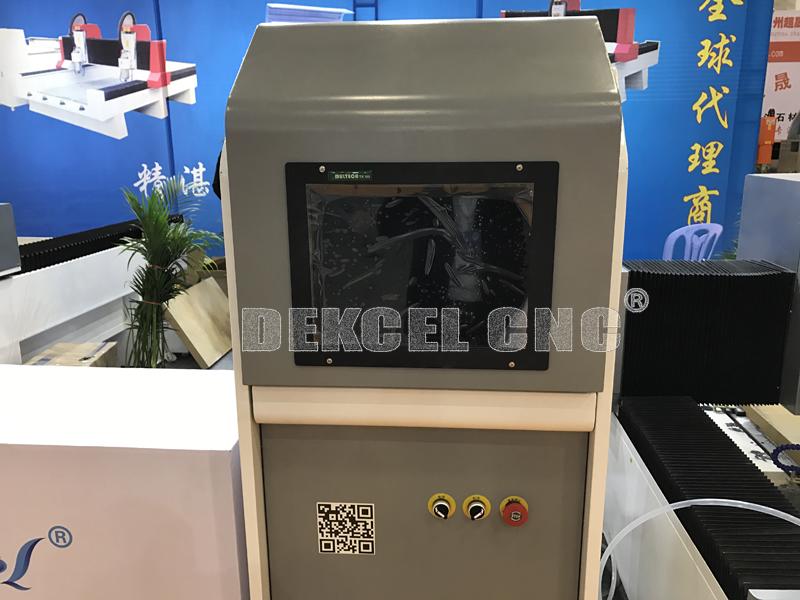

Multech TK160 series control system is based on the industrial motherboard, using 15-inch industrial display, support the mouse and keyboard, easy to operate;

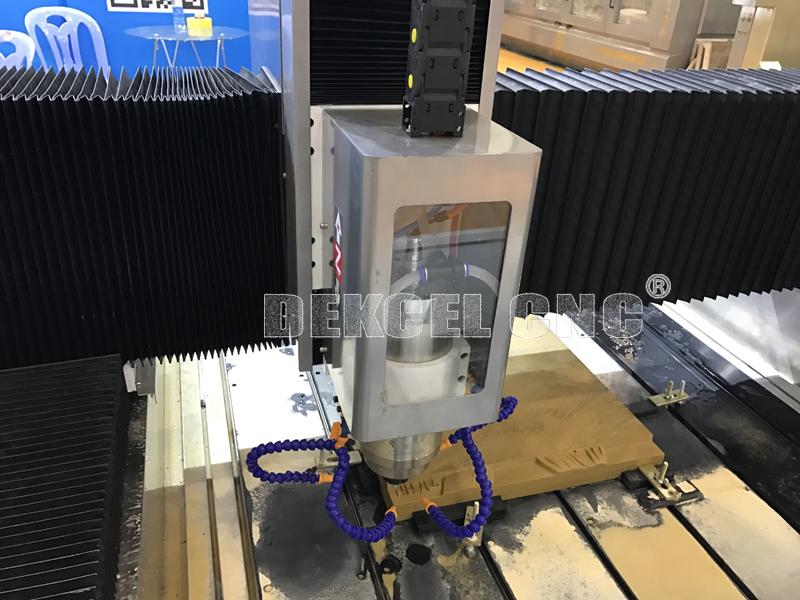

5.5KW water cooling spindle, more powerful.

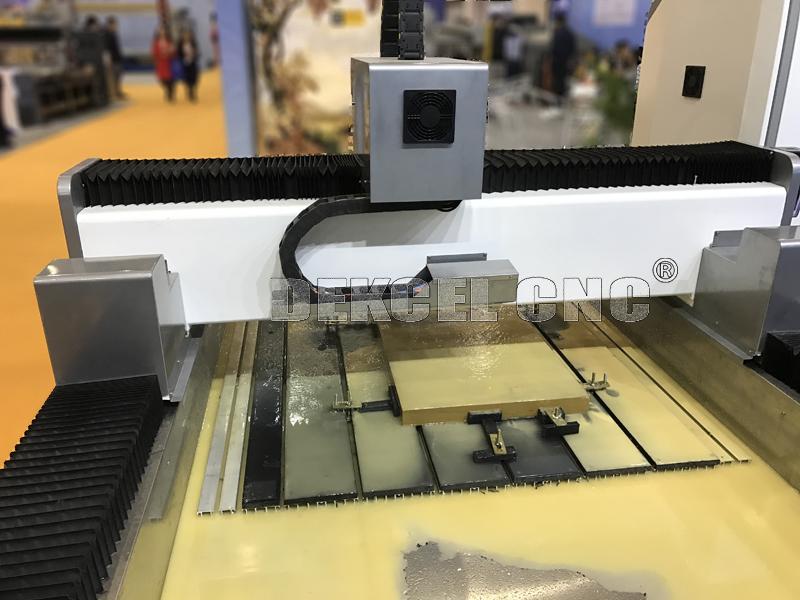

The stone cnc router engraving machine with stainless steel water tank,not easy rust after long time use in water environment.
